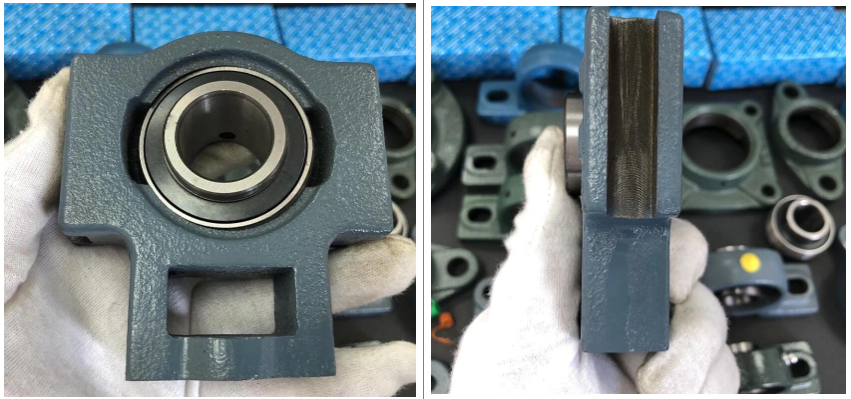

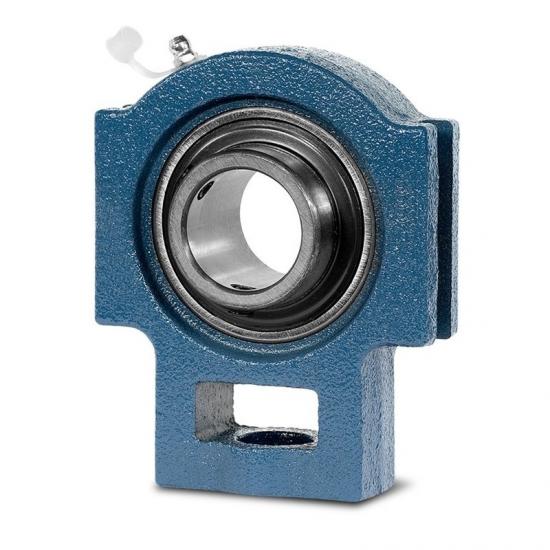

UCT204 20mm Cast Iron Take Up Bearing Unit

UCT204 Cast Iron Bearing With Bearing Material Chrome Steel,The Inner Size Is 20 mm And Will Packed With Chevron SRI-2 And The Weight Is 0.73 kg.

CONTACT NOW down load to pdf

Details

Tags

UCT204 20mm Cast Iron Take Up Bearing Unit Introduction:

Inside Diameter (mm):	20
a (mm):	94
e (mm):	89
i (mm):	16
Bearing No.:	UC 204
Housing No.:	T204
Ring Material:	Chrome Steel
Rolling Element Material:	Chrome Steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Product weight:	0.73 Kg

Cast Iron Bearing Features:
Housing: Gray Cast Iron HT200
Bearing Insert: Chrome Steel
Bearing Seal: Standard Nitrile Rubber protected with Slinger
Slinger: Sheet Steel
Grease Nipple: Carbon Steel - Clear Zinc Plated
Set Screw: Carbon Steel - Oxided Black
Grease: Chevron SRI-2
Working Temperature range: -20°C to +90°C ( -4°F to + 248°F )

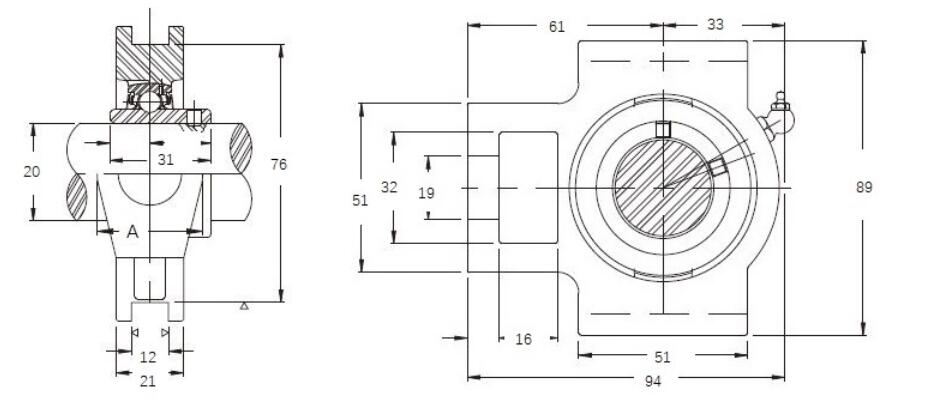

UCT200 Series Take Up Bearing Unit Number:

Unit No.	Shaft	Dimensions (mm)															Weight
	d	N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B	s	kg
UCT201	12	16	10	51	32	19	51	12	76	89	94	32	21	61	31.0	12.7	0.77
UCT202	15	16	10	51	32	19	51	12	76	89	94	32	21	61	31.0	12.7	0.76
UCT203	17	16	10	51	32	19	51	12	76	89	94	32	21	61	31.0	12.7	0.75
UCT204	20	16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	0.73
UCT205	25	16	10	51	32	19	51	12	76	89	97	32	24	62	34.1	14.3	0.80
UCT206	30	16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	1.22
UCT207	35	16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	1.57
UCT208	40	19	16	83	49	29	83	16	102	114	144	49	33	88	49.2	19	2.31
UCT209	45	19	16	83	49	29	83	16	102	117	144	49	35	87	49.2	19	2.34
UCT210	50	19	16	83	49	29	86	16	102	117	149	49	37	90	51.6	19	2.47
UCT211	55	25	19	102	64	35	95	22	130	146	171	64	38	106	55.6	22.2	3.74
UCT212	60	32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	4.58
