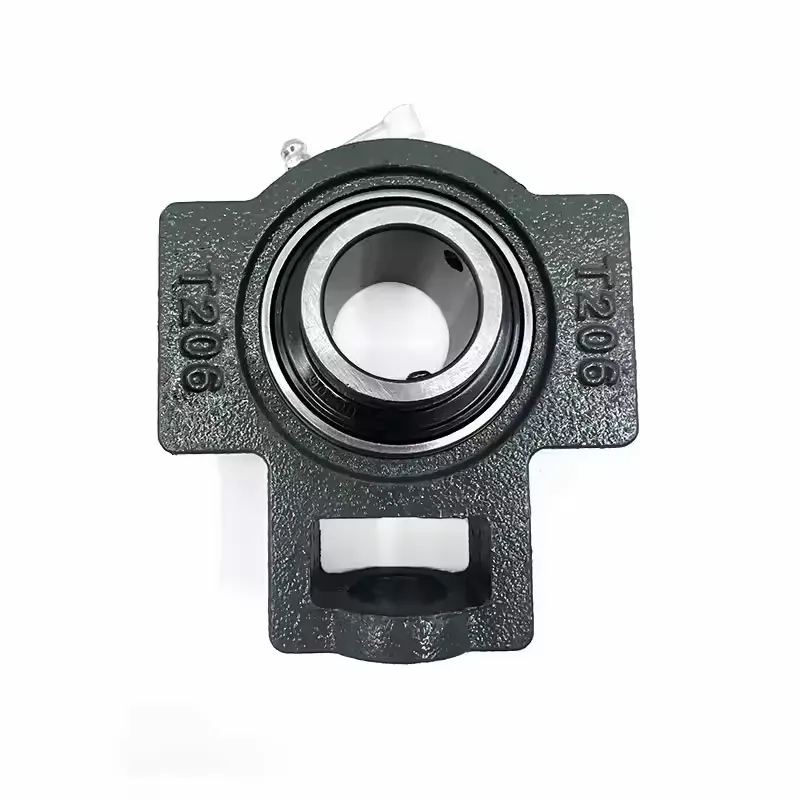

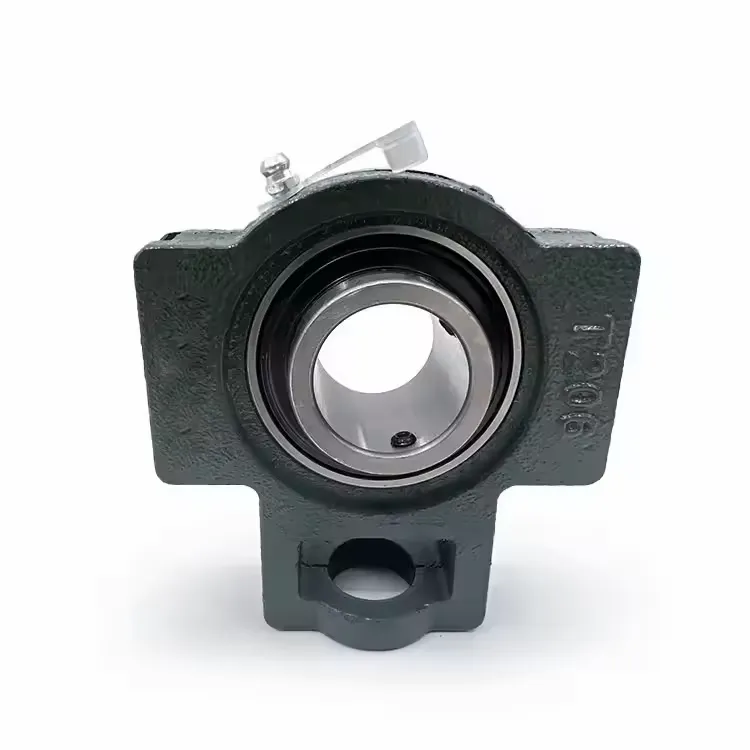

UCT201 UCT Series Cast Iron housing Pillow Block Bearing Unit

Details

Tags

UCT200 Series Pillow Block Bearing UCT201 Agricultural Machinery Bearing





d
12 mm
Bore diameter
H
89 mm
Height
L
94 mm
Length total
≈m
0,77 kg
Weight
A1
12 mm
Width guidance groove

0,2 mm
Upper width guidance groove tolerance

0 mm
Lower width guidance groove tolerance
H1
76 mm
Distance guidance grooves

0 mm
Upper distance guidance groove tolerance

-0,5 mm
Lower distance guidance groove tolerance
N
19 mm
Fixing bore
L1
61 mm
Distance shaft axis
L2
10 mm
Length fixed link
L3
51 mm
Length guidance groove
A
32 mm
Width housing fixing side
N1
16 mm
Width recess
N2
32 mm
Height recess
B
31 mm
Width inner ring
S1
18,3 mm
Distance of raceway to locking collar
T
51 mm
Height housing fixing side
Q
M6
Connection thread for lubrication
A2
21 mm
Width housing
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
