UCP306  Pillow block ball bearing unit
  • UCP306  Pillow block ball bearing unit

UCP306 Pillow block ball bearing unit

ASAHI UCP306 Pillow Block With Bearing Material Chrome Steel/GCr15/Bearing Steel And Housing material Cast Iron HT200/ Ductile Iron Are Used For Agricultural Machinery.

Details

Tags

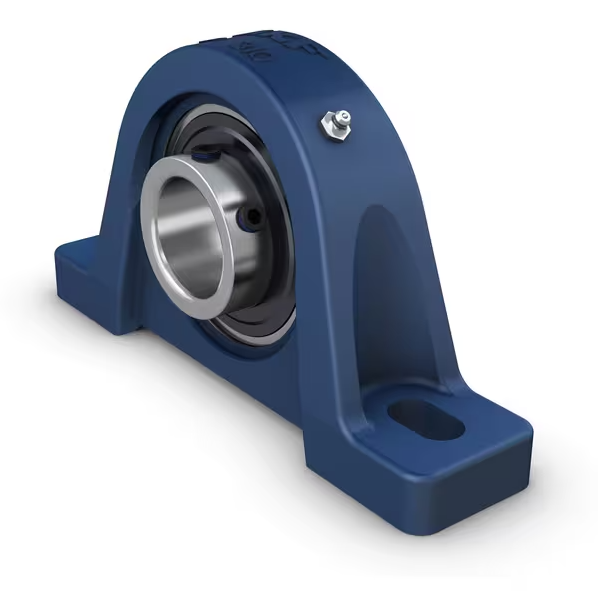

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

Bearing Dimension:

Model Number Insert bearing with housing  UCP306
Own Brand OEM
ID*OD*W(mm) 180x50x43x17mm
Net weight(kg) 1.82kg
Rings Material Chrome Steel/GCr15
Material Material GG25 Grey cast iron
HRC 59-62HRC
Precsion

P0,P6,P5,P4

ABEC-1,ABEC-3,ABEC-5 etc



We Can Produce Many High Precision Bearing House:
China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments. There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).

Bearing Block Types:
1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.
2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.
These bearing housing are with square ,round types
3)Take-up units type - UCT, HCT, and UKT.
These bearing housings are widely used in conveyor chains and conveyor belts.

ASAHI Bearing Can Be Widely Used In:
Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:
1)Agriculture,
2)Light textile,
3)Mining,
4)Food &beverage,
5)Pharmaceutical,
6)Chemical processing,
7)Printing,
8)Dyeing,
9)Various kinds of conveying and rolling devices.

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.
