UCP201-08 1/2'' Pillow Block Bearings

Details

Tags

Pillow block bearings are housing combined with radial insert bearing. Most of the outer spherical bearings are made of a spherical surface The structure of bearing unit are various, and the versatility and interchangeability are good.

Key Features

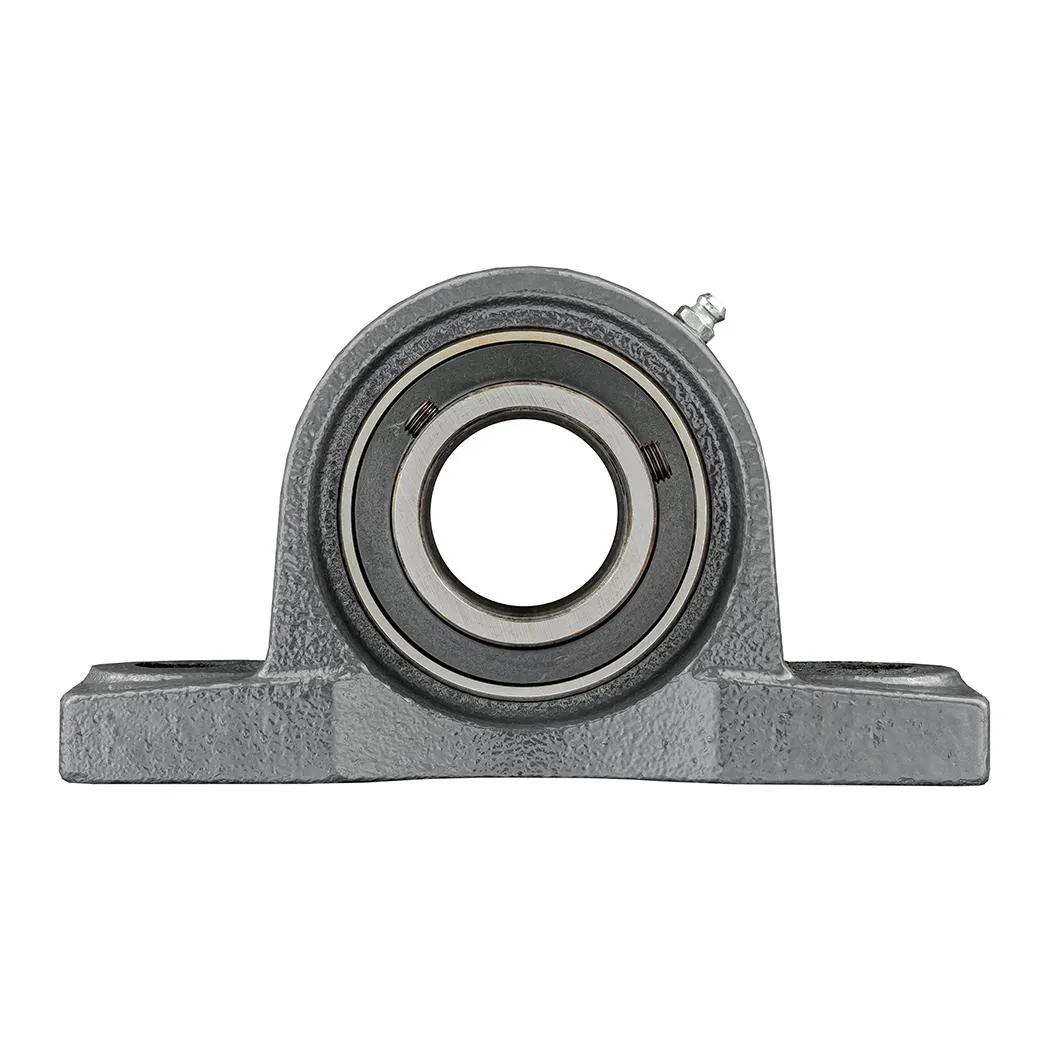

UCP201-8 is a Cast Iron Pillow Block Housing combined with a Chrome Steel Set Screw Insert Ball Bearing. This unit is a standard duty pillow block bearing with a wide inner ring, a standard base to center height and a 45˚ degree grease fitting allowing for re-lubrication of the insert bearing. UCP201-08 Pillow Block Bearing is equipped with two set screws, that are positioned on the extended inner ring of the insert ball bearing, to lock and attach to the shaft. Our Mounted Block Bearing Units have been pre-lubricated with Grease, allowing them to be ready for use upon arrival.

Applications / Industries

UCP201-8 Pillow Block Bearings are used in a variety of applications including Construction Equipment, Pumps, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor Systems, Fan Assemblies, Agricultural Machinery, HVAC Systems, Feed Mills, among other Industrial Applications.

Below Here is Mounted Bearing Units No. For Your Reference:

Unit No.	Shaft Dia		Dimensions (mm)											Bolt Size (mm)	Weight
	d		H	L	J	A	N	N1	H1	Ho	B	S	A3		(kg)
	(in)	(mm)	H	L	J	A	N	N1	H1	Ho	B	S	A3		(kg)
UCWP201		12	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.72
UCWP202		15	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.66
UCWP203		17	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.66
UCP201		12	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.76
UCP201-8	1/2		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.76
UCP202		15	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP202-9	9/16		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP202-10	5/8		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP203		17	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.72
UCP203-11	11/16		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.72
UCP204		20	33.3	127	95	38	13	19	14	64	31	12.7	46.4	M10	0.70
UCP204-12	3/4		33.3	127	95	38	13	19	14	64	31	12.7	46.4	M10	0.70
UCP205		25	36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-14	7/8		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-15	15/16		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-16	1		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP206		30	42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25
UCP206-17	1-1/16		42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25
UCP206-19	1-3/16		42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25
