UCFL215-45
  • UCFL215-45

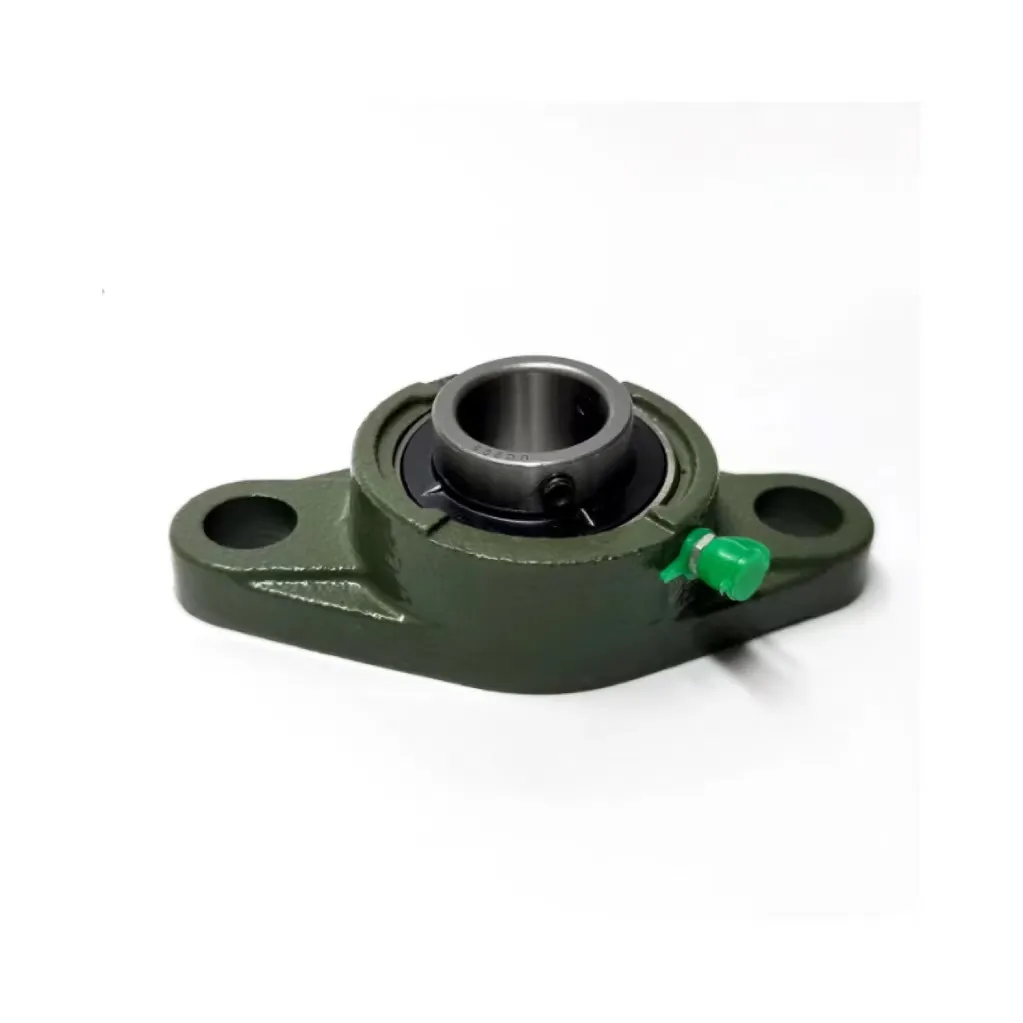

UCFL218-56 3-1/2" Flanged Housing Bearing Unit

down load to pdf

Details

Tags

d
88,9 mm
 Bore diameter
L
205 mm
 Flange width
H
320 mm
 Height flange
U
96,3 mm
 Total height unit
Cr
102.000 N
 Basic dynamic load rating, radial
C0r
72.000 N
 Basic static load rating, radial
Cur
2.700 N
 Fatigue load limit, radial
≈m
10,5 kg
 Weight

J
265 mm
 Distance fixing bore
N
25 mm
 Fixing bore
n
2
 Number of screwing holes
A
68 mm
 Height housing
A1
26 mm
 Thickness of flange
A2
40 mm
 Distance raceway
B
96 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
