UCFL215-45
  • UCFL215-45

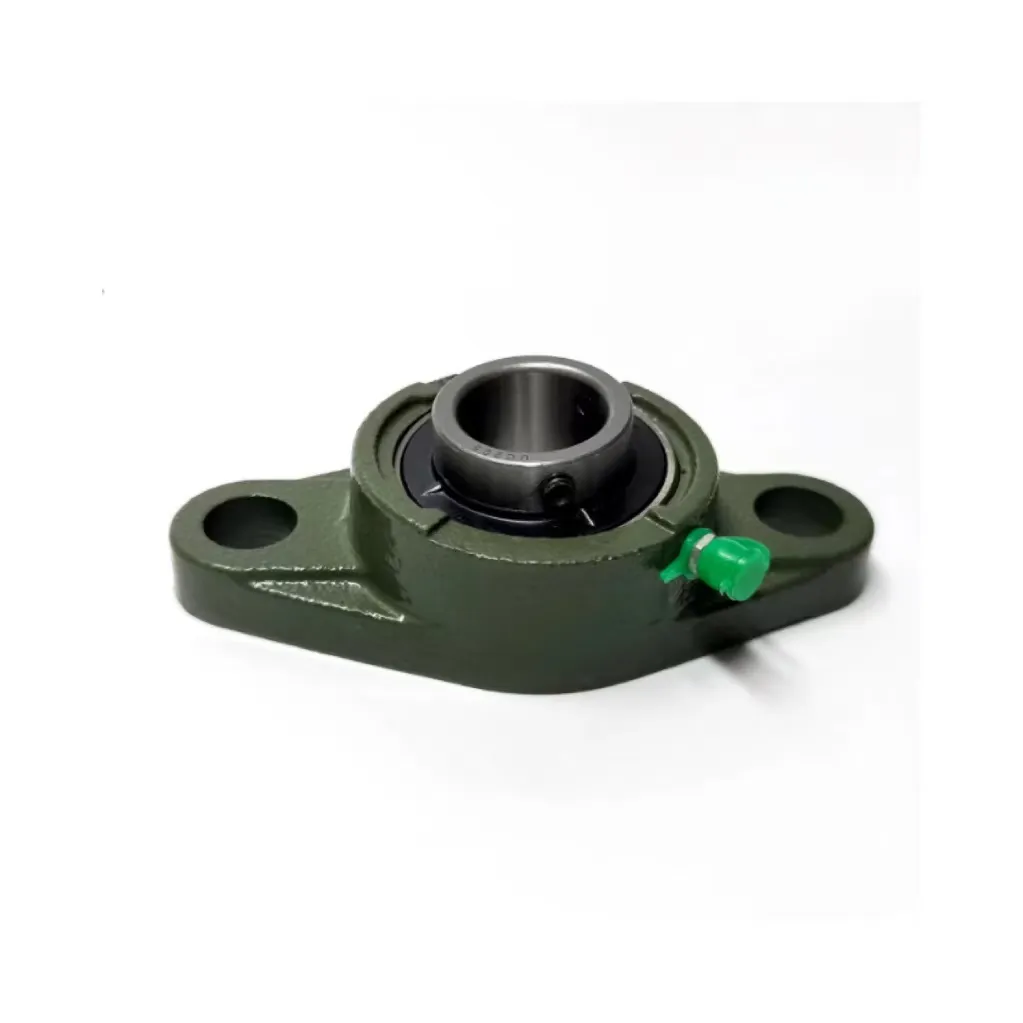

UCFL217-53 3-5/16" Flanged Housing Bearing Unit

down load to pdf

Details

Tags

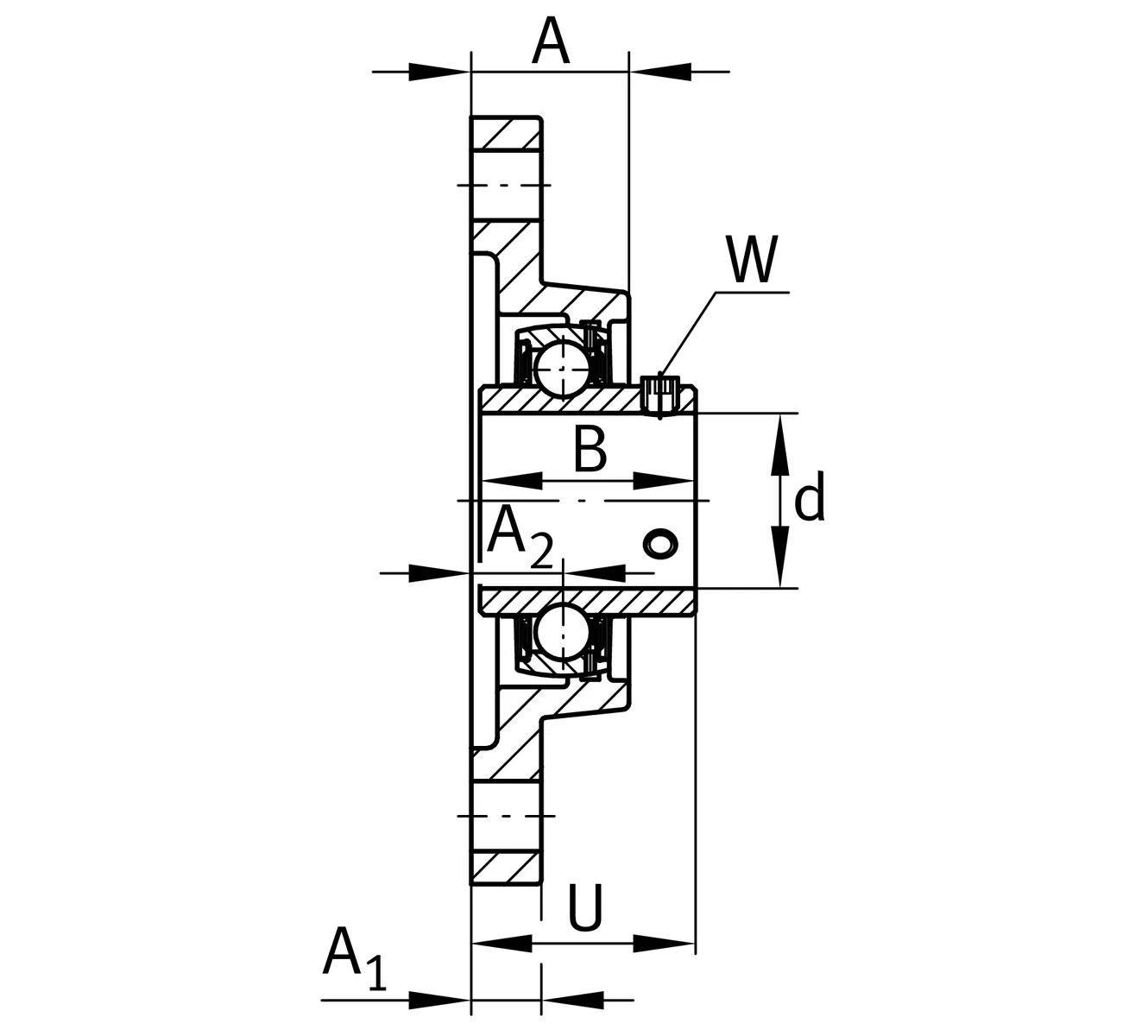

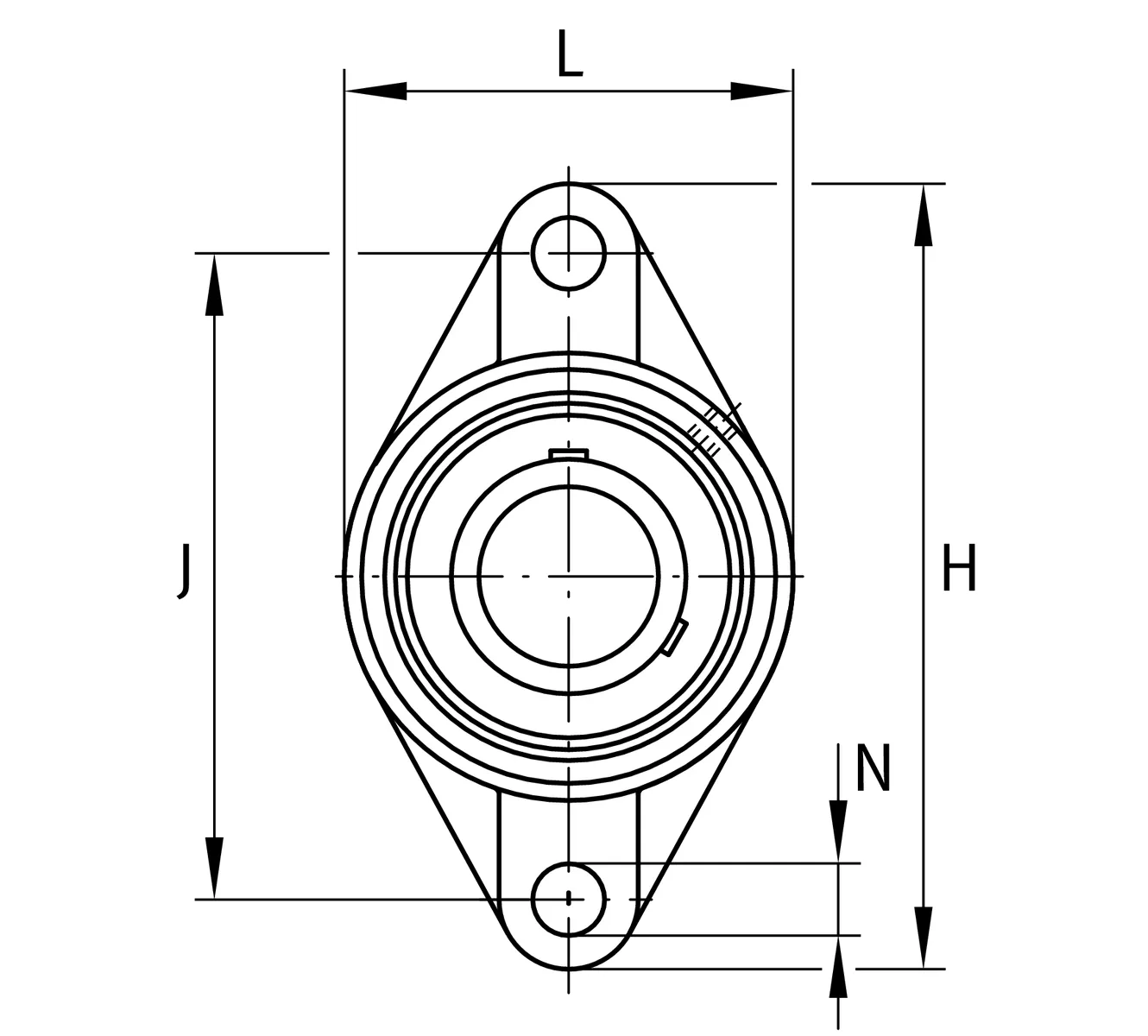

d
84.137 mm
 Bore diameter
L
190 mm
 Flange width
H
305 mm
 Height flange
U
87.6 mm
 Total height unit
Cr
88,000 N
 Basic dynamic load rating, radial
C0r
64,000 N
 Basic static load rating, radial
Cur
2,490 N
 Fatigue load limit, radial
≈m
8.7 kg
 Weight

J
248 mm
 Distance fixing bore
N
25 mm
 Fixing bore
n
2
 Number of screwing holes
A
63 mm
 Height housing
A1
26 mm
 Thickness of flange
A2
36 mm
 Distance raceway
B
85.7 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
