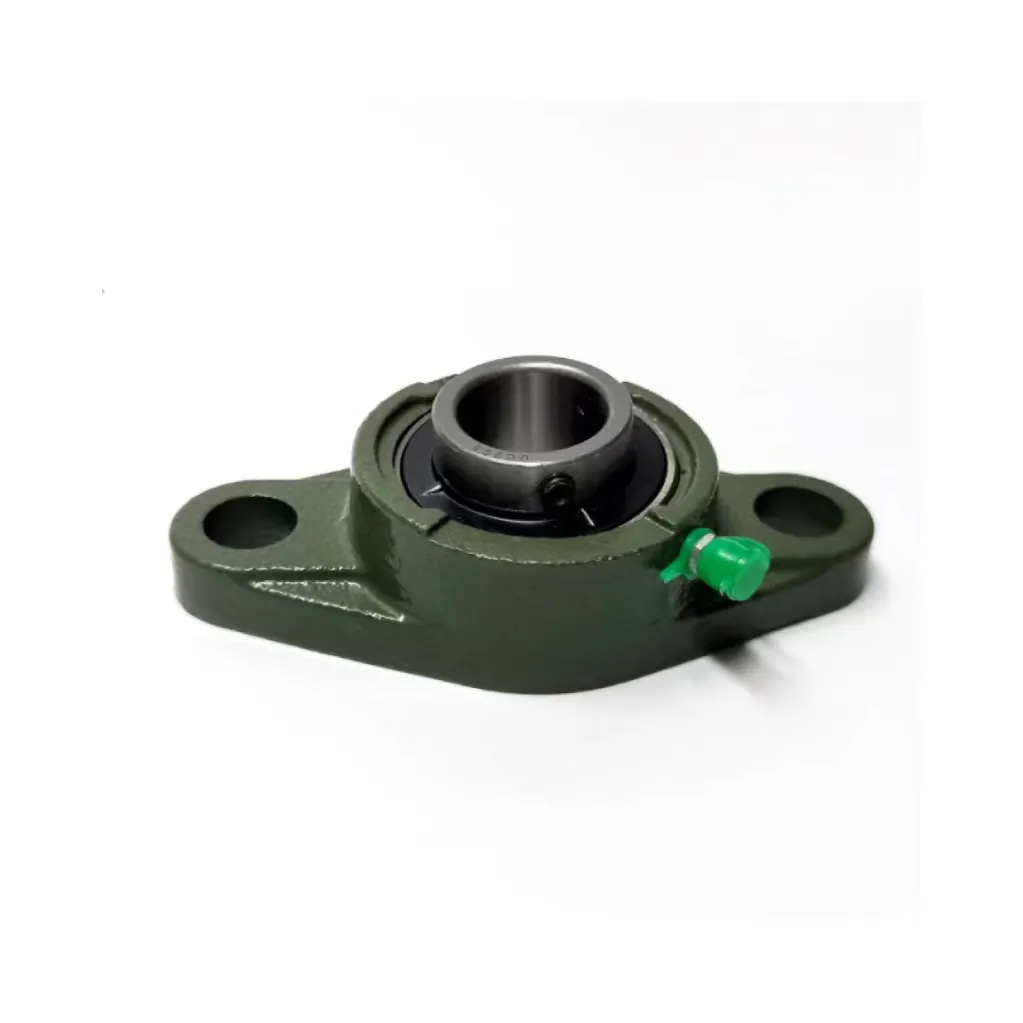

UCFL215-45
  • UCFL215-45

UCFL216-51 3-3/16" Pillow Block Bearing

down load to pdf

Details

Tags

d
80.963 mm
 Bore diameter
L
180 mm
 Flange width
H
290 mm
 Height flange
U
83.3 mm
 Total height unit
Cr
76,000 N
 Basic dynamic load rating, radial
C0r
54,000 N
 Basic static load rating, radial
Cur
2,190 N
 Fatigue load limit, radial
≈m
7.16 kg
 Weight

J
233 mm
 Distance fixing bore
N
25 mm
 Fixing bore
n
2
 Number of screwing holes
A
58 mm
 Height housing
A1
24 mm
 Thickness of flange
A2
34 mm
 Distance raceway
B
82.6 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
