UCFL215-45
  • UCFL215-45

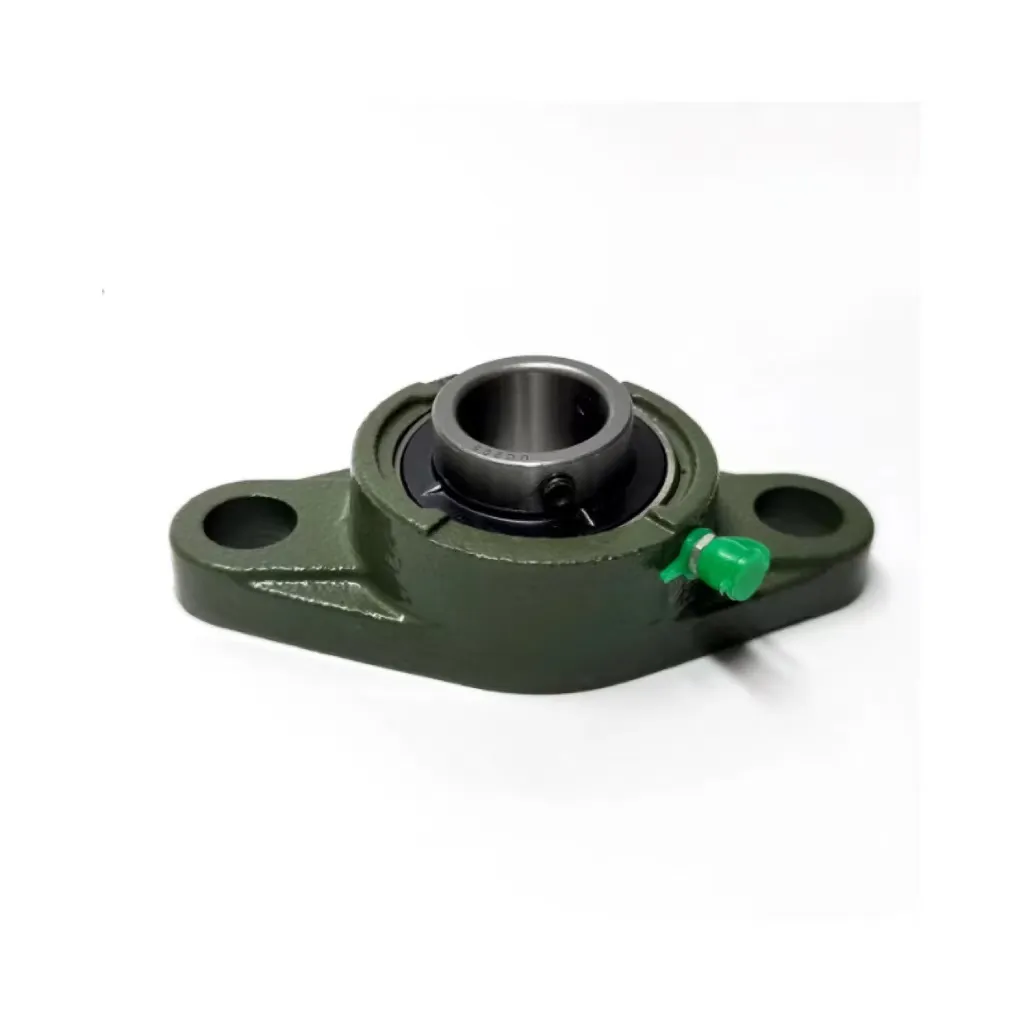

UCFL215-47 2-15/16" Flanged housing bearing unit

Details

Tags

d
74,612 mm
Bore diameter
L
165 mm
Flange width
H
275 mm
Height flange
U
78,5 mm
Total height unit
Cr
66.000 N
Basic dynamic load rating, radial
C0r
44.500 N
Basic static load rating, radial
Cur
1.880 N
Fatigue load limit, radial
≈m
5,73 kg
Weight

J
225 mm
Distance fixing bore
N
23 mm
Fixing bore
n
2
Number of screwing holes
A
56 mm
Height housing
A1
24 mm
Thickness of flange
A2
34 mm
Distance raceway
B
77,8 mm
Width
Q
M6
Connection thread for lubrication
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
