UCFL211-32
  • UCFL211-32

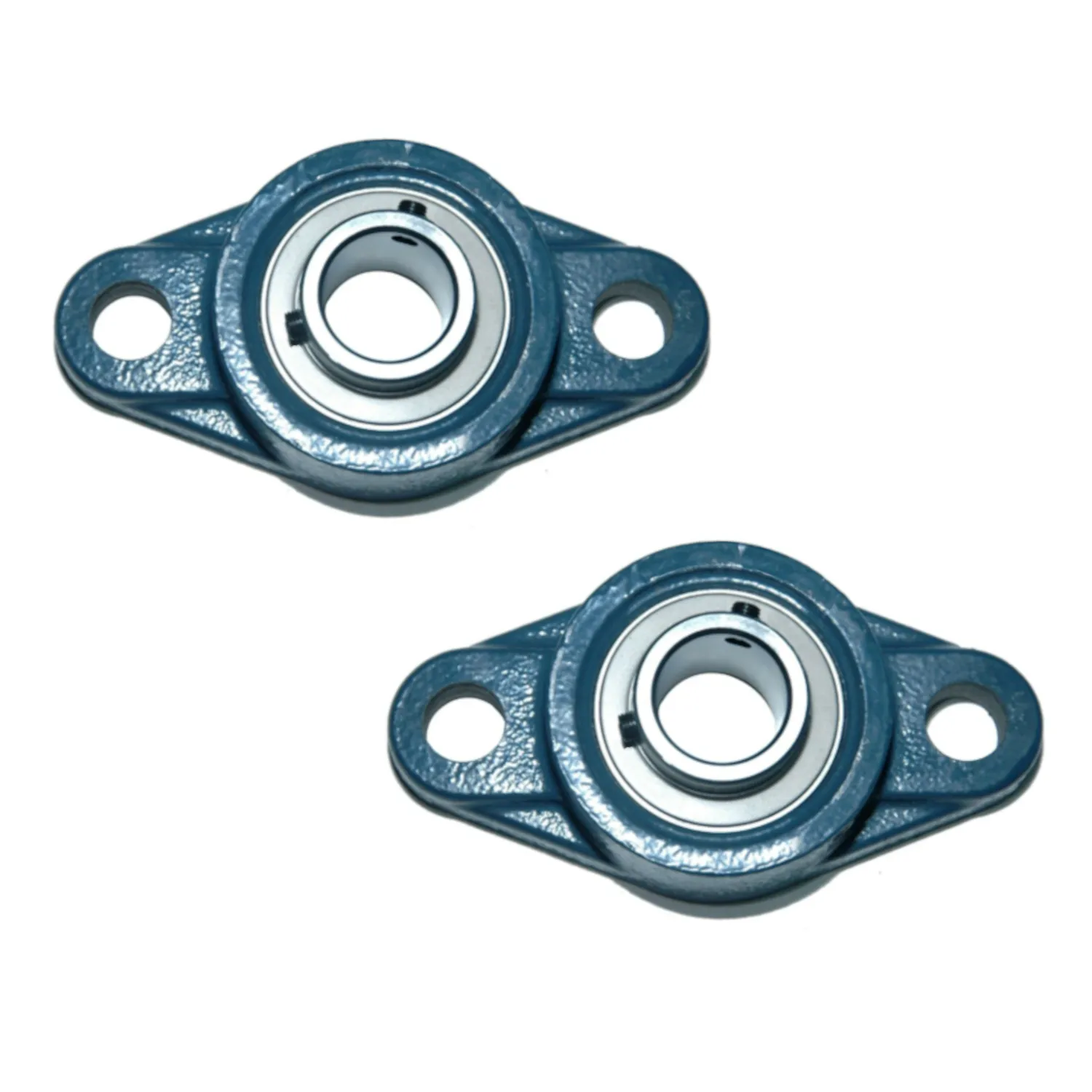

UCFL214-44 Flanged housing bearing unit

down load to pdf

Details

Tags

d
69.85 mm
 Bore diameter
L
160 mm
 Flange width
H
265 mm
 Height flange
U
75.4 mm
 Total height unit
Cr
66,000 N
 Basic dynamic load rating, radial
C0r
44,000 N
 Basic static load rating, radial
Cur
1,870 N
 Fatigue load limit, radial
≈m
5.25 kg
 Weight

J
216 mm
 Distance fixing bore
N
23 mm
 Fixing bore
n
2
 Number of screwing holes
A
54 mm
 Height housing
A1
24 mm
 Thickness of flange
A2
31 mm
 Distance raceway
B
74.6 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
