UCFL213
  • UCFL213

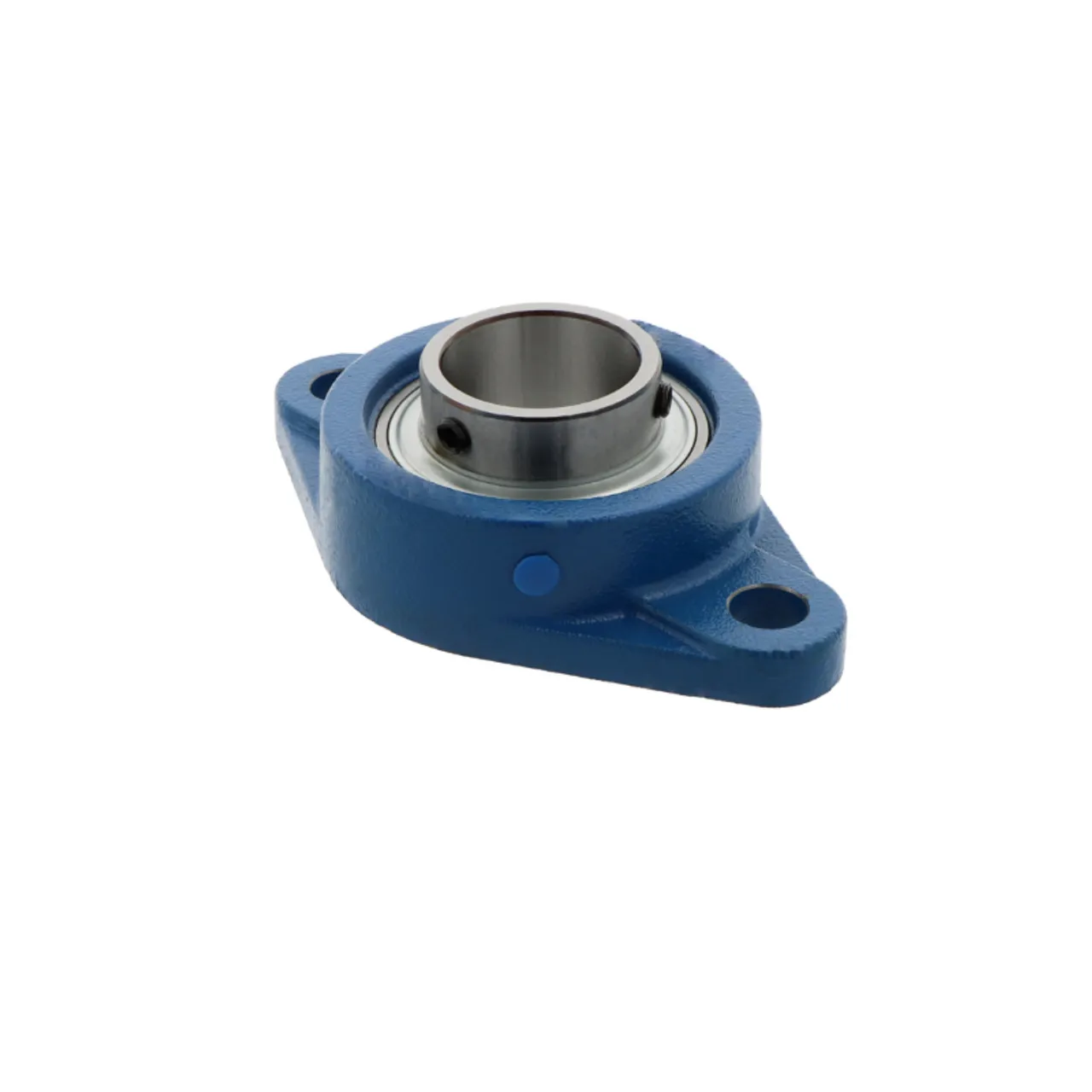

UCFL213-41 Flanged housing bearing unit

down load to pdf

Details

Tags

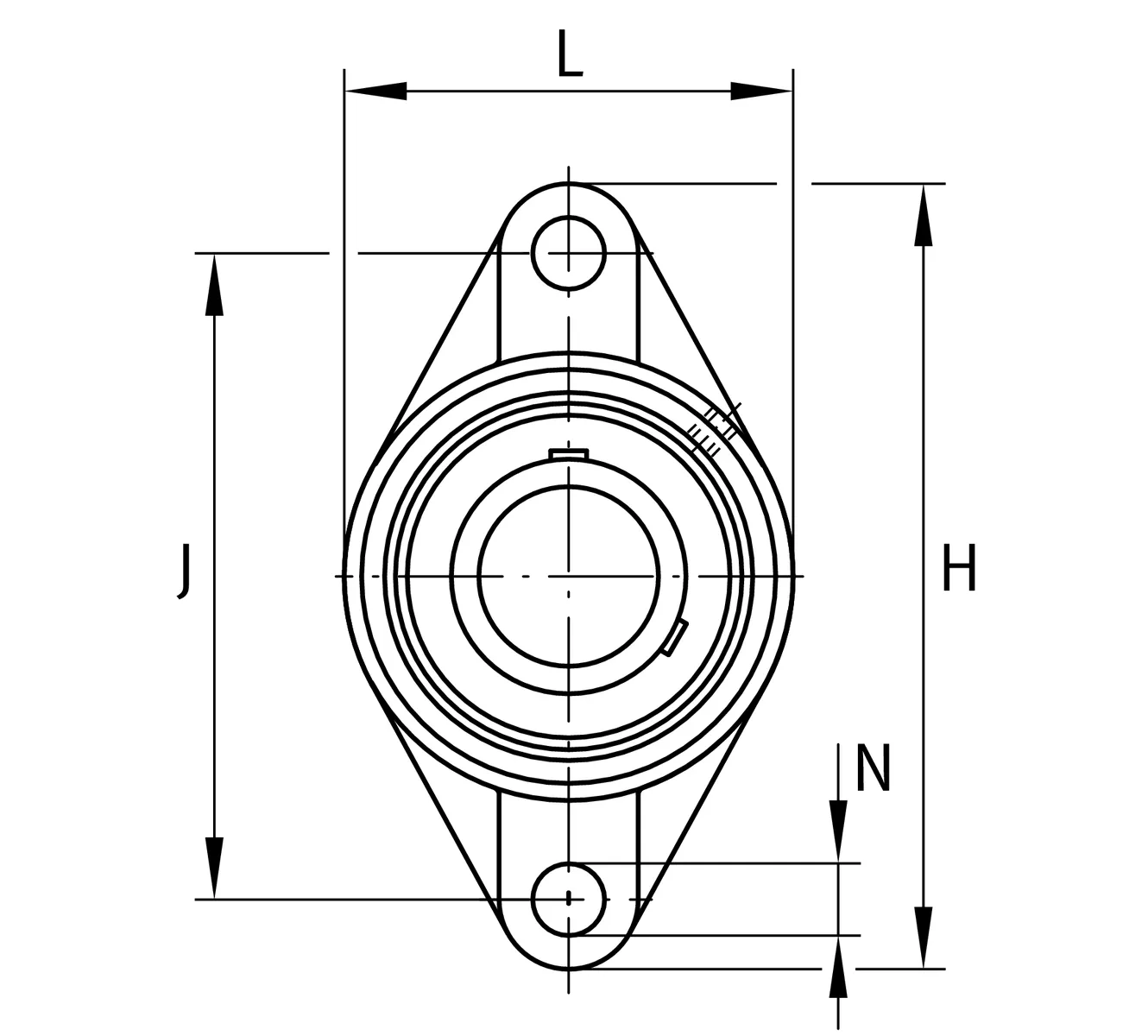

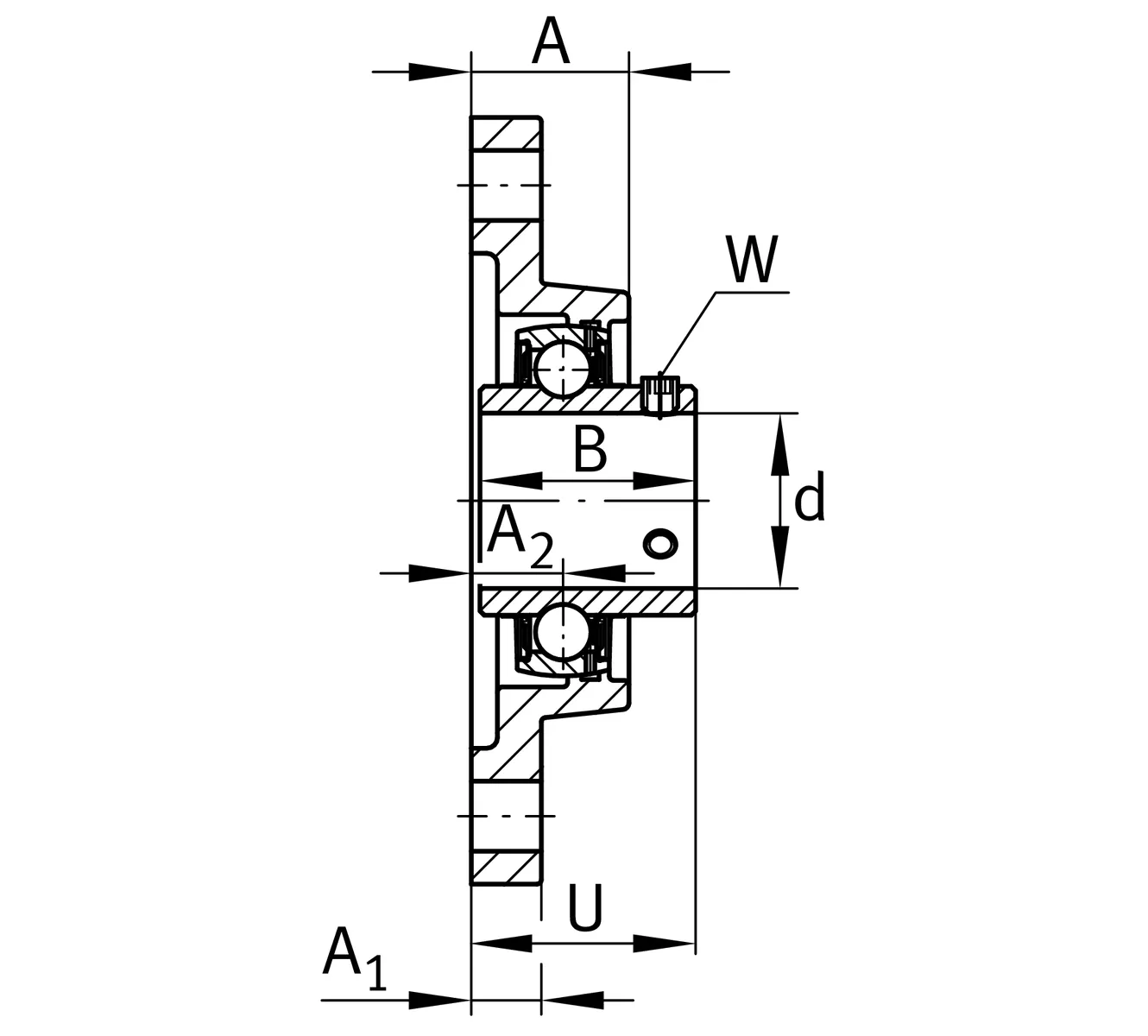

d
65,087 mm
 Bore diameter
L
155 mm
 Flange width
H
258 mm
 Height flange
U
69,7 mm
 Total height unit
Cr
61.000 N
 Basic dynamic load rating, radial
C0r
40.000 N
 Basic static load rating, radial
Cur
2.090 N
 Fatigue load limit, radial
≈m
4,68 kg
 Weight
J
210 mm
 Distance fixing bore
N
23 mm
 Fixing bore
n
2
 Number of screwing holes
A
50 mm
 Height housing
A1
24 mm
 Thickness of flange
A2
30 mm
 Distance raceway
B
65,1 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
