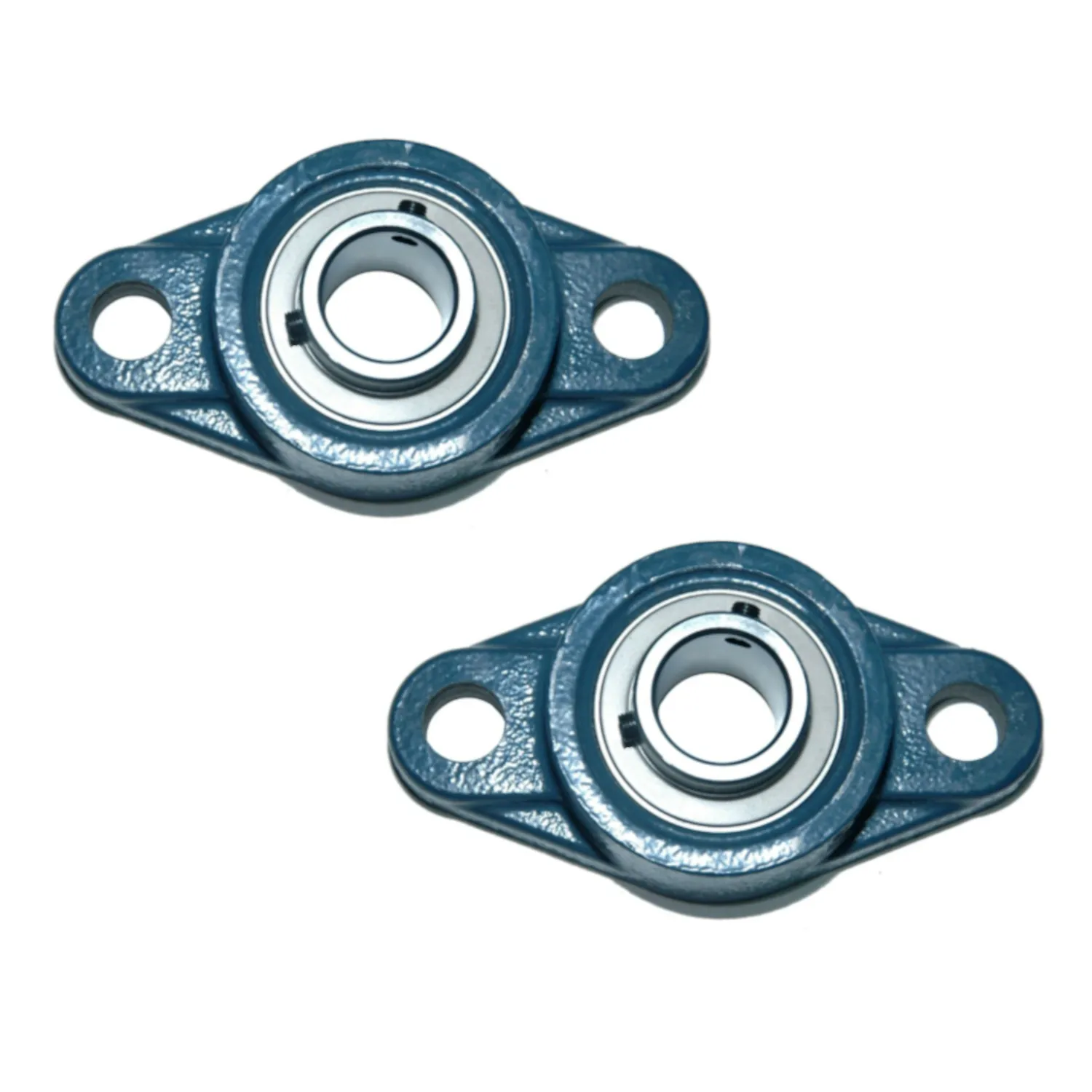

High quality 2-1/2" two bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
Basic Dimensions |
||||
Shaft Size |
Bolt Distance |
Overall Length |
Overall Width |
Overall Thickness |
2-1/2" |
8.27" |
10.16" |
6.10" |
2.74" |
Click Above for Full Dimensions
INTERCHANGES
AMI: UCFT213-40
Browning: VF2S-240
Dodge: F2B-SC-208
Fafnir: YCJT-2-1/2
Link-Belt: FX3-U208N
Peer: FHSFT213-40G
RHP: SFT-2-1/2
Sealmaster: SFT-40
SKF: FYT-2-1/2-TM
