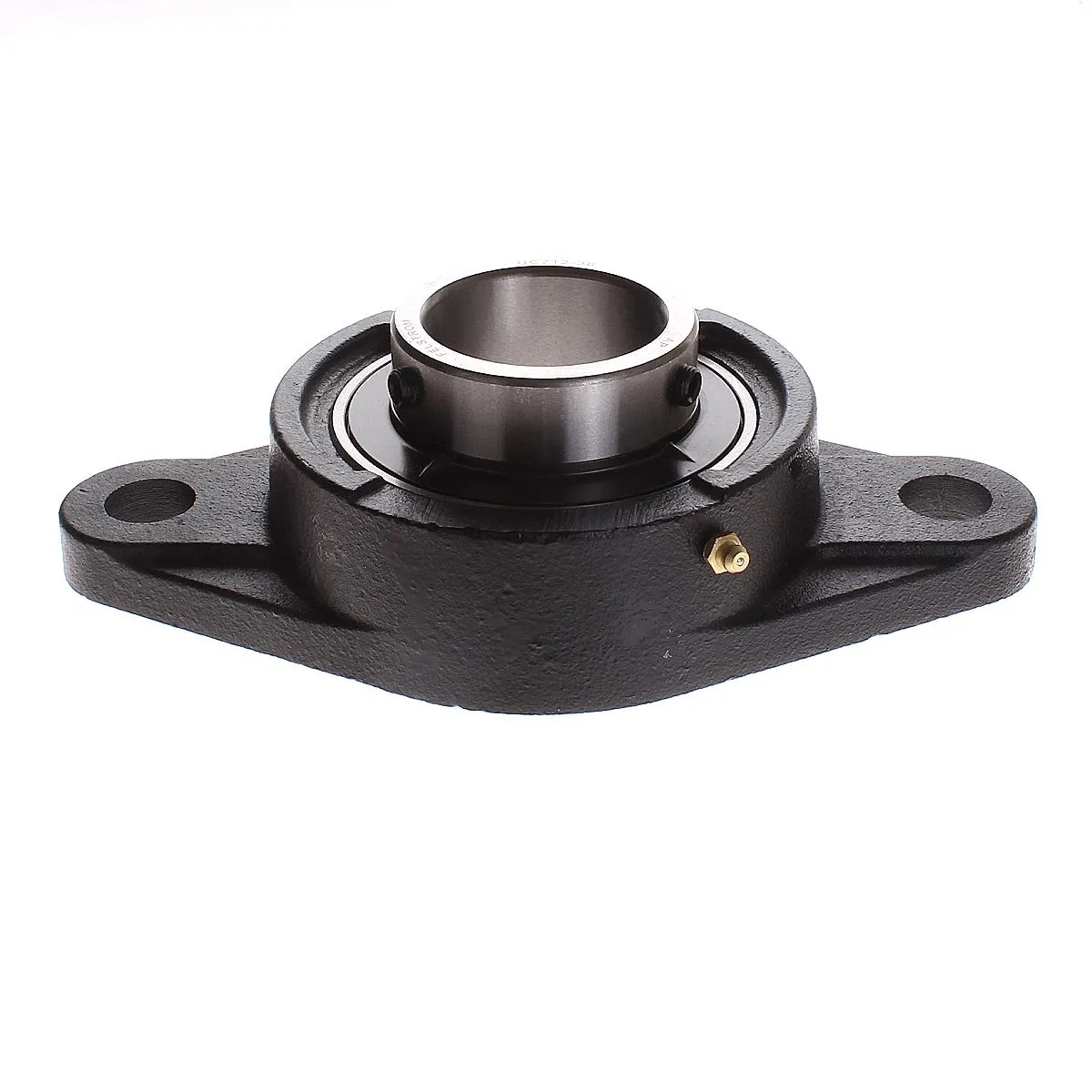

High quality 2-1/4" two bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
Basic Dimensions |
||||
Shaft Size |
Bolt Distance |
Overall Length |
Overall Width |
Overall Thickness |
2-1/4" |
7.95" |
9.84" |
5.51" |
2.70" |
Click Above for Full Dimensions
INTERCHANGES
AMI: UCFT212-36
Browning: VF2S-236
Dodge: F2B-SC-204
Fafnir: YCJT-2-1/4
Link-Belt: FX3-U204N
Peer: FHSFT212-36G
RHP: SFT-2-1/4
Sealmaster: SFT-36
SKF: FYT-2-3/16-TM
