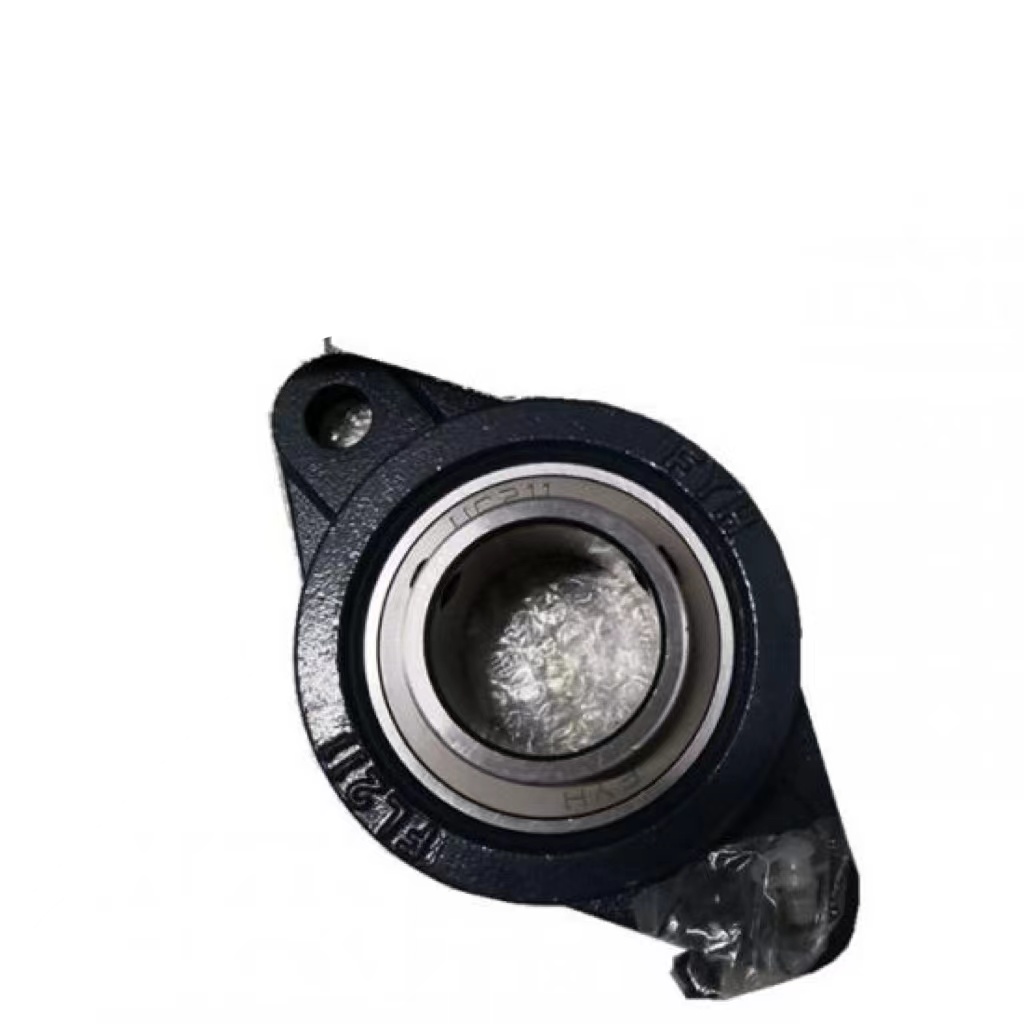

UCFL211 Pillow Block Bearing
  • UCFL211 Pillow Block Bearing

UCFL211 Pillow Block Bearing

They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Details

Tags

Dimensions

Shaft diameter 55 mm
Housing overall width 41.5 mm
Width, total 58.4 mm
Centre distance between bolt holes 184 mm
Bearing width, total 55.6 mm
Basic dynamic load rating 43.6 kN
Basic static load rating 29 kN
Limiting speed 3 000 r/min
Note Limiting speed with shaft tolerance h6
Product net weight 3.12 kg
Housing type Flanged
Flanged housing type Oval
Number of bolt holes for fasteners 2
Fastening bolt hole type Plain
Retaining feature, inner ring Set screws
