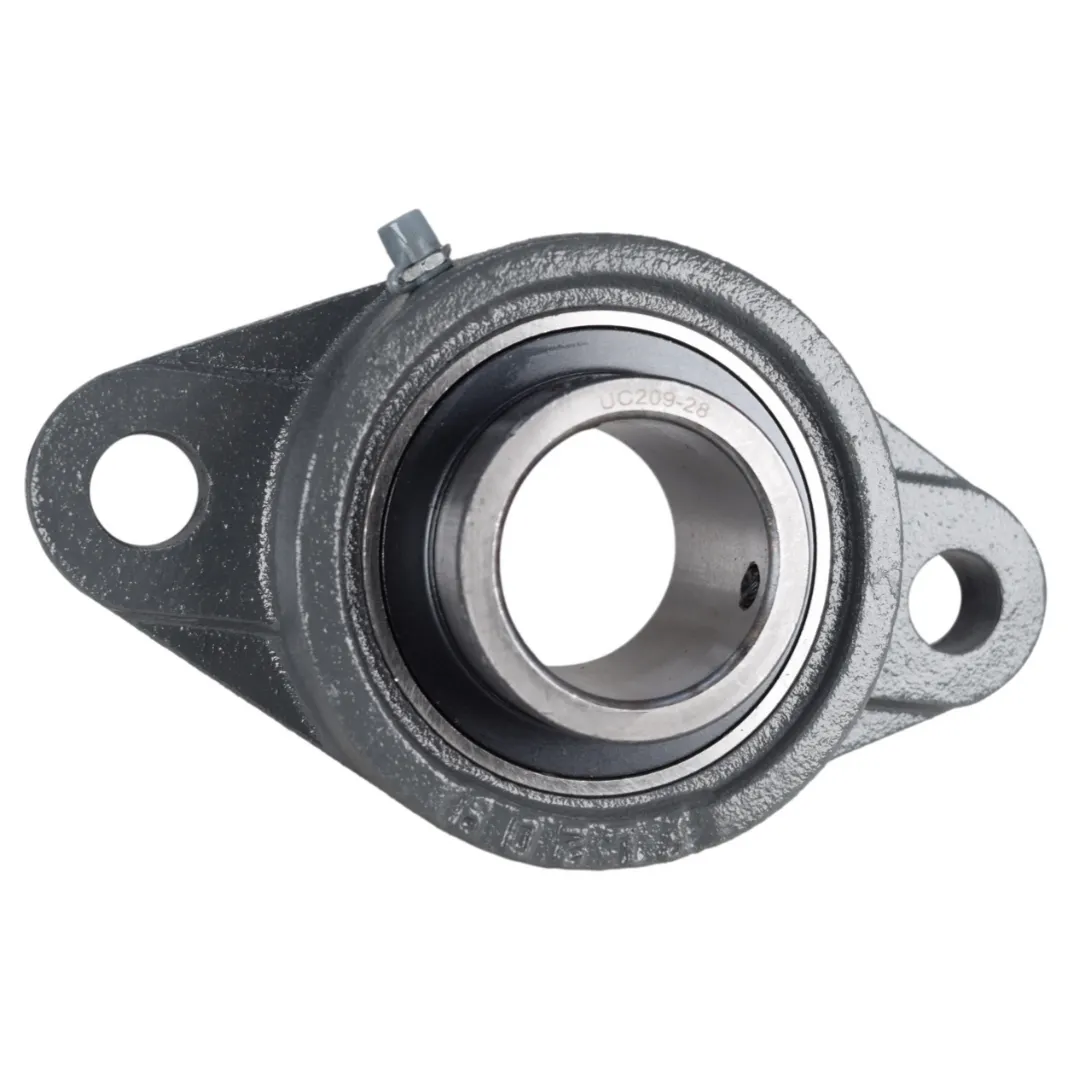

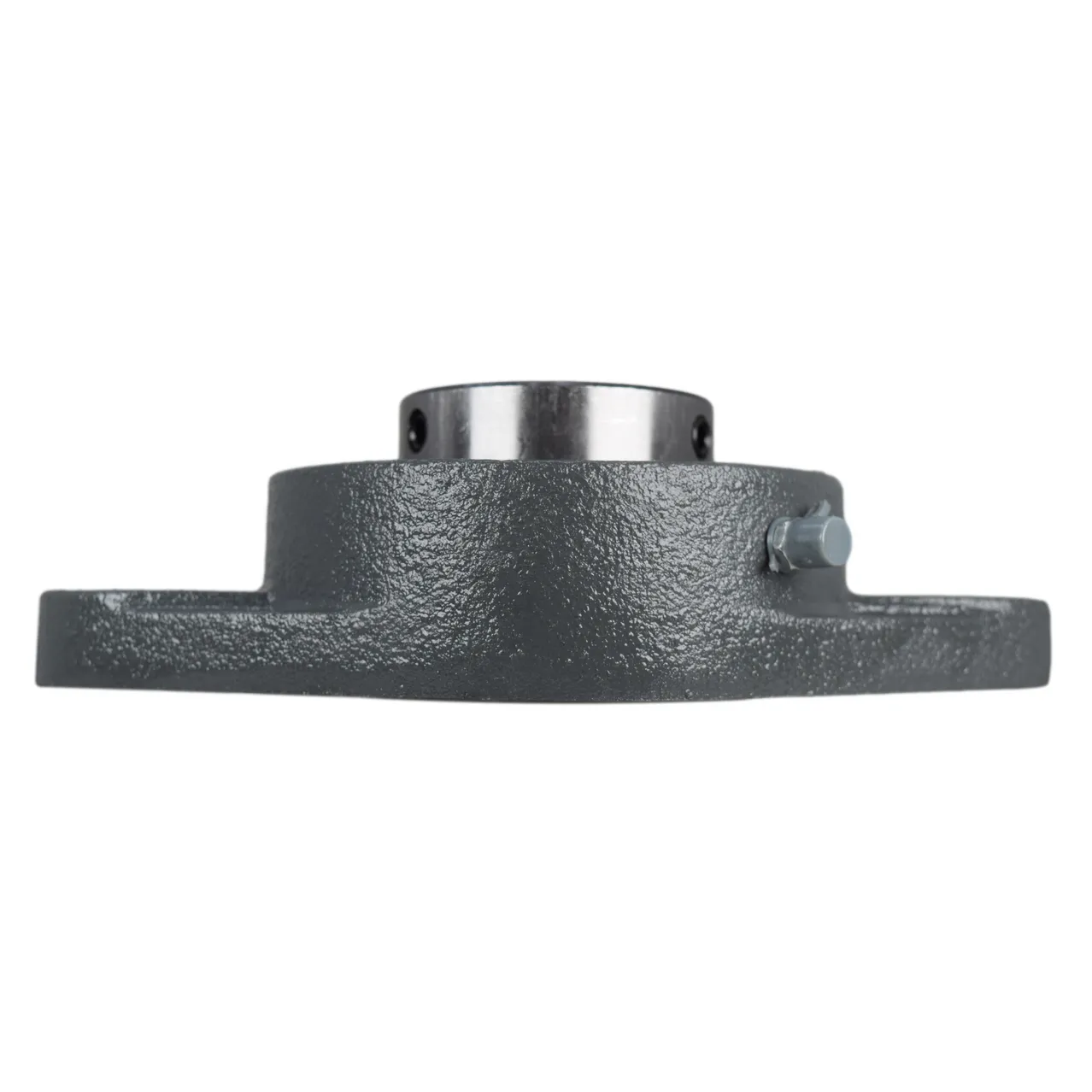

High quality 1-3/4" two bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
Basic Dimensions |
||||
Shaft Size |
Bolt Distance |
Overall Length |
Overall Width |
Overall Thickness |
1-3/4" |
5.83" |
7.40" |
4.25" |
2.06" |
Click Above for Full Dimensions
INTERCHANGES
AMI: UCFT209-28
Browning: VF2S-228
Dodge: F2B-SC-112
Fafnir: YCJT-1-3/4
Link-Belt: FX3-U228N
Peer: FHSFT209-28G
RHP: SFT-1-3/4
Sealmaster: SFT-28
SKF: FYT-1-3/4-TM
