UCFL209-26
  • UCFL209-26
  • Two Bolt Flange Bearing
  • Two Bolt Flange Bearing UCFL209-26

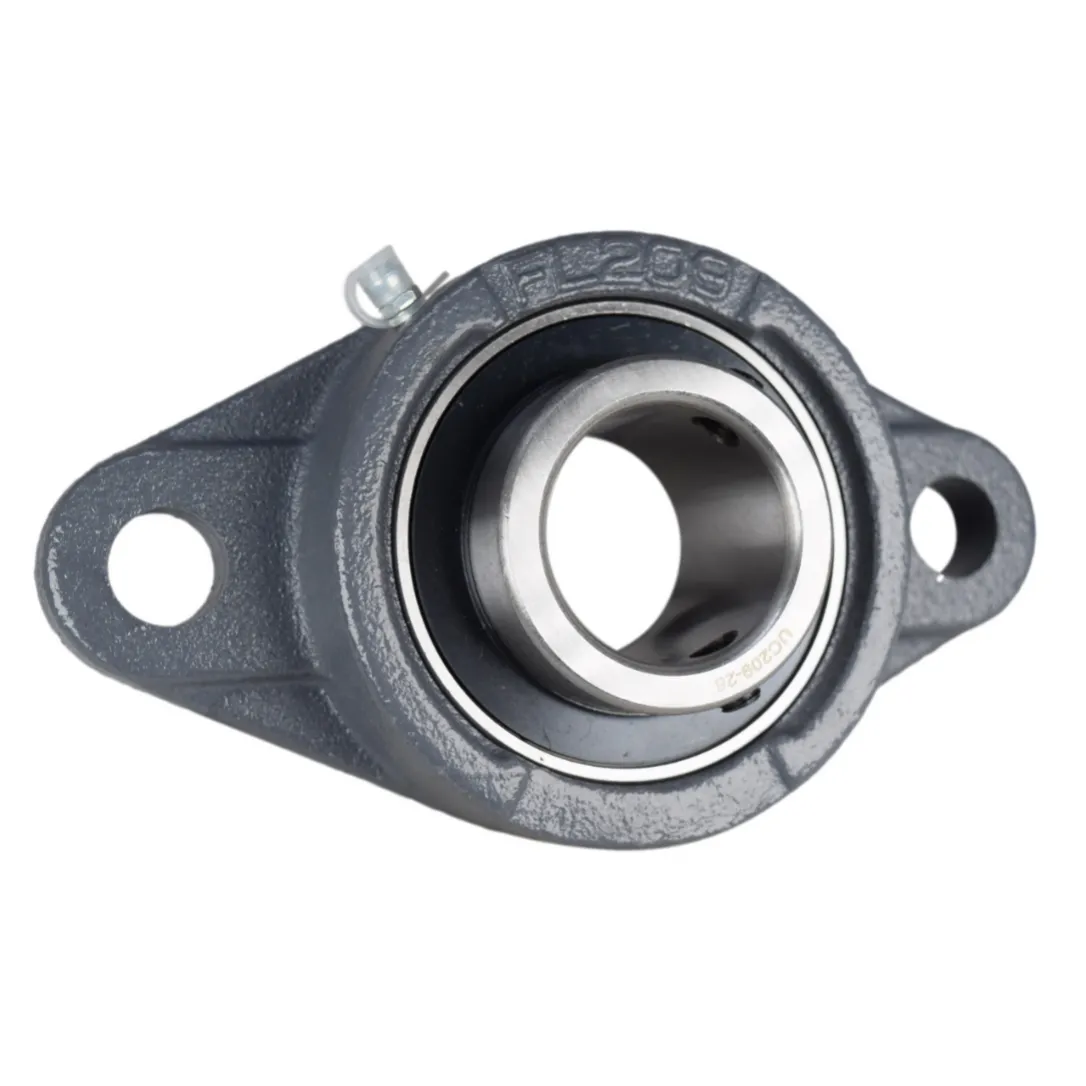

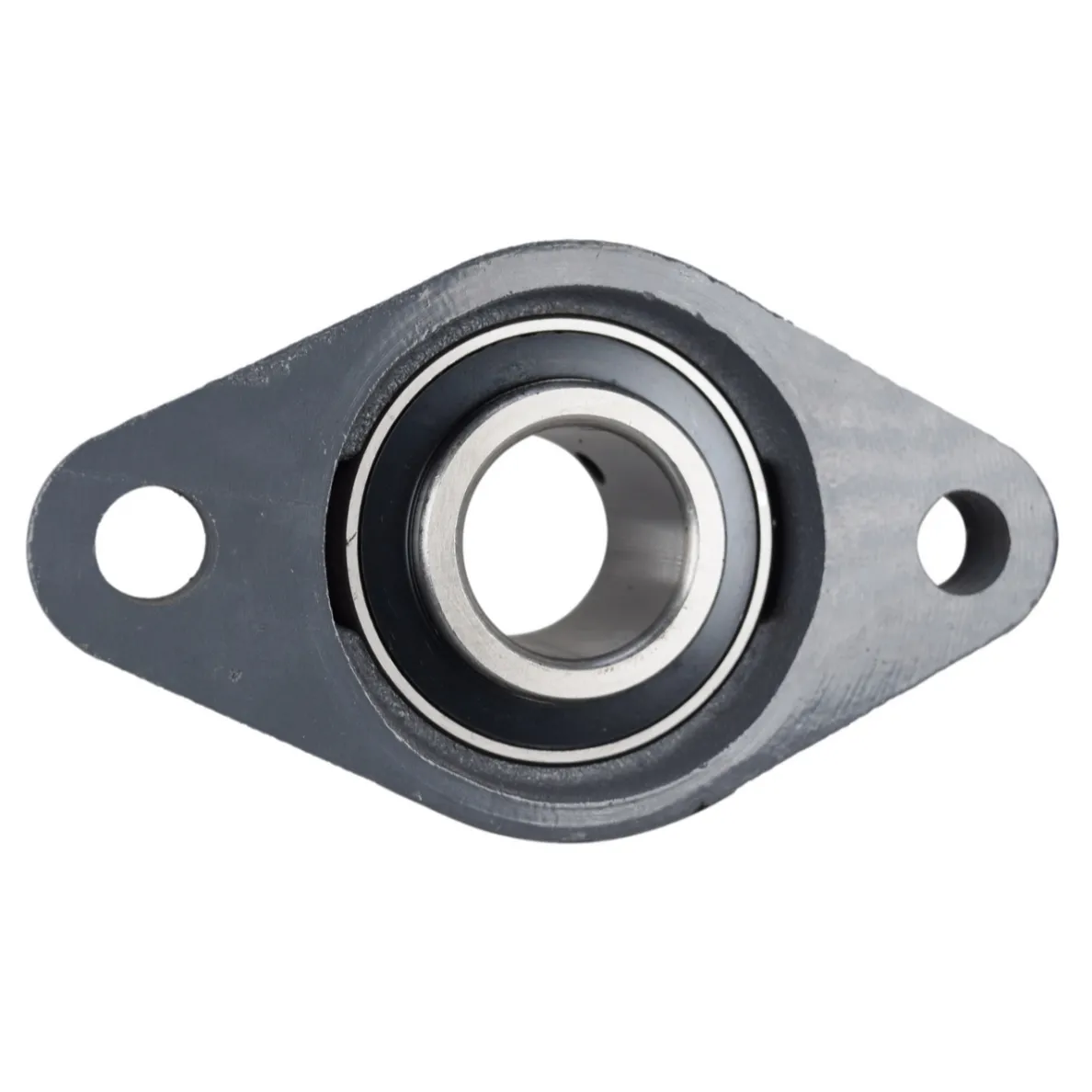

UCFL209-26 1-5/8" Two Bolt Flange Bearing Unit

Details

Tags

High quality 1-5/8" two bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.



Basic Dimensions

Shaft Size

Bolt Distance

Overall Length

Overall Width

Overall Thickness

1-5/8"

5.83"

7.40"

4.25"

2.06"



Click Above for Full Dimensions



INTERCHANGES
AMI: UCFT209-26
Browning: VF2S-226
Dodge: F2B-SC-110
Fafnir: YCJT-1-5/8
Link-Belt: FX3-U226N
Peer: FHSFT209-26G
RHP: SFT-1-5/8
Sealmaster: SFT-26
SKF: FYT-1-5/8-TM
