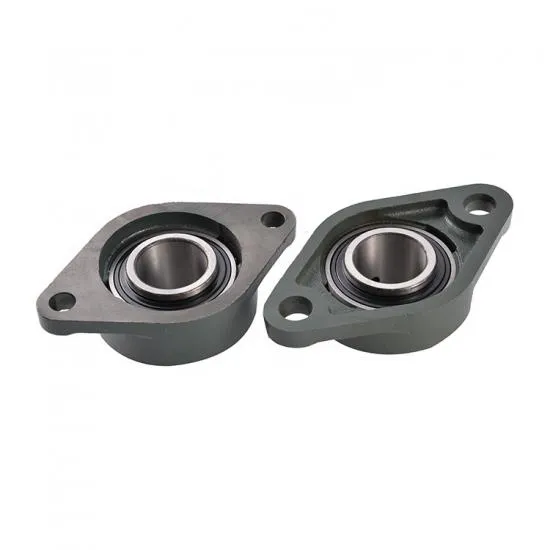

UCFL206-19 1-3/16" Two Bolt Flange Bearing Unit

Details

Tags

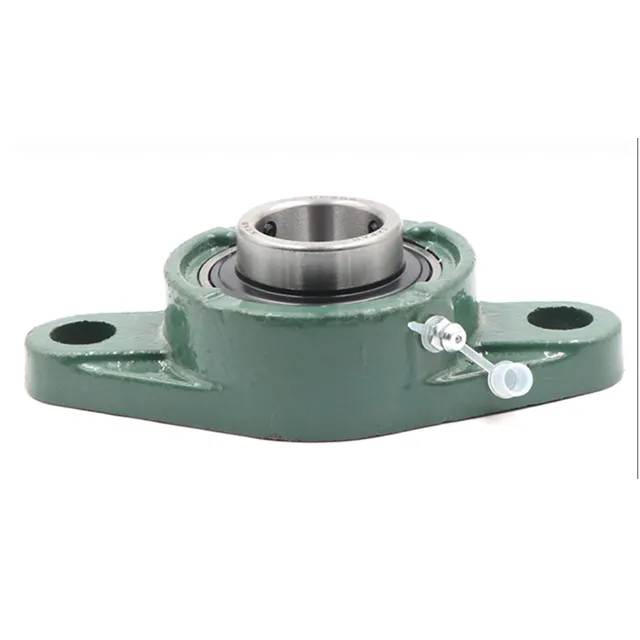

High quality 1-3/16" two bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.

Click Above for Full Dimensions

Below here is part of our UCFL bearing number for your reference :

Unit No.	Shaft		Dimensions(mm)									Bolt site (mm)
	d		Dimensions(mm)
	(In.)	(mm)	a	e	i	g	l	a	b	Bi	n
UCFL205-14 UCFL205-15 UCFL205 UCFL205-16	7/8 15/16 1	25	130	99	16	13	27	16	68	35.7	14.3	M14
UCFL206-18 UCFL206 UCFL206-19 UCFL206-20	1-1/8 1-3/16 1-1/4	30	148	117	18	13	31	16	80	40.2	15.9	M14
UCFL207-20 UCFL207-21 UCFL207-22 UCFL207 UCFL207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	161	130	19	15	34	16	90	44.1	17.5	M14
UCFL208-24 UCFL208-25 UCFL208	1-1/2 1-9/16	40	175	144	21	15	36	16	100	51.2	19	M14

INTERCHANGES
AMI: UCFT206-19
Browning: VF2S-219
Dodge: F2B-SC-103
Fafnir: YCJT-1-3/16
Link-Belt: FX3-U219N
Peer: FHSFT206-19G
RHP: SFT-1-3/16
Sealmaster: SFT-19
SKF: FYT-1-3/16-TM

Application :

Pillow block bearings can used for agriculture,light textile,mining,food &beverage,pharmaceutical,chemical processing,printing,dyeing,airport,air-conditioning and various kinds of conveying and rolling devices.
