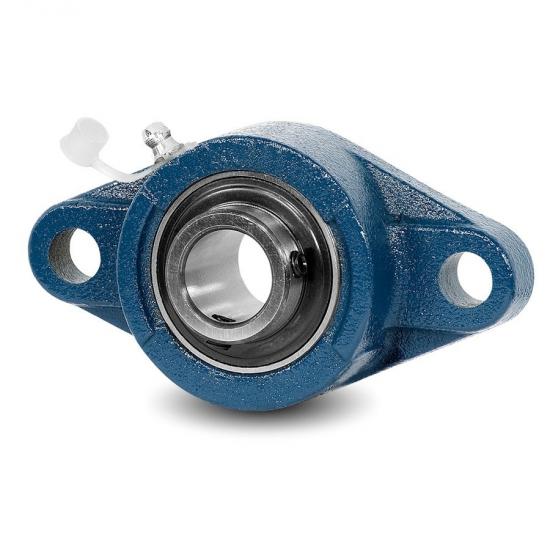

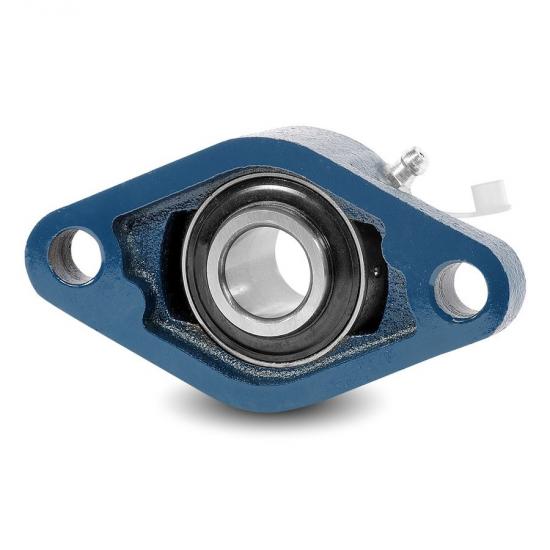

UCFL204 Flange Pillow Block Bearing Units

They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Details

Tags

UCFL204 Bearing Is 2 Bolt Flange Bearing Housing Material Is With Cast Iron,Housing No. is FL204 With Insert Bearing UC204, Seals Type Is Nitrile Rubber And We Packed With Grease Chevron SRI-2,the UCFL Bearings Are Used For Manufacturing Plant, Construction works.



Shaft diameter 20 mm
Housing overall width 25.5 mm
Width, total 33.3 mm
Centre distance between bolt holes 90 mm
Bearing width, total 31 mm
Basic dynamic load rating 12.7 kN
Basic static load rating 6.7 kN
Limiting speed 6 500 r/min
Note Limiting speed with shaft tolerance h6
Housing type Flanged
Flanged housing type Oval
Number of bolt holes for fasteners 2
Fastening bolt hole type Plain
Retaining feature, inner ring Set screws
Bore type Cylindrical
Rubber seating ring Without
Material, housing Cast iron
Material, bearing Bearing steel
Coating Without
Sealing, bearing Seal and flinger on both sides
Sealing type Contact, standard
Sealing, unit Optional end cover
