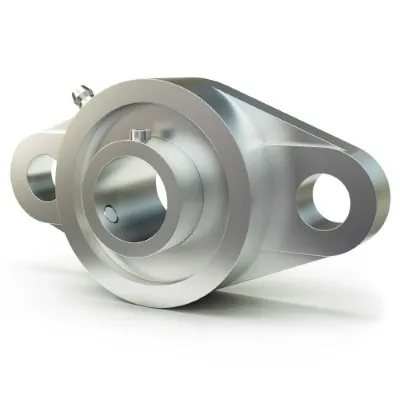

UCFL201 Flanged housing bearing unit

down load to pdf

Details

Tags

Main Dimensions & Performance Data



d
12 mm
 Bore diameter
L
60 mm
 Flange width
H
113 mm
 Height flange
U
33,3 mm
 Total height unit
Cr
12.800 N
 Basic dynamic load rating, radial
C0r
6.600 N
 Basic static load rating, radial
Cur
345 N
 Fatigue load limit, radial
≈m
0,468 kg
 Weight

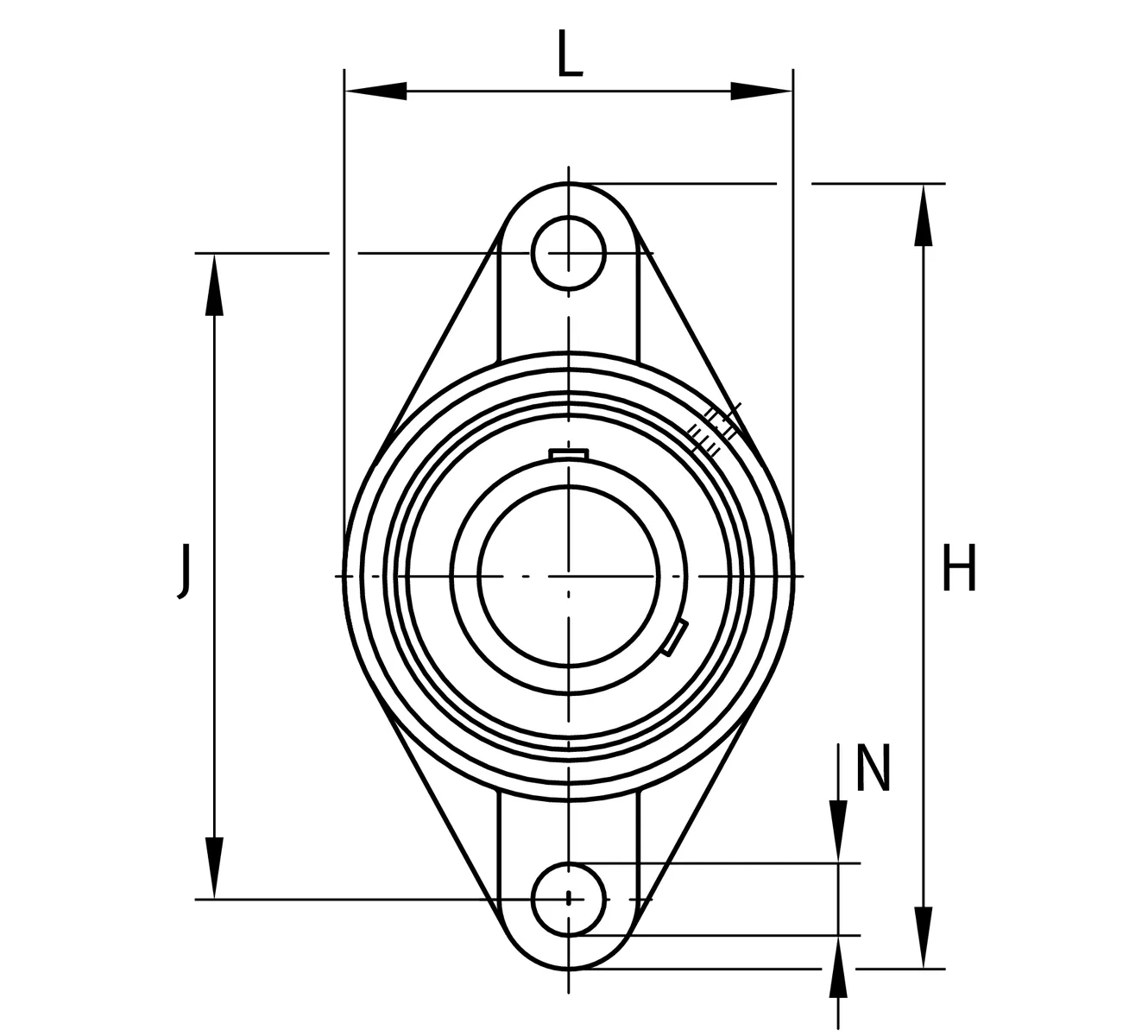

Mounting dimensions

J
90 mm
 Distance fixing bore
N
12 mm
 Fixing bore
n
2
 Number of screwing holes

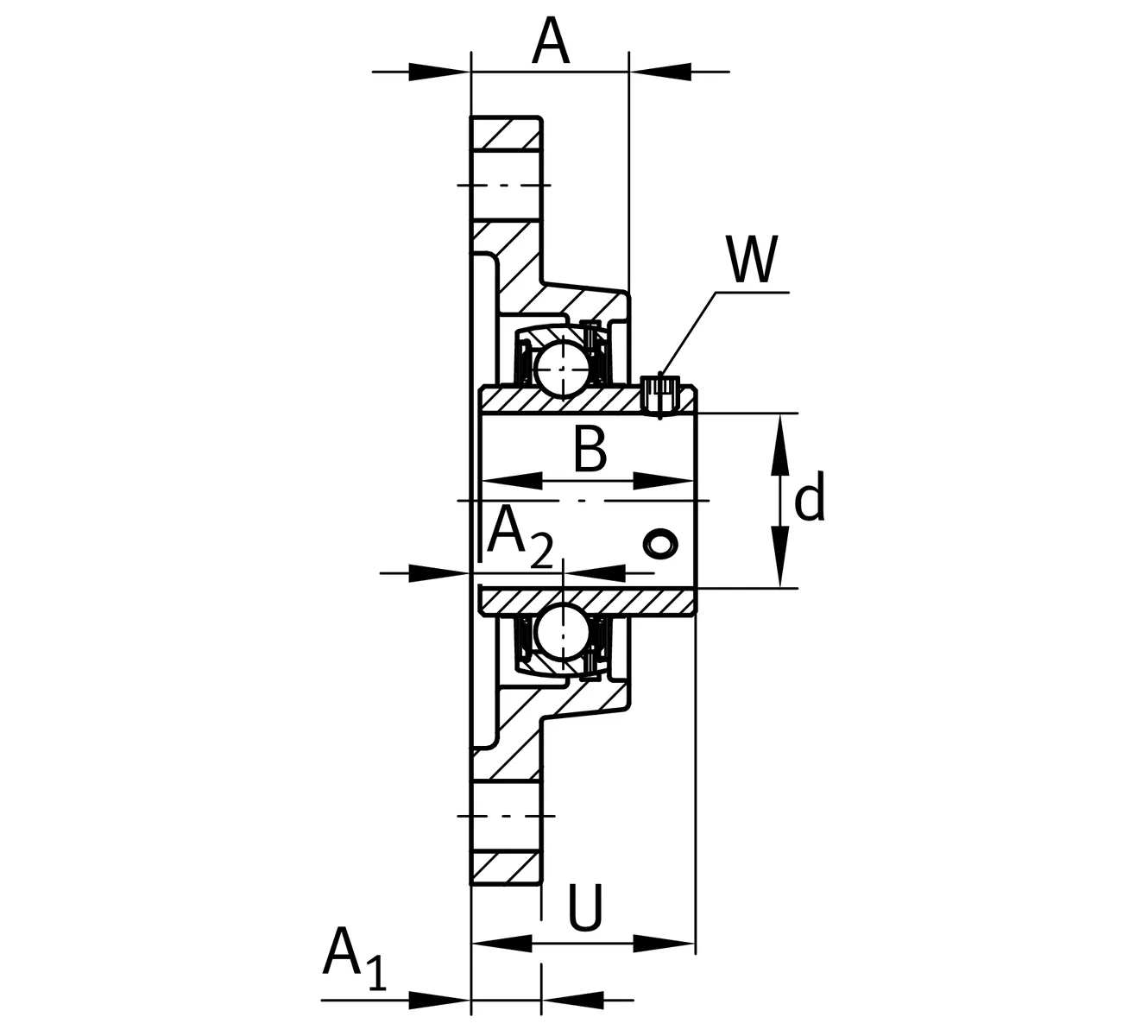

Dimensions
A
25,5 mm
 Height housing
A1
12 mm
 Thickness of flange
A2
15 mm
 Distance raceway
B
31 mm
 Width
Q
M6
 Connection thread for lubrication



Temperature range
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
