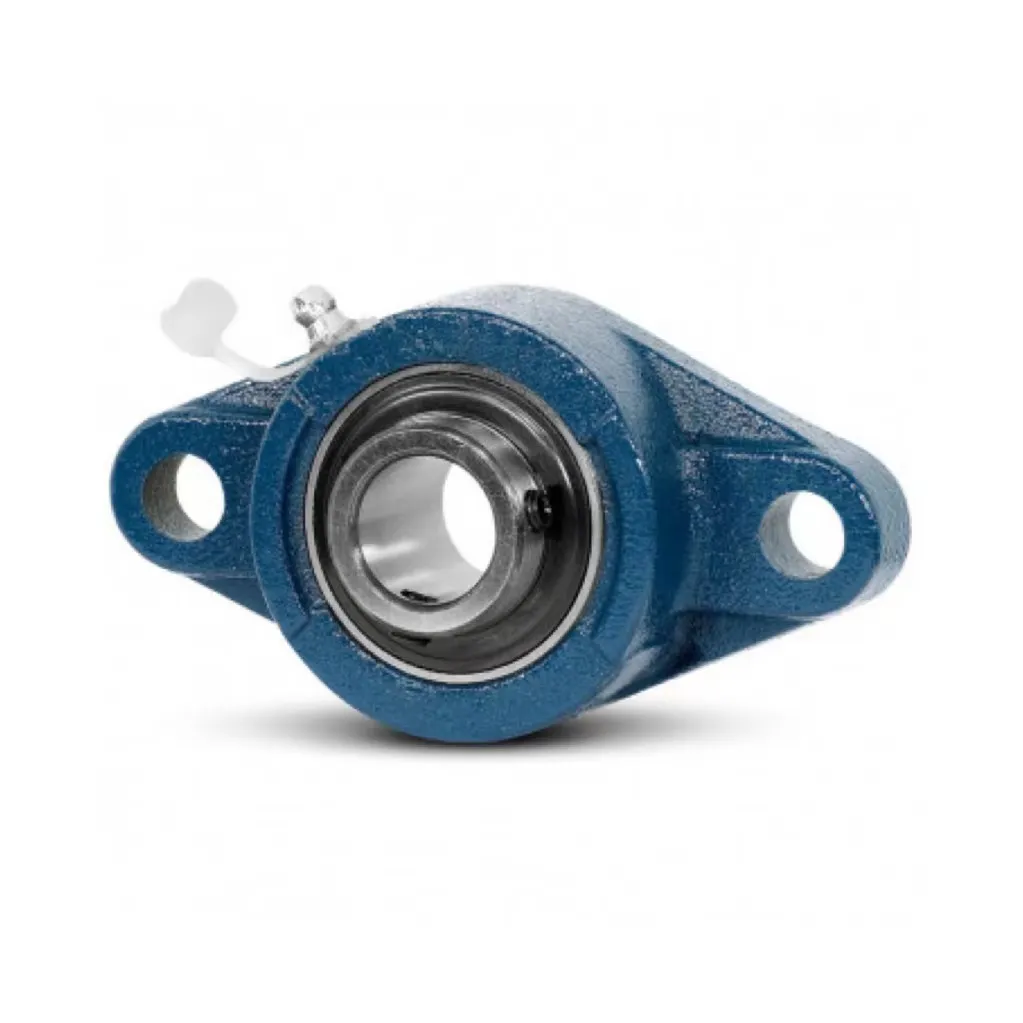

UCFL 203 Two Bolt Flange Bearing Housing Unit

Details

Tags

The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.



The housing bearing unit UCFL203 as a set includes the 2-hole flange housing FL204 and the single row radial insert ball bearing UC203 (shaft: 17 mm). The set components are coordinated with each other so that they can be mounted directly.



Product information

d
17 mm
Bore diameter
L
60 mm
Flange width
H
113 mm
Height flange
U
33.3 mm
Total height unit
Cr
12,800 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
Cur
345 N
Fatigue load limit, radial
≈m
450 g
Weight

J
90 mm
Distance fixing bore
N
12 mm
Fixing bore
n
2
Number of screwing holes
A
25.5 mm
Height housing
A1
12 mm
Thickness of flange
A2
15 mm
Distance raceway
B
31 mm
Width
Q
M6
Connection thread for lubrication
