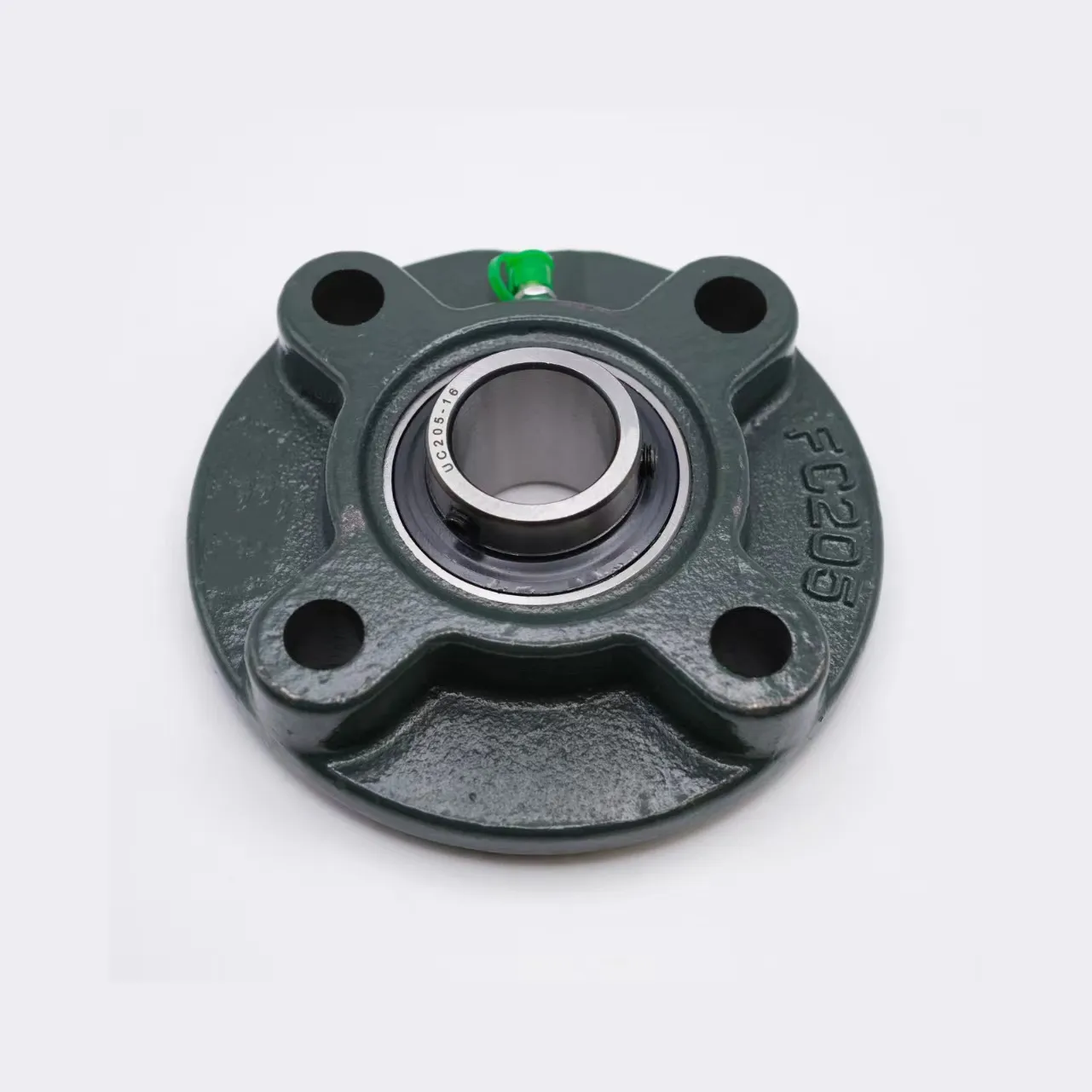

UCFC206-18 Round Flange Housing 4 Bolt Ball Bearing

down load to pdf

Details

Tags

UCFC206-18 Round Flange Housing 4 Bolt Ball BearingUCFC206-18 Round Flange Housing 4 Bolt Ball Bearing

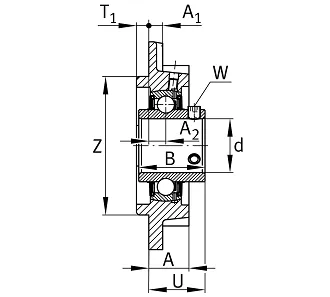

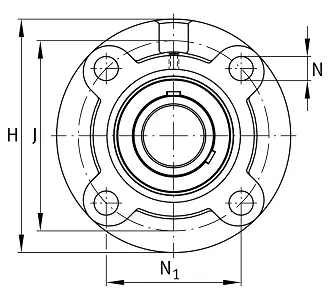

d
28,575 mm
 Bore diameter
H
125 mm
 Height flange
U
32,2 mm
 Total height unit
Cr
19.500 N
 Basic dynamic load rating, radial
C0r
11.300 N
 Basic static load rating, radial
Cur
480 N
 Fatigue load limit, radial
≈m
1,27 kg
 Weight
J
100 mm
 Distance fixing bore
J
100 mm
 Pitch circle diameter (holes)
N
12 mm
 Fixing bore
N1
70,7 mm
 Distance fixing bore
T1
8 mm
 Height spigot
Z
80 mm
 Diameter spigot

h8
 Diameter spigot clearance
n
4
 Number of screwing holes
A
23 mm
 Height housing
A1
8 mm
 Thickness of flange
A2
10 mm
 Distance raceway
B
38,1 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
