UCFC205 25mm Round Flange Pillow Block Bearing Units
  • UCFC205 25mm Round Flange Pillow Block Bearing Units

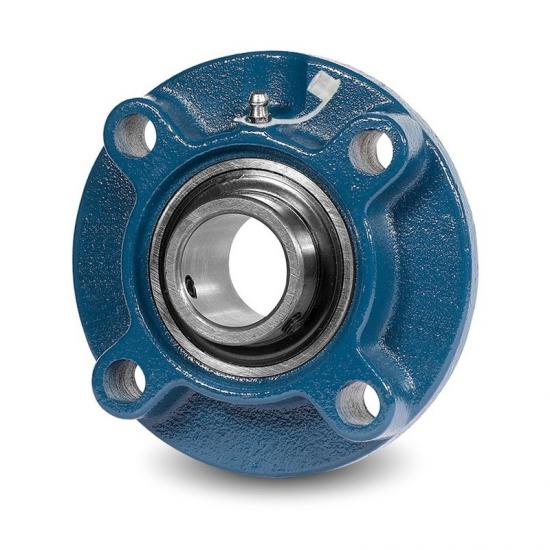

UCFC205 25mm Round Flange Pillow Block Bearing Units

Pillow Block Bearing UCFC205 With 4 Bolt Cartridge Unit,The Housing Material is cast iron ,Housing No. Is FC205 ,Insert Bearing IS UC205 With Set Screw Locking Shaft Fastening ,We Produce With Nitrile Rubber Seal Material And The Bearing Weight 0.95 KG

Details

Tags

UCFC205 25mm Round Flange Pillow Block Bearing Units Introduction:

Inside Diameter (mm): 25
a (mm): 115
e (mm): 63.6
i (mm): 10
Shaft Fastening: Grub Screws
Housing Type: Flange
Grub Screw: M6
Bearing No.: UC 205
Housing No.: FC 205
Ring Material: Chrome Steel
Rolling Element Material: Chrome Steel
Cage Material: Sheet Steel
Housing Material: Cast Iron
Max. Tightening Torques (Nm) For Bearing Insert: 5.5
Product weight: 0.950 Kg



Bearing Unit UCFC Series Number:

Type Dimensions (mm)          Weight
  d a p e l S k g f Z Bi n ds (kg)
UCFC201 12 100 78 55,1 25,5 12 7 20,5 62 28,3 31 12,7 M10 0,78
UCFC202 15 100 78 55,1 25,5 12 7 20,5 62 28,3 31 12,7 M10 0,78
UCFC203 17 100 78 55,1 25,5 12 7 20,5 62 28,3 31 12,7 M10 0,78
UCFC204 20 100 78 55,1 25,5 12 7 20,5 62 28,3 31 12,7 M10 0,78
UCFC205 25 115 90 63,6 27 12 7 21 70 29,7 34 14,3 M10 0,95
UCFC206 30 125 100 70,7 31 12 8 23 80 32,2 38,1 15,9 M10 1,4
UCFC207 35 135 110 77,8 34 14 9 26 90 36,4 42,9 17,5 M12 1,7
UCFC208 40 145 120 84,8 36 14 9 26 100 41,2 49,2 19 M12 2
UCFC209 45 160 132 93,3 38 16 14 26 105 40,2 49,2 19 M14 2,8
UCFC210 50 165 138 97,6 40 16 14 28 110 42,6 51,6 19 M14 3
UCFC211 55 185 150 106,1 43 19 15 31 125 46,4 55,6 22,2 M16 4
UCFC212 60 195 160 113,1 48 19 15 36 135 56,7 65,1 25,4 M16 4,7
UCFC213 65 205 170 120,2 50 19 15 36 145 55,7 65,1 25,4 M16 5,4
UCFC214 70 215 177 125,1 54 19 18 40 150 61,4 74,6 30,2 M16 6,8
UCFC215 75 220 184 130,1 56 19 18 40 160 62,5 77,8 33,3 M16 7,3
