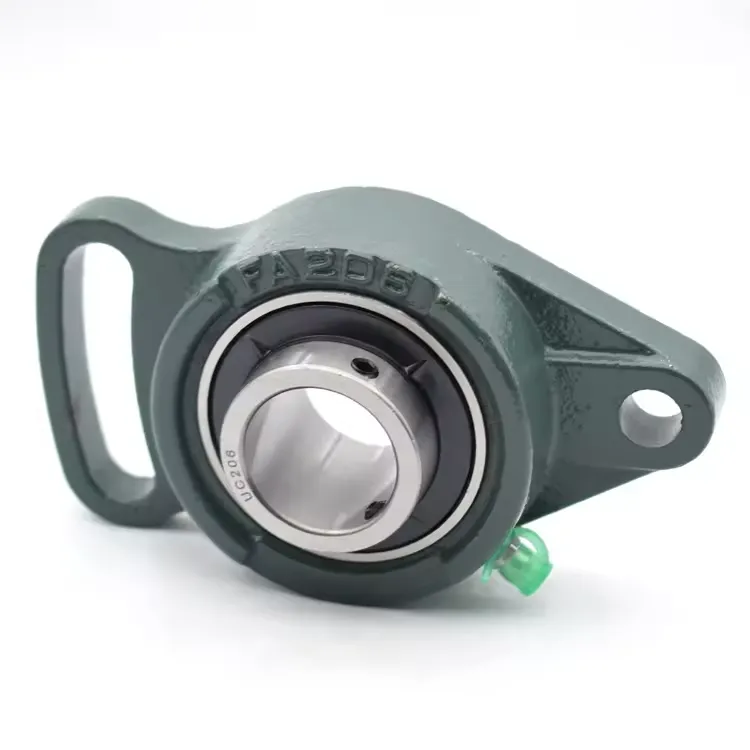

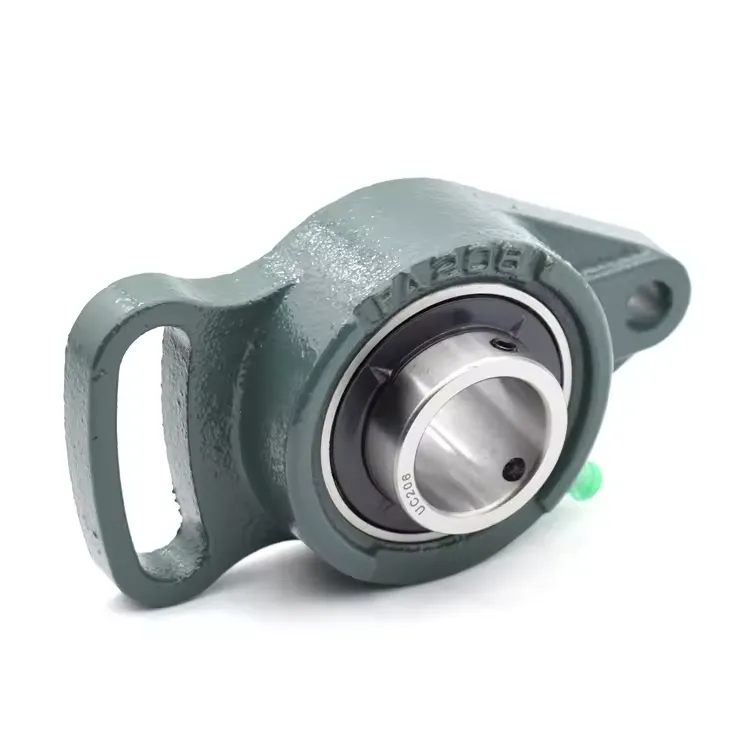

UCFA209 Take Up Housing Bearing Unit Pillow Block Bearing

down load to pdf

Details

Tags

Housing units UCFA, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for swivel motion

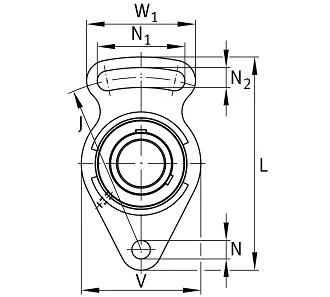

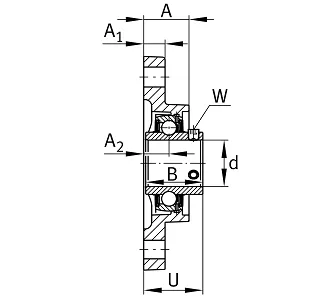

d
45 mm
 Bore diameter
L
181 mm
 Length total
U
52,2 mm
 Total height unit
≈m
1,9 kg
 Weight
N
16 mm
 Fixing bore
N1
72 mm
 Length (slot)
N2
16 mm
 Width (slot)
J
148 mm
 Distance fixing bore
A1
18 mm
 Thickness of flange
A2
22 mm
 Distance raceway
A
38 mm
 Height housing
V
108 mm
 Shoulder diameter housing
W
90 mm
 Width housing slot side
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
