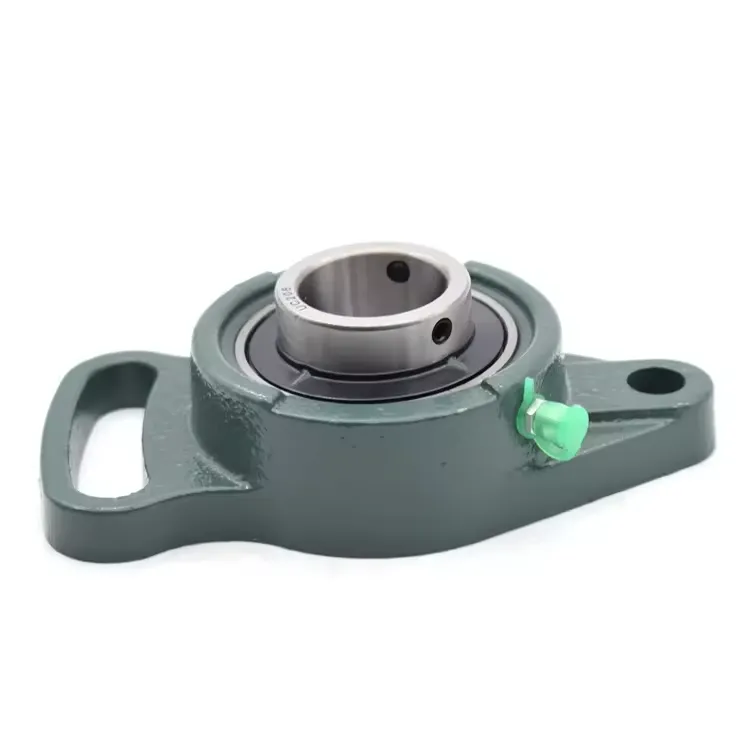

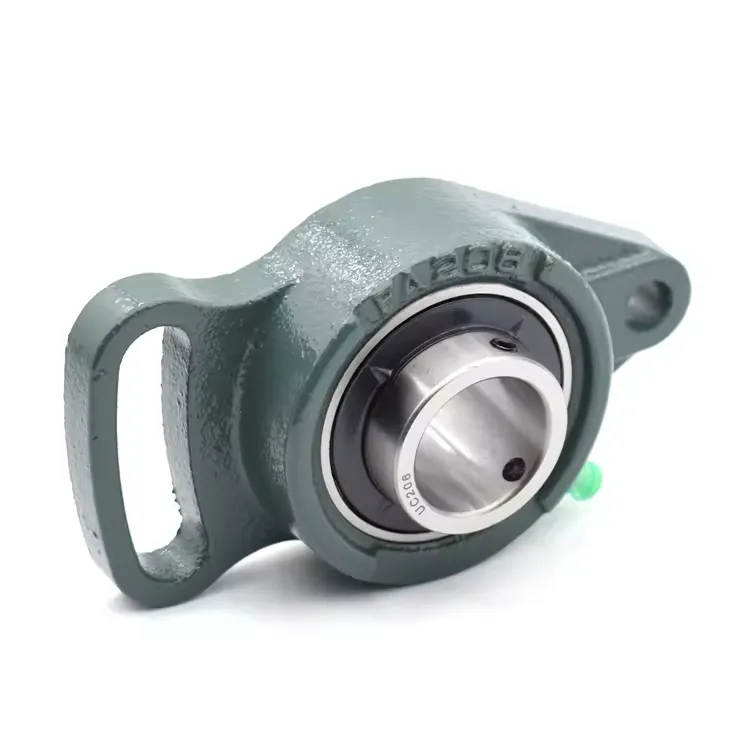

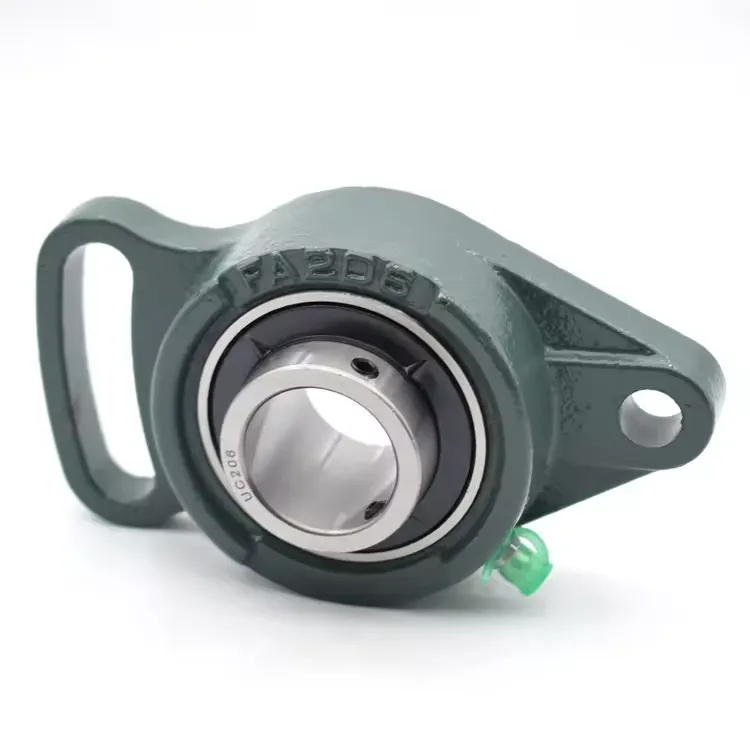

UCFA207-23 Take Up Housing Bearing Unit Pillow Block Bearing

down load to pdf

Details

Tags

Housing units UCFA, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for swivel motion

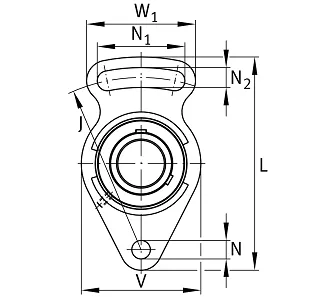

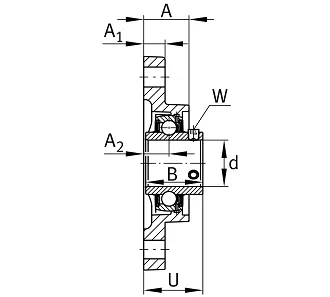

d
36,51 mm
 Bore diameter
L
161 mm
 Length total
U
44,4 mm
 Total height unit
≈m
1,228 kg
 Weight
N
14 mm
 Fixing bore
N1
66 mm
 Length (slot)
N2
14 mm
 Width (slot)
J
130 mm
 Distance fixing bore
A1
16 mm
 Thickness of flange
A2
19 mm
 Distance raceway
A
34 mm
 Height housing
V
90 mm
 Shoulder diameter housing
W
82 mm
 Width housing slot side
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
