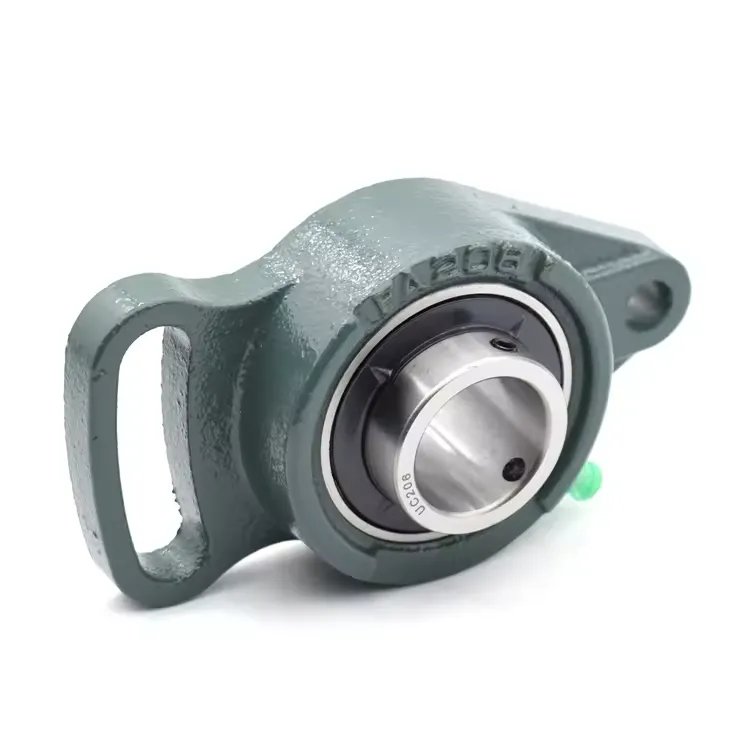

Housing units UCFA, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for swivel motion
d |
26,99 mm
|
Bore diameter |
L |
144 mm
|
Length total |
U |
40,2 mm
|
Total height unit |
≈m |
0,94 kg
|
Weight |
N |
12 mm
|
Fixing bore |
N1 |
58 mm
|
Length (slot) |
N2 |
12 mm
|
Width (slot) |
J |
117 mm
|
Distance fixing bore |
A1 |
14 mm
|
Thickness of flange |
A2 |
18 mm
|
Distance raceway |
A |
31 mm
|
Height housing |
V |
80 mm
|
Shoulder diameter housing |
W |
72 mm
|
Width housing slot side |
Q |
M6
|
Connection thread for lubrication |
Tmin |
-20 °C
|
Operating temperature min. |
Tmax |
120 °C
|
Operating temperature max. |
