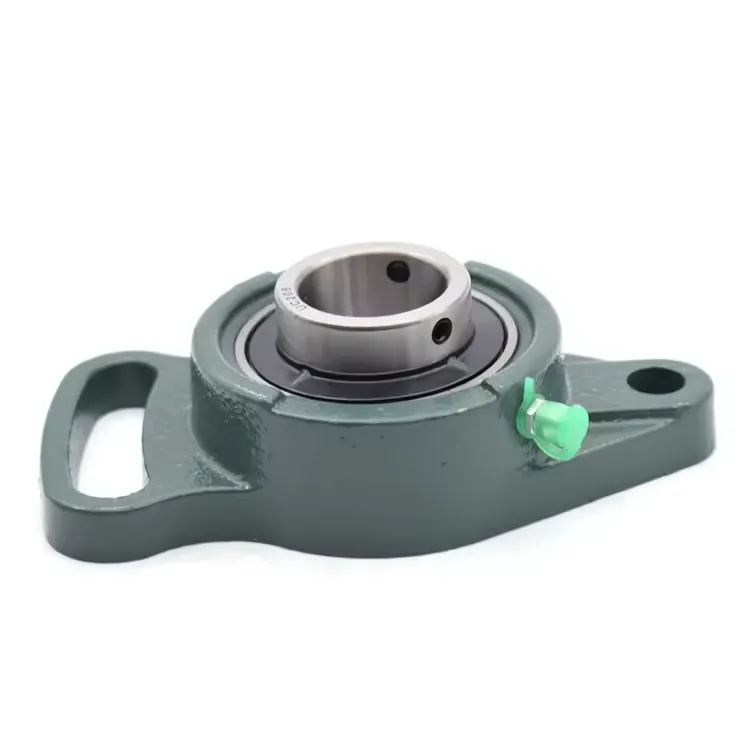

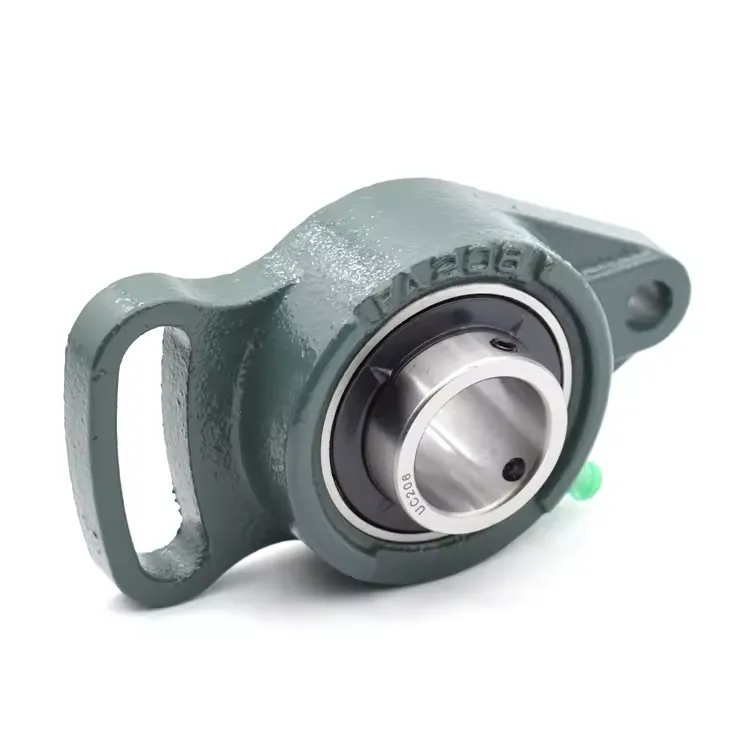

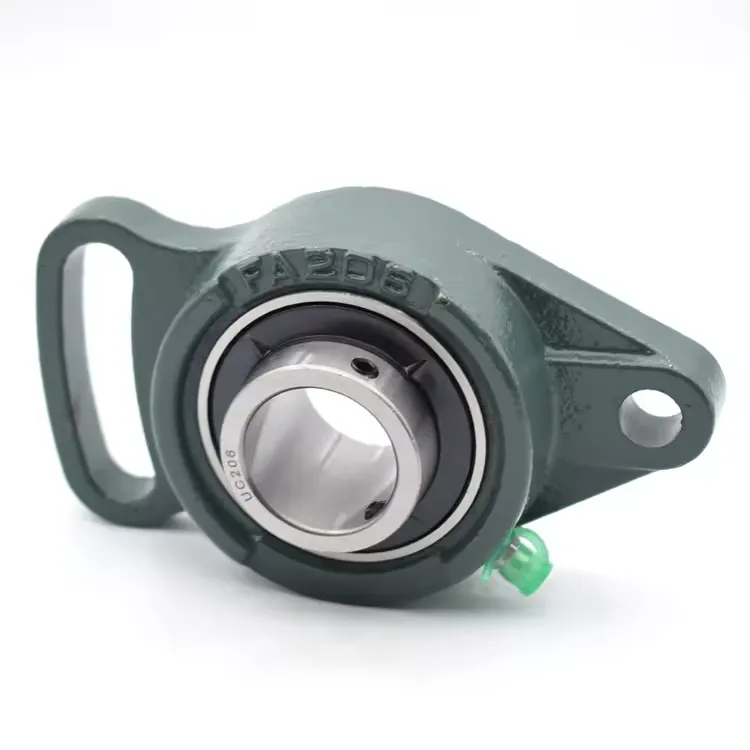

UCFA202 Take Up Housing Bearing Unit Pillow Block Bearing

down load to pdf

Details

Tags

Housing units UCFA, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for swivel motion





d
15 mm
 Bore diameter
L
98 mm
 Length total
U
33,3 mm
 Total height unit
≈m
430 g
 Weight
N
10 mm
 Fixing bore
N1
40 mm
 Length (slot)
N2
10 mm
 Width (slot)
J
78 mm
 Distance fixing bore
A1
12 mm
 Thickness of flange
A2
15 mm
 Distance raceway
A
25,5 mm
 Height housing
V
60 mm
 Shoulder diameter housing
W
50 mm
 Width housing slot side
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
