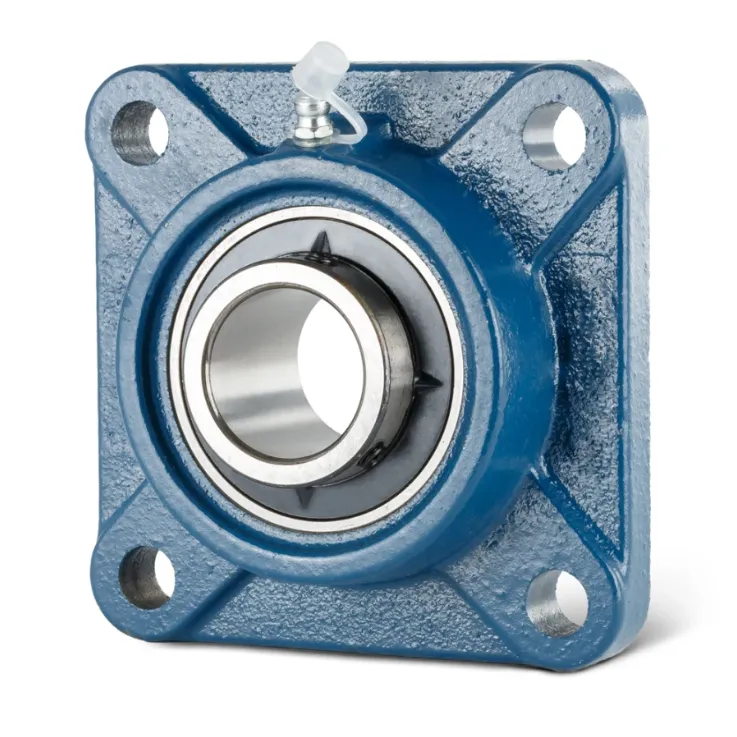

UCF218 Cast Iron Flange Housing Square Bearing Unit

down load to pdf

Details

Tags

UCF218 Cast Iron Flange Housing Square Bearing Unit

d
90 mm
 Bore diameter
L
235 mm
 Flange width
U
96.3 mm
 Total height unit
Cr
102,000 N
 Basic dynamic load rating, radial
C0r
72,000 N
 Basic static load rating, radial
Cur
2,700 N
 Fatigue load limit, radial
≈m
10.7 kg
 Weight

UCF218 Cast Iron Flange Housing Square Bearing Unit

J
187 mm
 Distance fixing bore
N
23 mm
 Fixing bore
N1
187 mm
 Distance fixing bore
n
4
 Number of screwing holes
A
68 mm
 Height housing
A1
26 mm
 Thickness of flange
A2
40 mm
 Distance raceway
B
96.3 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
