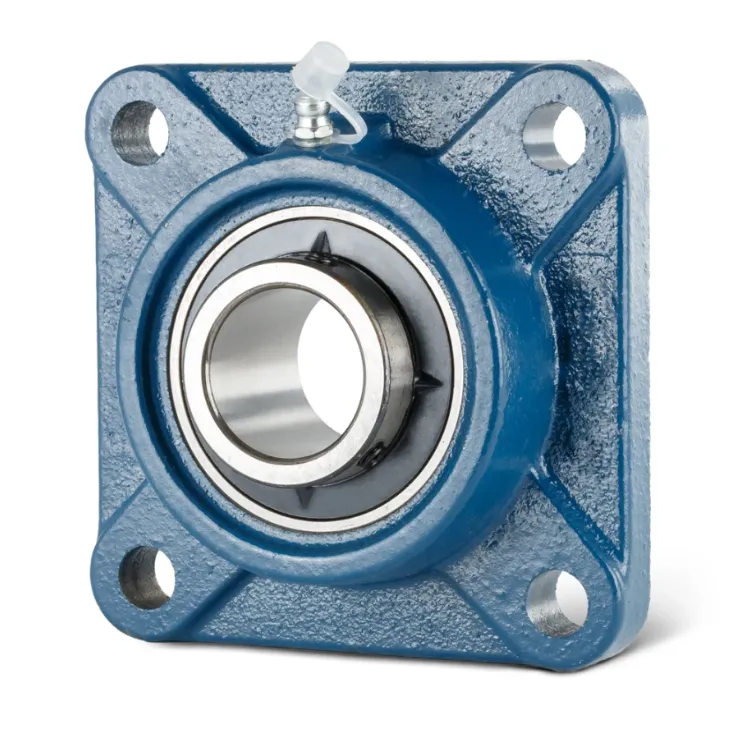

UCF217-53 4-Bolt Flange Housing Square Bearing

down load to pdf

Details

Tags

UCF217-53 4-Bolt Flange Housing Square BearingUCF217-53 4-Bolt Flange Housing Square Bearing



d
84,137 mm
 Bore diameter
L
220 mm
 Flange width
U
87,6 mm
 Total height unit
Cr
88.000 N
 Basic dynamic load rating, radial
C0r
64.000 N
 Basic static load rating, radial
Cur
2.490 N
 Fatigue load limit, radial
≈m
9,1 kg
 Weight
J
175 mm
 Distance fixing bore
N
23 mm
 Fixing bore
N1
175 mm
 Distance fixing bore
n
4
 Number of screwing holes
A
63 mm
 Height housing
A1
26 mm
 Thickness of flange
A2
36 mm
 Distance raceway
B
87,6 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
