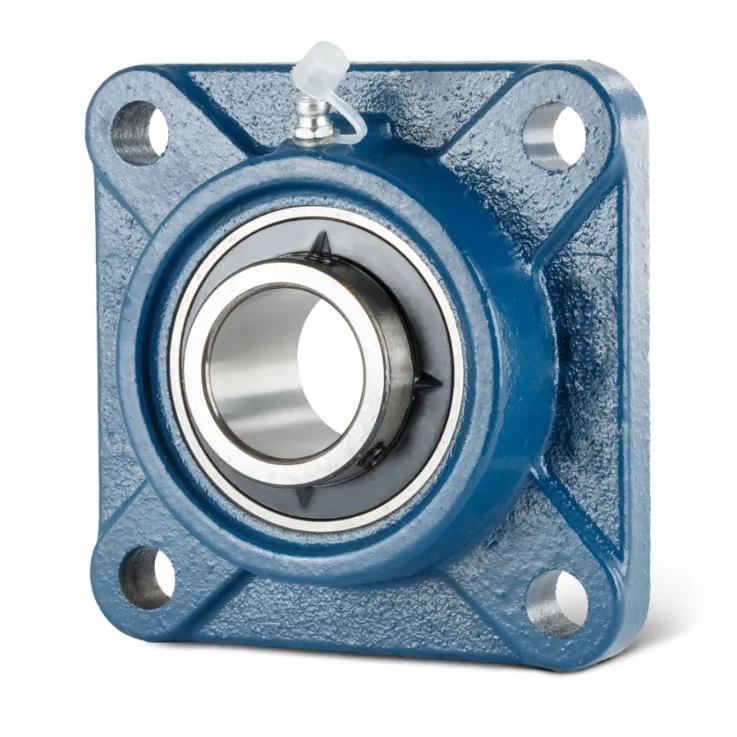

UCF216-51 Flange Housing Square Bearing

down load to pdf

Details

Tags

UCF216-51 Flange Housing Square BearingUCF216-51 Flange Housing Square Bearing



d
80,962 mm
 Bore diameter
L
208 mm
 Flange width
U
83,3 mm
 Total height unit
Cr
76.000 N
 Basic dynamic load rating, radial
C0r
54.000 N
 Basic static load rating, radial
Cur
2.190 N
 Fatigue load limit, radial
≈m
7,3 kg
 Weight
J
165 mm
 Distance fixing bore
N
23 mm
 Fixing bore
N1
165 mm
 Distance fixing bore
n
4
 Number of screwing holes
A
58 mm
 Height housing
A1
24 mm
 Thickness of flange
A2
34 mm
 Distance raceway
B
83,3 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
