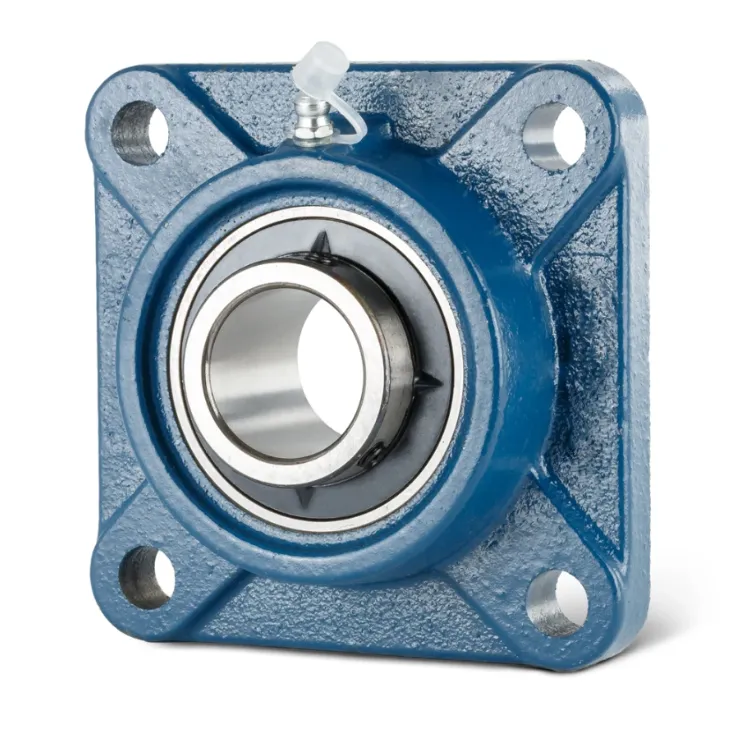

UCF215 Cast Iron Flange Housing Square Bearing Unit

down load to pdf

Details

Tags

d
75 mm
 Bore diameter
L
200 mm
 Flange width
U
78,5 mm
 Total height unit
Cr
66.000 N
 Basic dynamic load rating, radial
C0r
44.500 N
 Basic static load rating, radial
Cur
1.880 N
 Fatigue load limit, radial
≈m
6,7 kg
 Weight

J
159 mm
 Distance fixing bore
N
19 mm
 Fixing bore
N1
159 mm
 Distance fixing bore
n
4
 Number of screwing holes
A
56 mm
 Height housing
A1
24 mm
 Thickness of flange
A2
34 mm
 Distance raceway
B
78,5 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
