UCF215-47 4-Bolt Block Unit Flange Bearing

Shaft Diameter:2-15/16 in
Bolt Size:3/4 in
Bearing :UC215-47
Housing:F214
Housing Material:Cast Iron
Insert Material:Chrome Steel SAE-52100
Lubrication:Chevron SRI-2 Grease
Static Load:10,075 lbf
Dynamic Load:13.956 lbf
Speed Limit:2,300 RPM

Details

Tags

PRODUCT DESCRIPTION

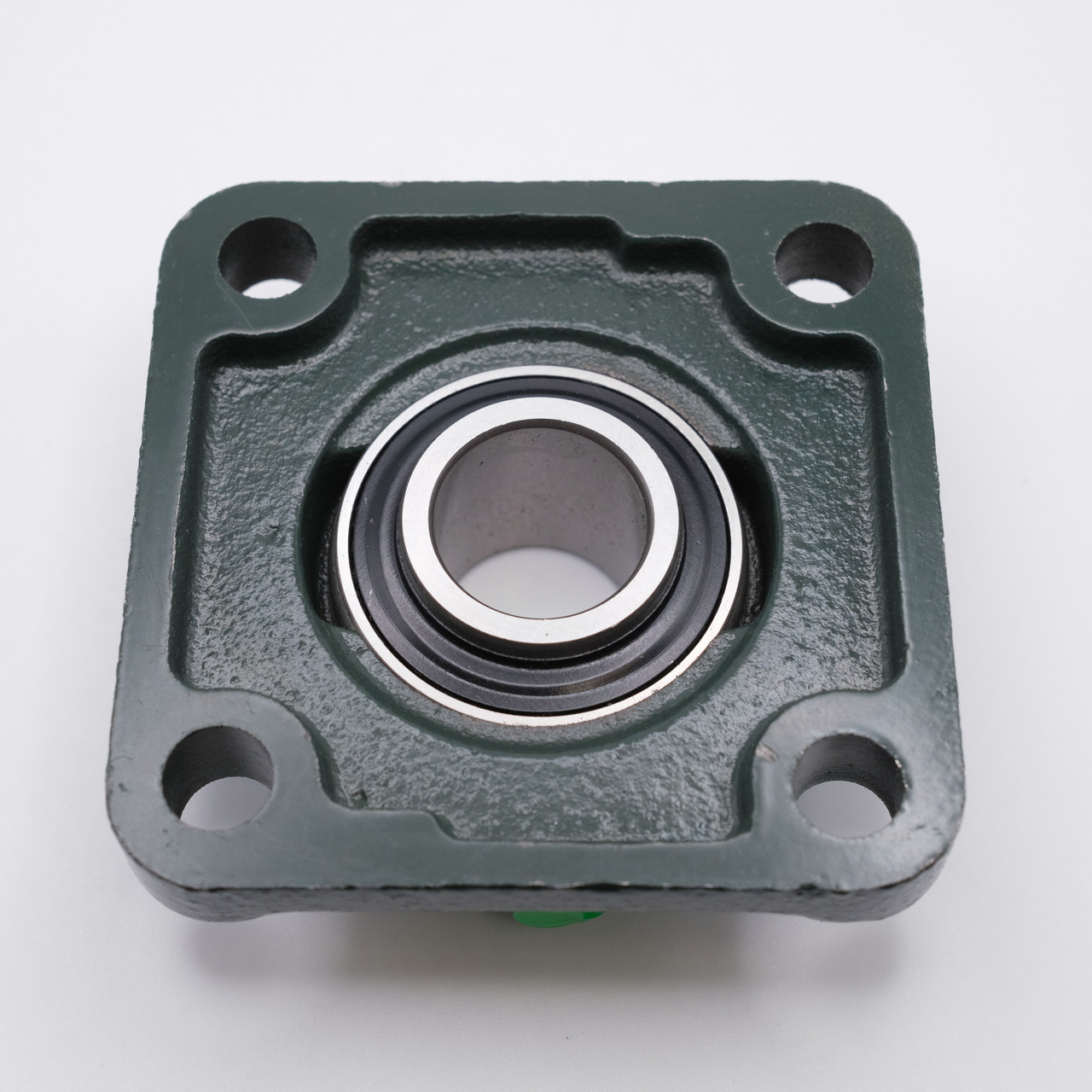

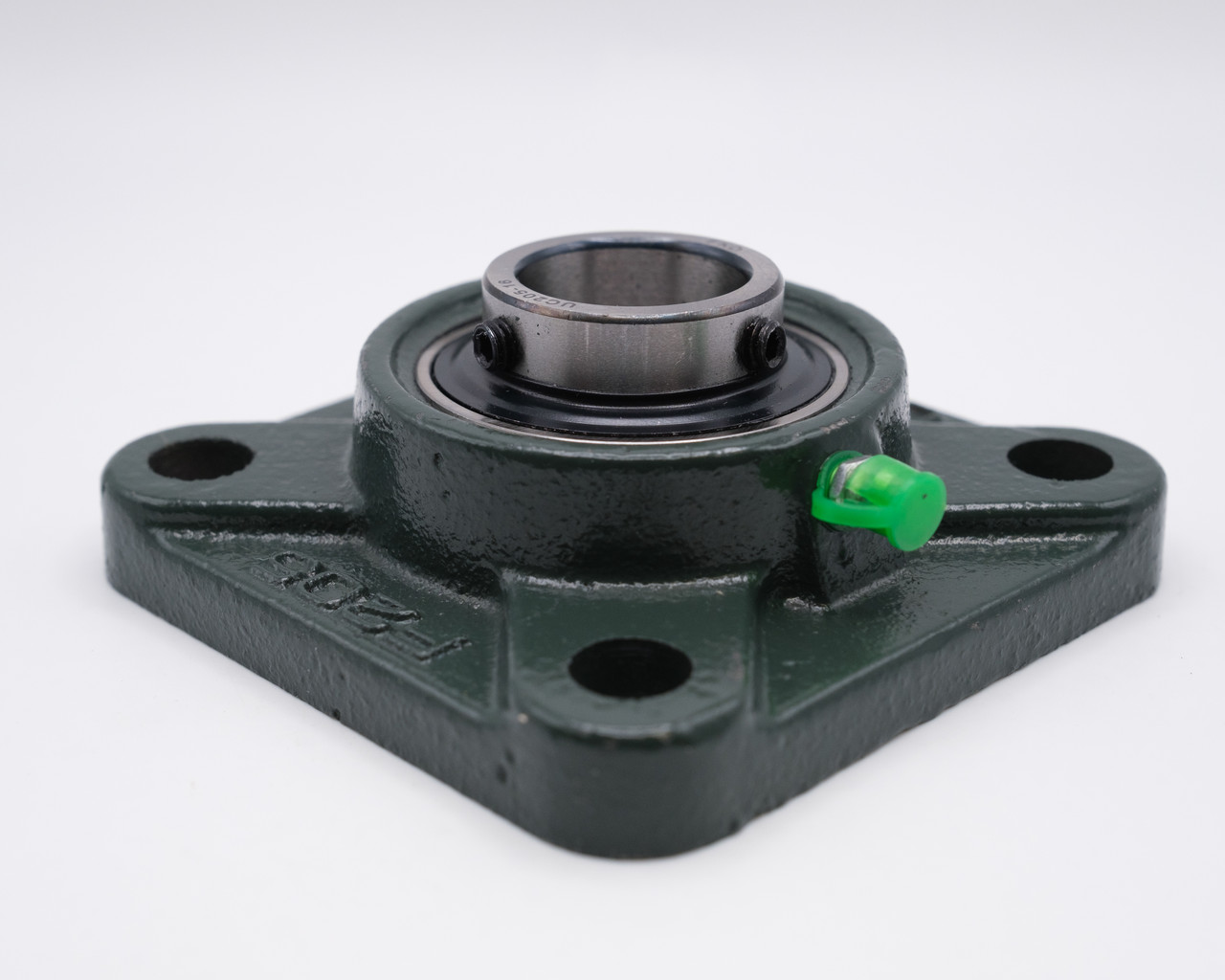

UCF215-47 4-Bolt Flanged Mounted Block Unit
Key Features
UCF215-47 is a 4-Bolt Flange Unit with a wide inner ring with two set screws. This unit features a Cast Iron 4-Bolt Flange Housing and a Chrome Steel Insert, complete with a slinger seal design and an anti-rotation device. The insert has been manufactured with two set screws, located on the extended inner ring, which can be tightened onto a shaft. This mounted block unit has been equipped with a grease feed, allowing for re-lubrication of the bearing if necessary. Our UCF215-47 Mounted Block Bearings are pre-lubricated with Grease, allowing them to be ready for immediate use upon arrival.



Application:UCF215-47 bearings unit can used for construction equipment, agricultural equipment, forestry, aggregate, conveyor systems,etc.



We can produce other Flange Mount Bearings such as:
UCF205 UCF205-13 UCF205-14 UCF205-15 UCF205-16
UCF206 UCF206-17 UCF206-18 UCF206-19 UCF206-20
UCF207 UCF207-20 UCF207-21 UCF207-22 UCF207-23
UCF208 UCF208-24 UCF208-25
UCF209 UCF209-26 UCF209-27 UCF209-28
UCF210 UCF210-29 UCF210-30 UCF210-31 UCF210-32
UCF211 UCF211-32 UCF211-33 UCF211-34 UCF211-35
UCF212 UCF212-36 UCF212-37 UCF212-38 UCF212-39
UCF213 UCF213-40 UCF213-41
UCF214 UCF214-42 UCF214-43 UCF214-44
UCF215 UCF215-45 UCF215-46 UCF215-47 UCF215-48
UCF216 UCF216-50
UCF217 UCF217-52
UCF218 UCF218-56
4 Bolt Flange Bearing
