UCF214-42 4-Bolt Flange Housing Square Bearing

down load to pdf

Details

Tags

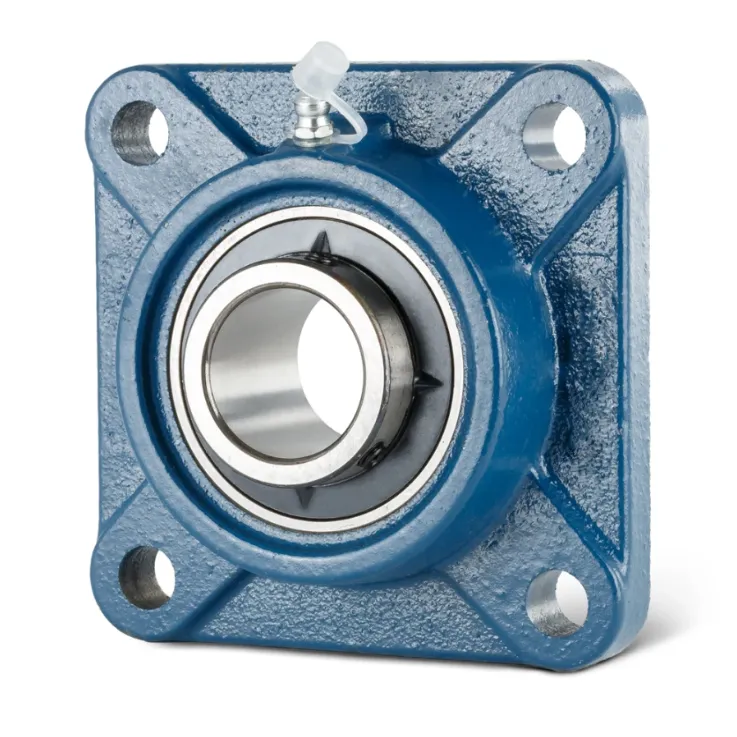

UCF214-42 4-Bolt Flange Housing Square Bearing

Click Above for Full Dimensions





UCF214-42 4-Bolt Flange Housing Square BearingUCF214-42 4-Bolt Flange Housing Square Bearing



d
66,675 mm
 Bore diameter
L
193 mm
 Flange width
U
75,4 mm
 Total height unit
Cr
66.000 N
 Basic dynamic load rating, radial
C0r
44.000 N
 Basic static load rating, radial
Cur
2.300 N
 Fatigue load limit, radial
≈m
6,19 kg
 Weight
J
152 mm
 Distance fixing bore
N
19 mm
 Fixing bore
N1
152 mm
 Distance fixing bore
n
4
 Number of screwing holes
A
54 mm
 Height housing
A1
24 mm
 Thickness of flange
A2
31 mm
 Distance raceway
B
75,4 mm
 Width
Q
M6
 Connection thread for lubrication
