UCF20
  • UCF20

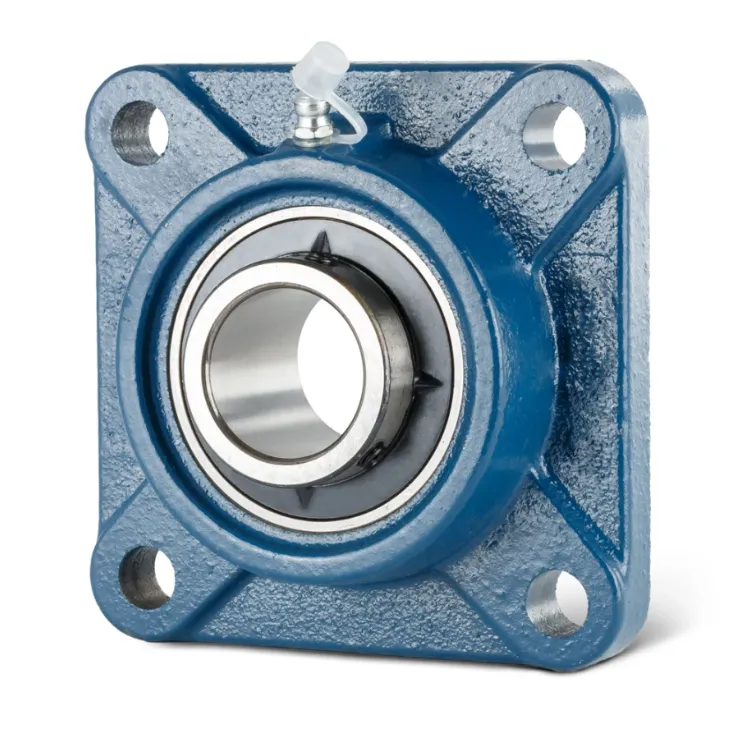

UCF211-34 4-Bolt Flange Housing Square Bearing

down load to pdf

Details

Tags

Click Above for Full Dimensions







d
53,975 mm
 Bore diameter
L
163 mm
 Flange width
U
58,4 mm
 Total height unit
Cr
43.500 N
 Basic dynamic load rating, radial
C0r
29.000 N
 Basic static load rating, radial
Cur
1.240 N
 Fatigue load limit, radial
≈m
3,35 kg
 Weight
J
130 mm
 Distance fixing bore
N
19 mm
 Fixing bore
N1
130 mm
 Distance fixing bore
n
4
 Number of screwing holes
A
43 mm
 Height housing
A1
20 mm
 Thickness of flange
A2
25 mm
 Distance raceway
B
55,6 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
