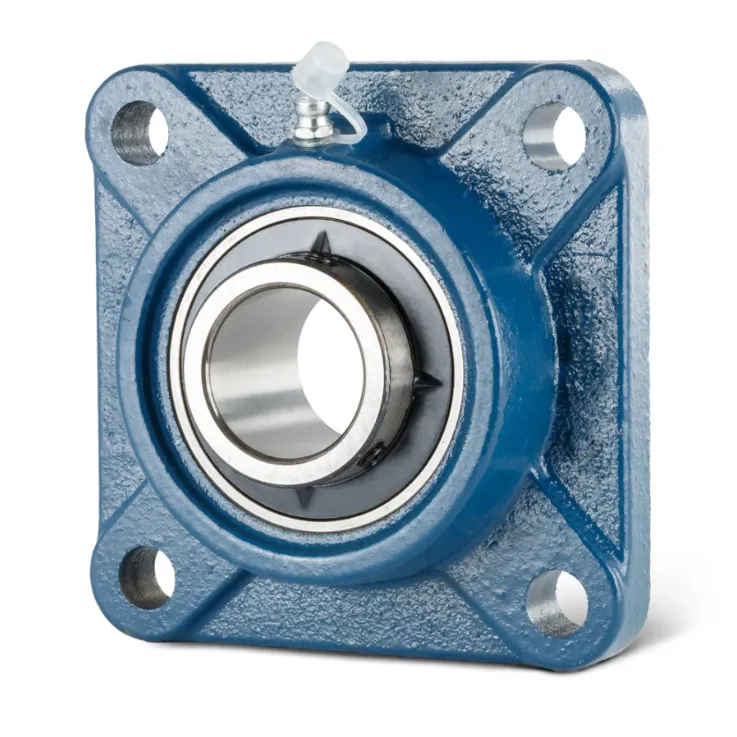

UCF210 Cast Iron Flange Housing Square Bearing Unit

Details

Tags

d
50 mm
Bore diameter
L
143 mm
Flange width
U
54.6 mm
Total height unit
Cr
35,000 N
Basic dynamic load rating, radial
C0r
23,200 N
Basic static load rating, radial
Cur
990 N
Fatigue load limit, radial
≈m
2.601 kg
Weight

J
111 mm
Distance fixing bore
N
16 mm
Fixing bore
N1
111 mm
Distance fixing bore
n
4
Number of screwing holes
A
40 mm
Height housing
A1
18 mm
Thickness of flange
A2
22 mm
Distance raceway
B
51.6 mm
Width
Q
M6
Connection thread for lubrication
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
