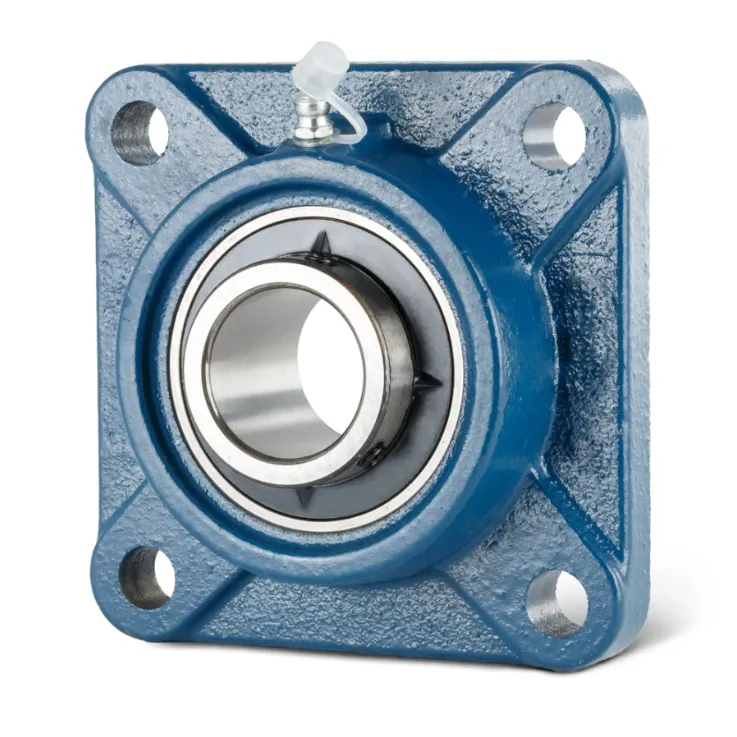

UCF209-27 4-Bolt Flange Housing Square Bearing

Details

Tags

Click Above for Full Dimensions







d
42.862 mm
Bore diameter
L
137 mm
Flange width
U
52.2 mm
Total height unit
Cr
32,500 N
Basic dynamic load rating, radial
C0r
20,400 N
Basic static load rating, radial
Cur
870 N
Fatigue load limit, radial
≈m
2.337 kg
Weight
J
105 mm
Distance fixing bore
N
16 mm
Fixing bore
N1
105 mm
Distance fixing bore
n
4
Number of screwing holes
A
38 mm
Height housing
A1
18 mm
Thickness of flange
A2
22 mm
Distance raceway
B
49.2 mm
Width
Q
M6
Connection thread for lubrication
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
