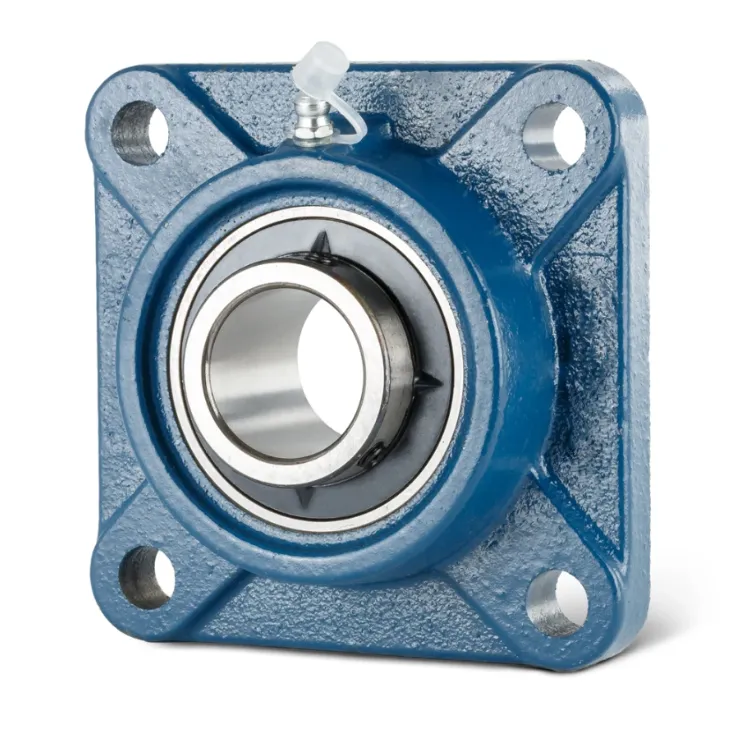

UCF209-26 4-Bolt Flange Housing Square Bearing

down load to pdf

Details

Tags

UCF209-26 4-Bolt Flange Housing Square Bearing

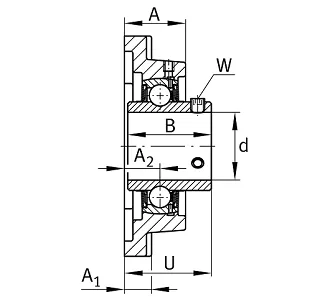

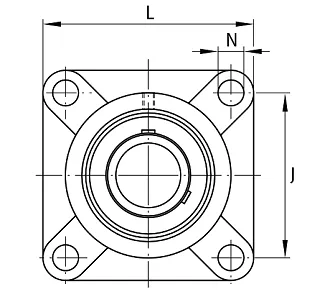

Click Above for Full Dimensions





UCF209-26 4-Bolt Flange Housing Square BearingUCF209-26 4-Bolt Flange Housing Square Bearing



d
41.275 mm
 Bore diameter
L
137 mm
 Flange width
U
52.2 mm
 Total height unit
Cr
32,500 N
 Basic dynamic load rating, radial
C0r
20,400 N
 Basic static load rating, radial
Cur
870 N
 Fatigue load limit, radial
≈m
2.377 kg
 Weight
J
105 mm
 Distance fixing bore
N
16 mm
 Fixing bore
N1
105 mm
 Distance fixing bore
n
4
 Number of screwing holes
A
38 mm
 Height housing
A1
18 mm
 Thickness of flange
A2
22 mm
 Distance raceway
B
49.2 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
