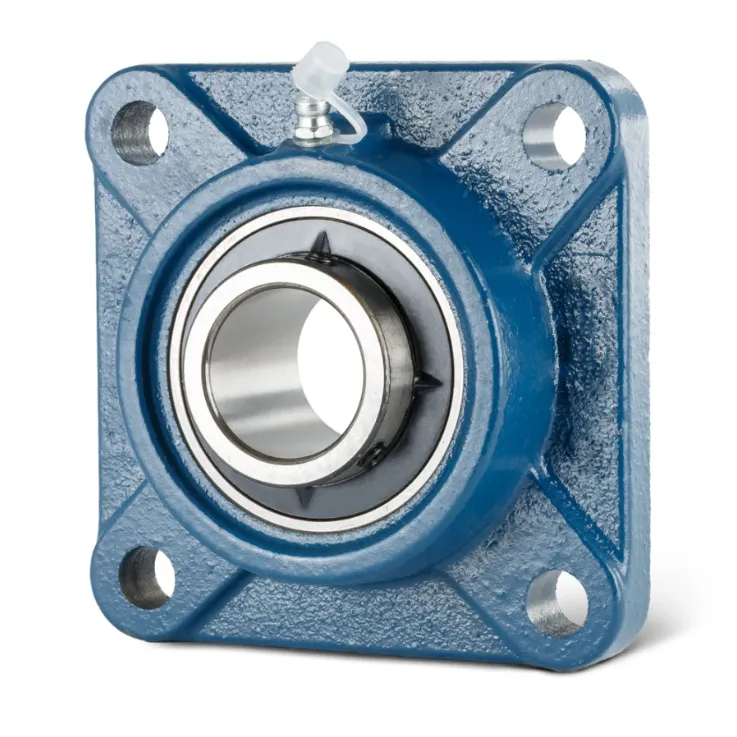

UCF208 Cast Iron Flange Housing Square Bearing Unit

down load to pdf

Details

Tags

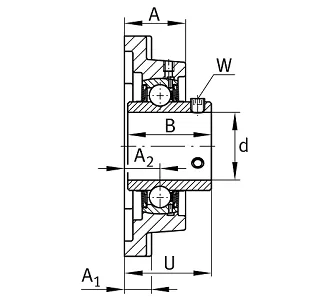

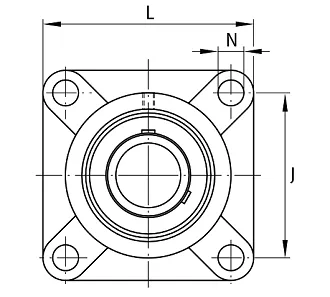

d
40 mm
 Bore diameter
L
130 mm
 Flange width
U
51,2 mm
 Total height unit
Cr
32.500 N
 Basic dynamic load rating, radial
C0r
19.800 N
 Basic static load rating, radial
Cur
840 N
 Fatigue load limit, radial
≈m
1,934 kg
 Weight

J
102 mm
 Distance fixing bore
N
16 mm
 Fixing bore
n
4
 Number of screwing holes
A
36 mm
 Height housing
A1
16 mm
 Thickness of flange
A2
21 mm
 Distance raceway
B
49,2 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
