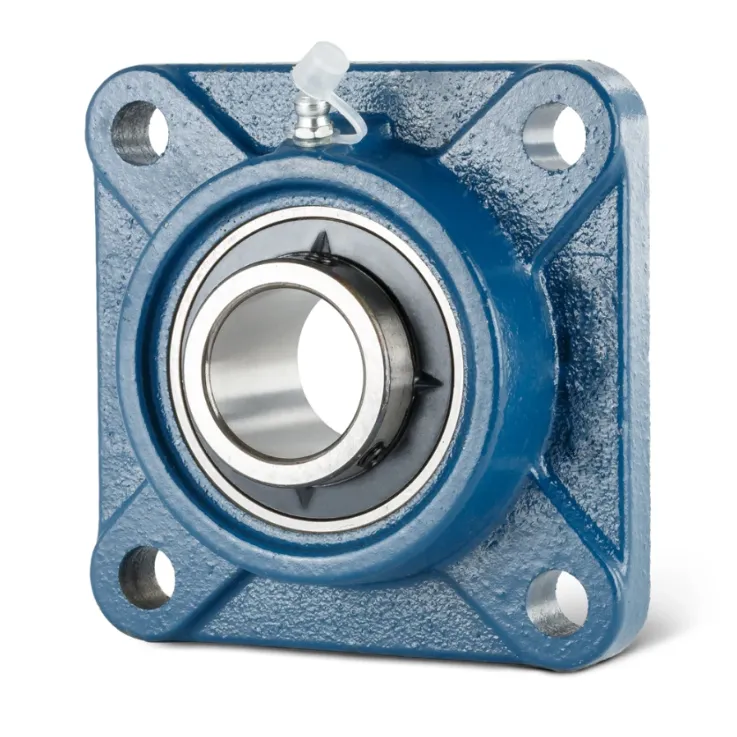

UCF208-24 4-Bolt Flange Housing Square Bearing

Details

Tags

Click Above for Full Dimensions







d
38,1 mm
Bore diameter
L
130 mm
Flange width
U
51,2 mm
Total height unit
Cr
32.500 N
Basic dynamic load rating, radial
C0r
19.800 N
Basic static load rating, radial
Cur
840 N
Fatigue load limit, radial
≈m
1,986 kg
Weight
J
102 mm
Distance fixing bore
N
16 mm
Fixing bore
N1
102 mm
Distance fixing bore
n
4
Number of screwing holes
A
36 mm
Height housing
A1
16 mm
Thickness of flange
A2
21 mm
Distance raceway
B
49,2 mm
Width
Q
M6
Connection thread for lubrication
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
