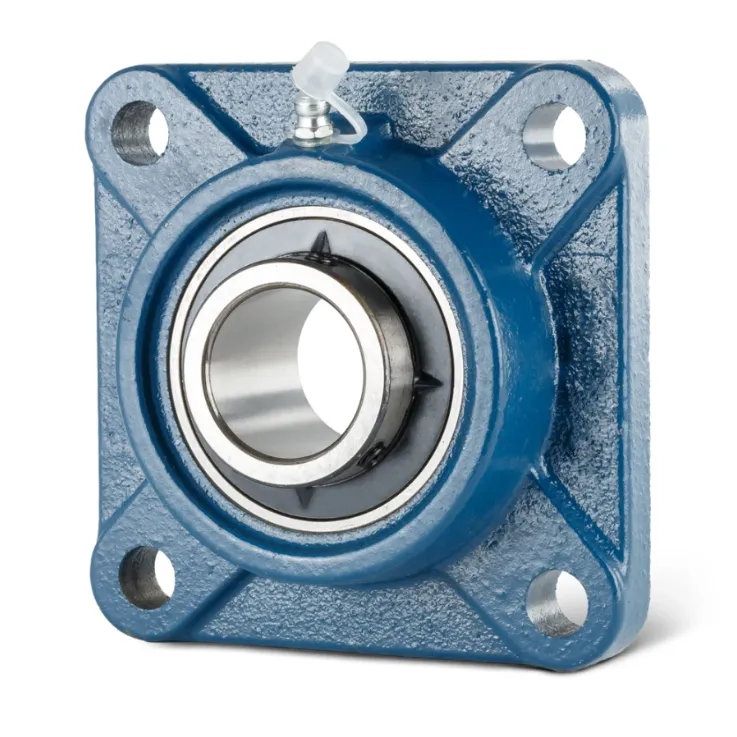

UCF207-20 4-Bolt Flange Housing Square Bearing

Details

Tags

d
31,75 mm
Bore diameter
L
117 mm
Flange width
U
44,4 mm
Total height unit
Cr
27.500 N
Basic dynamic load rating, radial
C0r
15.300 N
Basic static load rating, radial
Cur
800 N
Fatigue load limit, radial
≈m
1,531 kg
Weight
J
92 mm
Distance fixing bore
N
14 mm
Fixing bore
N1
92 mm
Distance fixing bore
n
4
Number of screwing holes
A
34 mm
Height housing
A1
16 mm
Thickness of flange
A2
19 mm
Distance raceway
B
42,9 mm
Width
Q
M6
Connection thread for lubrication
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
