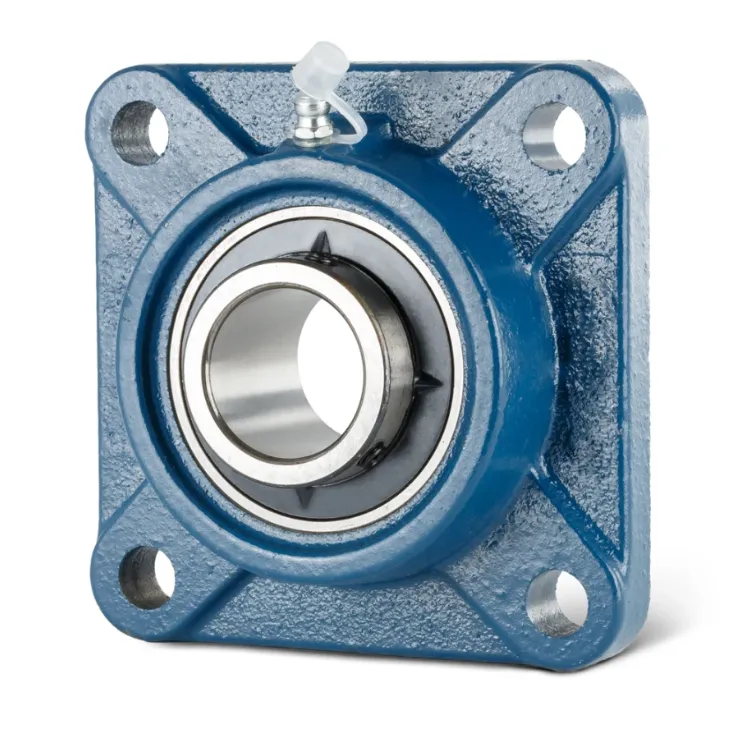

UCF206 Cast Iron Flange Housing Square Bearing Unit

down load to pdf

Details

Tags

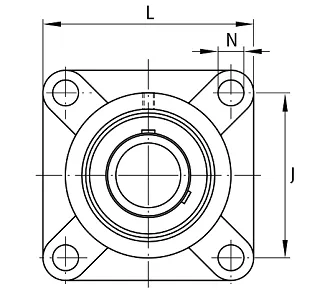

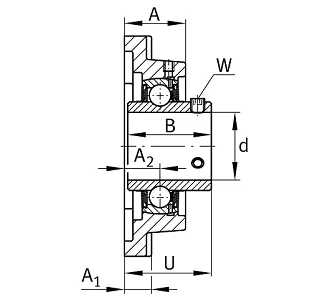

d
30 mm
 Bore diameter
L
108 mm
 Flange width
U
40,2 mm
 Total height unit
Cr
19.500 N
 Basic dynamic load rating, radial
C0r
11.300 N
 Basic static load rating, radial
Cur
480 N
 Fatigue load limit, radial
≈m
1,11 kg
 Weight

J
83 mm
 Distance fixing bore
N
12 mm
 Fixing bore
N1
83 mm
 Distance fixing bore
n
4
 Number of screwing holes
A
31 mm
 Height housing
A1
14 mm
 Thickness of flange
A2
18 mm
 Distance raceway
B
38,1 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
