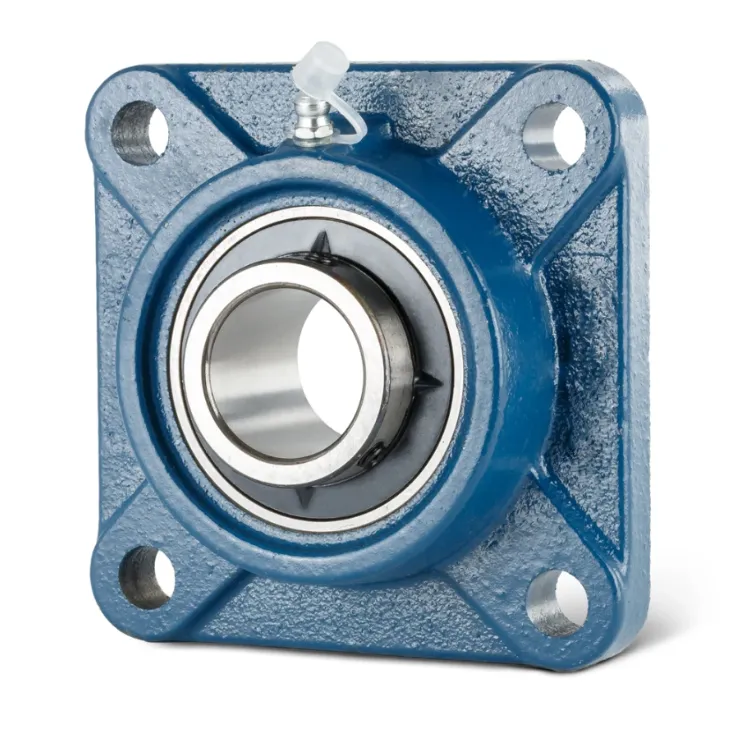

UCF201-08 Flange Housing Square Bearing Unit

down load to pdf

Details

Tags

UCF201-08 Flange Housing Square Bearing Unit

d
12.7 mm
 Bore diameter
L
86 mm
 Flange width
U
33.3 mm
 Total height unit
Cr
12,800 N
 Basic dynamic load rating, radial
C0r
6,600 N
 Basic static load rating, radial
Cur
345 N
 Fatigue load limit, radial
≈m
0.62 kg
 Weight

UCF201-08 Flange Housing Square Bearing Unit

J
64 mm
 Distance fixing bore
N
12 mm
 Fixing bore
N1
64 mm
 Distance fixing bore
n
4
 Number of screwing holes
A
25.5 mm
 Height housing
A1
12 mm
 Thickness of flange
A2
15 mm
 Distance raceway
B
31 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
