GCS2576 GCS3086 GCS3596 Engine Overrunning Clutch For Shaft Roller Type Plectrum
  • GCS2576 GCS3086 GCS3596 Engine Overrunning Clutch For Shaft Roller Type Plectrum
  • GCS Roller Type Plectrum Overrunning Clutch

Two way transcendor clutch bearing GCS2576 GCS3086 GCS3596 GCS40110

Features Of Overrrunning Clutch Bearing

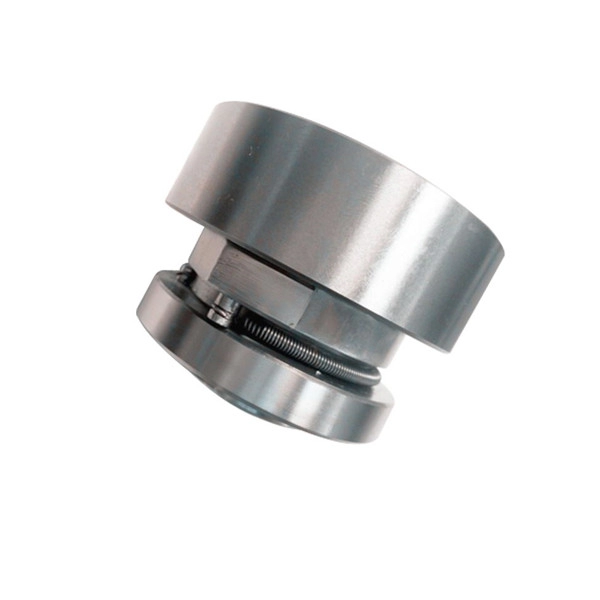

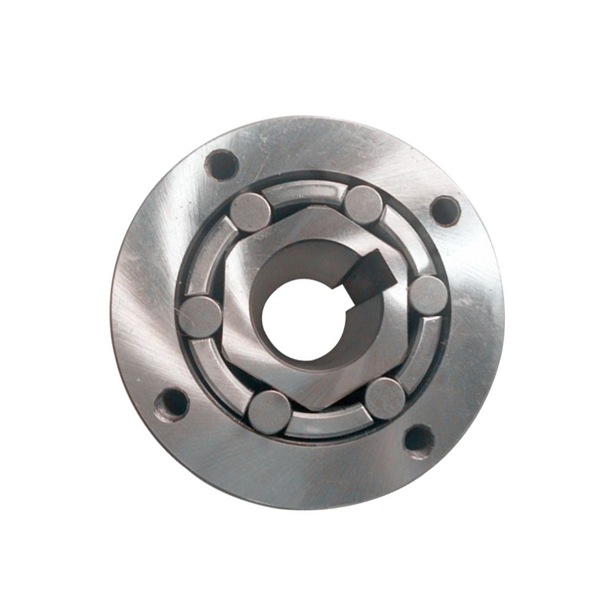

Type " GCS “ Is A Roller Type Plectrum Over-Running Clutch With Bearing Supported.

Working Principle:

Driving Nit Drive Unit To Rotate , The Rotation Of Inner Race Is Controlled By Plectrum. When Plectrum Affected , Driven Unit Stop Prorogating While Drives Unit Remains Working.

Application :

Feeding, Intermission, Stampling, Packaging Equipment , Etc .

Details

Tags

High Light: GCS2576 GCS3086 GCS3596 GCS40110

Name:
GCS Roller Type Plectrum Overrunning Clutch
Material:
GCR 15 Bearing Steel
Type:
One Way Bearings
Torque (Nm):
49-2819
Weight (Kg):
1.1-26.52
Bore Size(mm):
25-70



Tapered Roller Bearings Are Widely Used In Automobile, Rolling Mill, Mining, Metallurgy, Plastic Machinery And Other Industries



Tapered Roller Bearings Mainly Bear The Combined Radial And Axial Loads Mainly In The Radial Direction. The Bearing Capacity Depends On The Raceway Angle Of The Outer Ring, And The Larger The Angle, The Greater The Bearing Capacity. This Type Of Bearing Is A Separable Bearing, Which Is Divided Into Single-Row, Double-Row And Four-Row Tapered Roller Bearings According To The Number Of Rows Of Rolling Elements In The Bearing. The Clearance Of Single-Row Tapered Roller Bearings Needs To Be Adjusted By The User During Installation; The Clearance Of Double-Row And Four-Row Tapered Roller Bearings Has Been Given According To The User's Requirements When The Product Leaves The Factory, And Does Not Need To Be Adjusted By The User.

Item GCS
Material GCr15
Inner dia. 25-70 mm
Outer dia. 76-225 mm
Thickness 54-135 mm
Weight 1.1-26.52 kg
Torque 49-2819 Nm
Overrunning speed(inner race) 266-1000 r/min
Overrunning speed(outer race) 168-595 r/min
Package Singer package or as your reuirements
Delivery time 15-20 days



Products Parameters
Model Torque Overrunning Speed (r/min) Dimensions (mm) Weight
Nm Outer race Inner race d D1 D L L1 N bxt H kg
GCS2576 49 595 1000 25 64 76 54 24.5 M6 8x3.3 15 1.1
GCS3086 60 525 850 30 74 86 55 26 M8 10x3.3 16 1.5
GCS3596 100 410 720 35 84 96 68 30 M8 10x3.3 16 3.07
GCS40110 160 386 684 40 95 110 80 38 M10 12x3.3 18 4.68
GCS45125 246 346 630 45 112 125 85 42 M10 12x3.3 18 5.65
GCS50140 380 335 605 50 120 140 96 50 M12 14x3.8 20 7.63
GCS55160 613 290 505 55 140 160 108 56 M14 14x3.8 20 10.5
GCS60180 1175 250 423 60 156 180 120 65 M14 16x4.3 20 17.89
GCS65200 1510 223 360 65 164 200 130 65 M16 16x4.3 20 20.15
GCS70225 2819 168 266 70 180 225 135 70 M18 18x4.4 20 26.52
