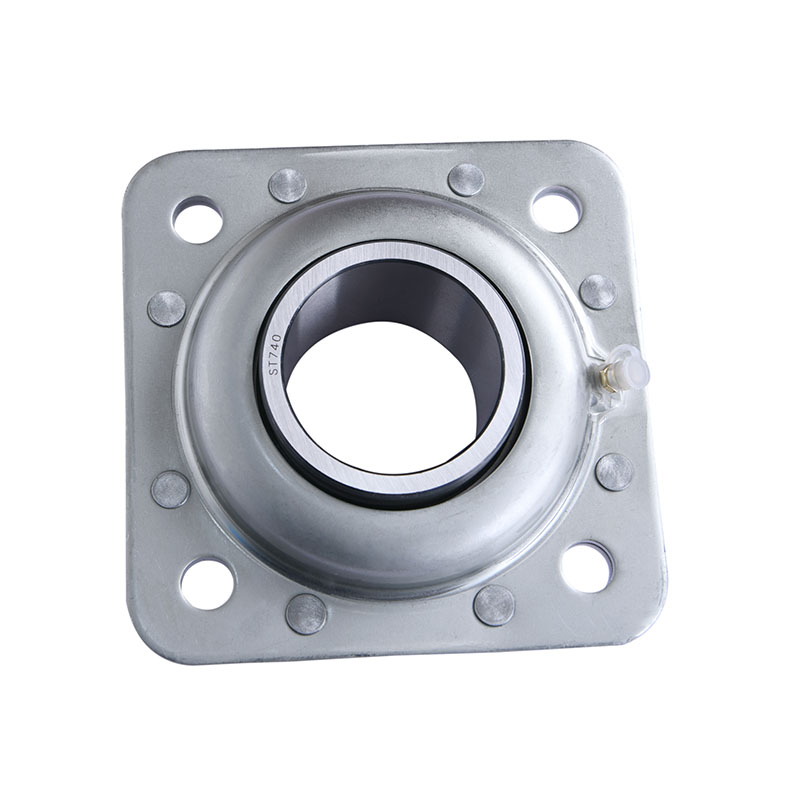

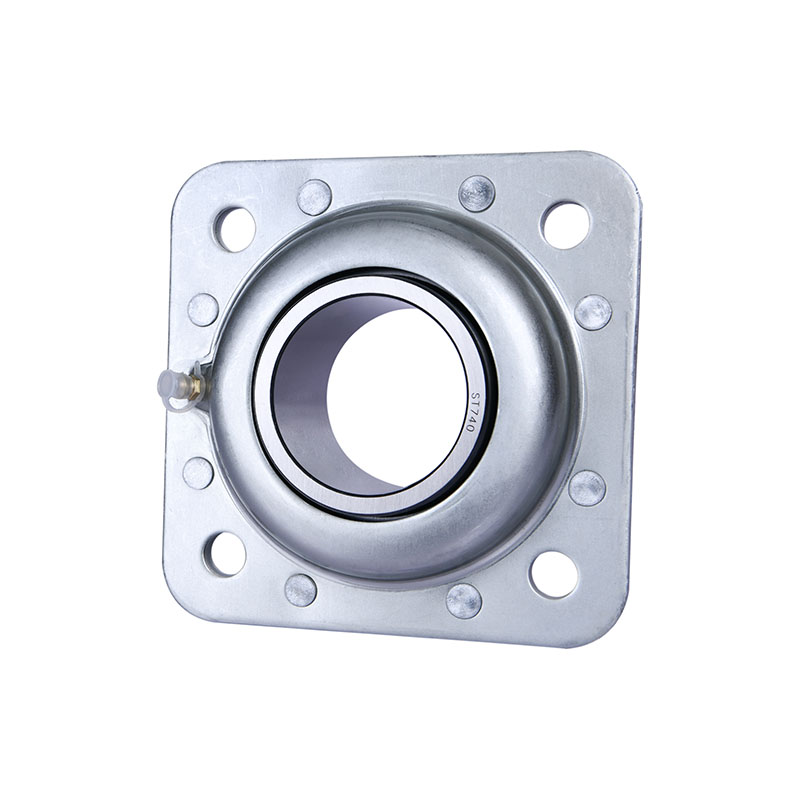

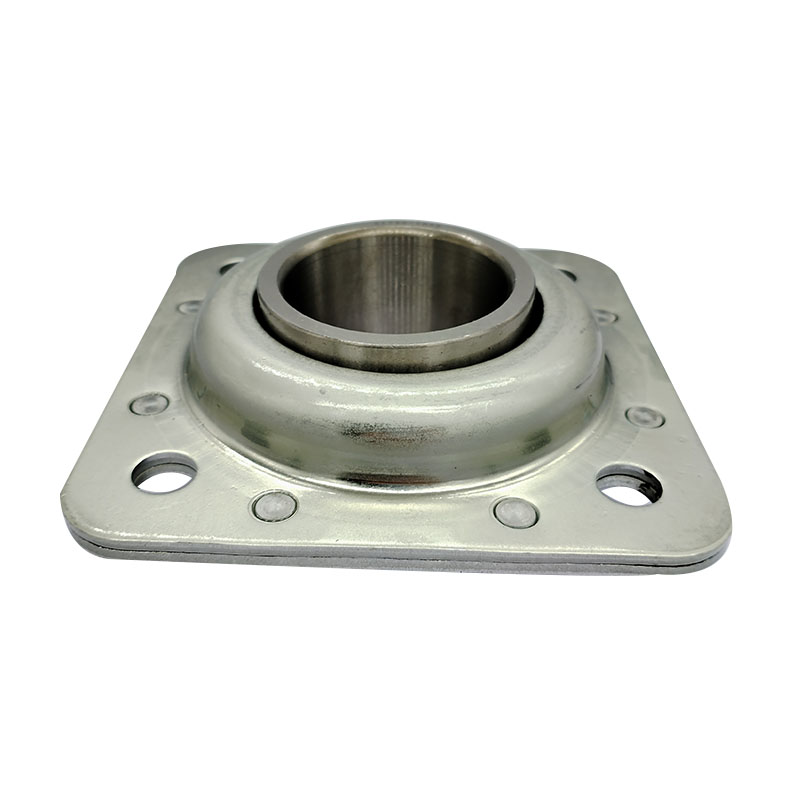

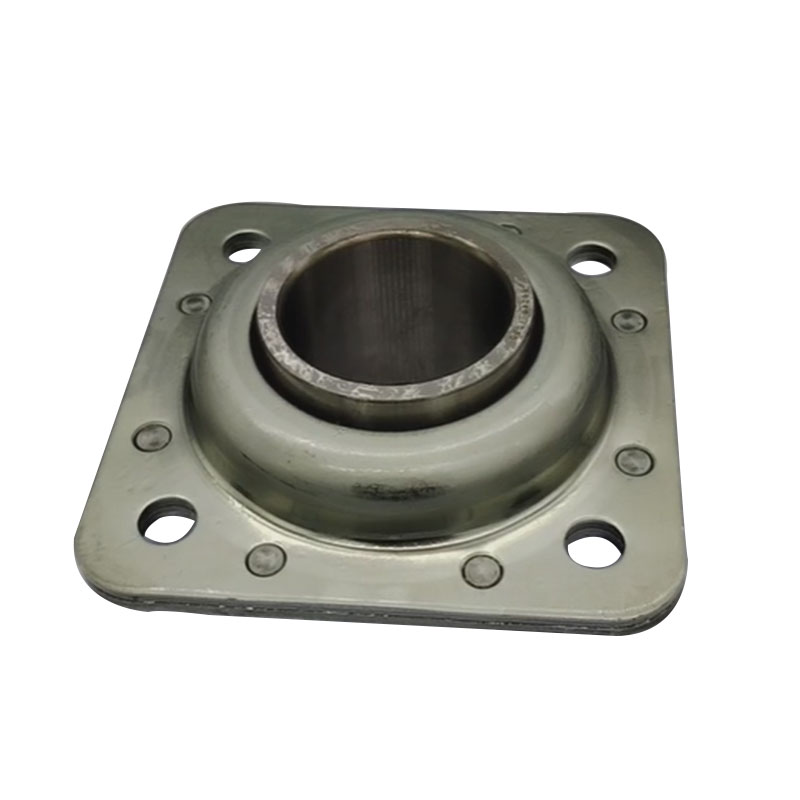

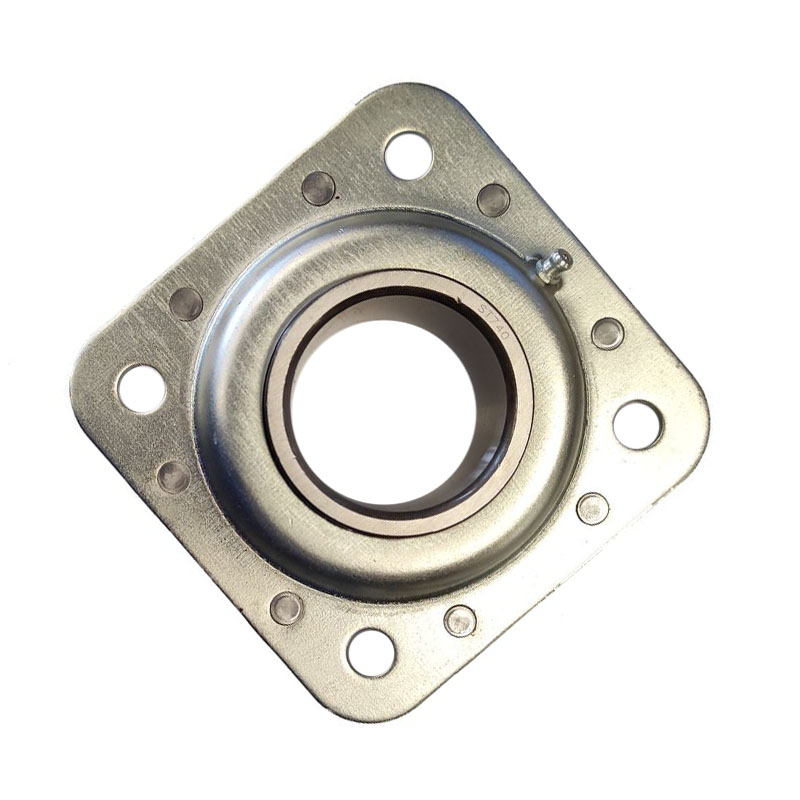

ST740/GW211PPB15 Bearing for agriculture Disc harrow

Inner diameter [d]:55,575 mm[B]:55,58 mm[C]:25 mmA:46,3 mmA1:4 mmL:140 mmN:13,5 mmBore type:CylindricalType of housing:Pressed steel

down load to pdf

Details

Tags

Dimension:



Inner diameter [d]:55,575 mm[B]:55,58 mm[C]:25 mmA:46,3 mmA1:4 mmL:140 mmN:13,5 mmBore type:CylindricalType of housing:Pressed steel





Other size of bearing:





Unit Number Shaft Size Housing Inner Ring Square Bolt Circle   Frame opening Bolt Hole Bolt Hole Weight approx.
Width Width Diameter Diameter
A B C D E t M min F Width G Length H kg
FD209RJ 1 3/4 RD 1.64 1.687 5 5 6 3.865 0.531     1.53
FD209RJA 1 3/4 RD 1.64 1.687 5 5 6 3.865 0.531     1.53
FD209RE 1 1/2 RD 1.64 1.687 5 5 6 3.865   0.531 0.687 1.58
FD209RK 1 1/4 SQ 1.64 1.687 5 5 6 3.865   0.531 0.687
FD209RM 1 1/8 SQ 1.64 1.687 5 5 6 3.865   0.531 0.687 1.86
FD210R 1 1/8 SQ 1.75 1.75 5 5 6 3.865 0.531
FD211RBA 2 3/16 RD 1.799 2.187 5.5 5.5 8 4.491 0.531     2.42
FD211REA 1 3/4 RD 1.799 2.187 5.5 5.5 8 4.491 0.531     2.67
FD211RJA 1 15/16 RDC 1.799 2.125 5.5 5.5 8 4.491 0.531     2.58
FD211RKA 1 3/4 H 1.799 2.188 5.5 5.5 8 4.491 0.531
FD211RKB 1 3/4 H 1.799 2.188 5.5 5.5 8 4.491 0.531
FD211RM 1 1/2 SQ 1.799 2 5.5 5.5 8 4.491   0.531 0.687
FD211RP 40(mm) SQ 1.799 2.006 5.5 5.5 8 4.491 0.531
ST740 2 3/16 RD 1.811 2.187 5.5 5.5 7 4.491 0.531     2.42
