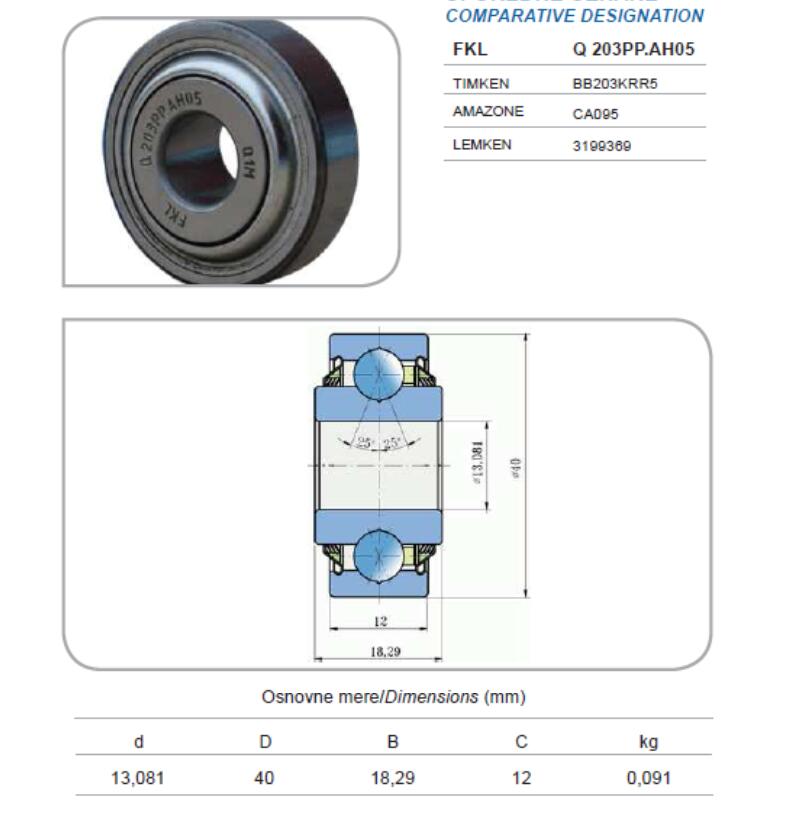

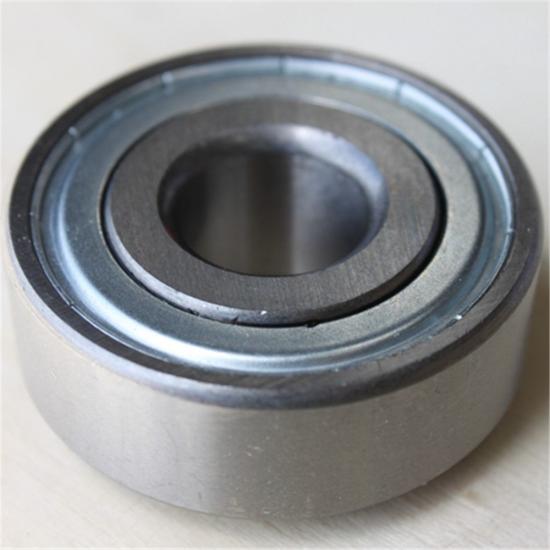

Q 203 PP AH05 Seeding Machine Bearing

13.081*40*12mm Q203PPAH05 Bearing can used for Seeding Machine.

Details

Agricultural bearings are used in conveyors, lawn mowers, combines, hay balers, planters/grain drills, augers, cotton strippers, and more. They are designed to stand up to extreme conditions and loads. There are many different designs available. Their basic components are inner and outer rings, balls, and retainers. The inner race can be round, square, or hex, and the outer race can be either cylindrical or spherical. Most agricultural bearings are sealed on both sides with single, double, or triple lip.

We Can Produce other Agricultural bearing such as:

Bearing No.	Dimensions					Weight
Bearing No.	H	D	SΦ	B	C	kg
W208PP5	29.97	80		36.53	18	0.59
W208PP6	26.13	80		36.53	18	0.66
W208PP8	29.97	80		36.53	30.18	0.7
W208PP9	26.13	80		36.53	30.18	0.76
W208PPB11	22.97	85.738	87.3	36.53	30.18	0.98
W208PPB12	22.97	85.738	87.3	36.53	30.18	0.93
W209PP5	32.77	85		36.53	30.18	0.8
W210PP4	29.97	90		30.18	30.18	0.92
W211PP3	38.87	100		33.34	33.34	1.15
W211PP5	38.87	101.6		44.45	36.53	1.641
W211PPB6	38.87	103.56	104.9	44.45	36.53	1.52
GW211PP17	38.87	100		44.45	33.34	1.34
