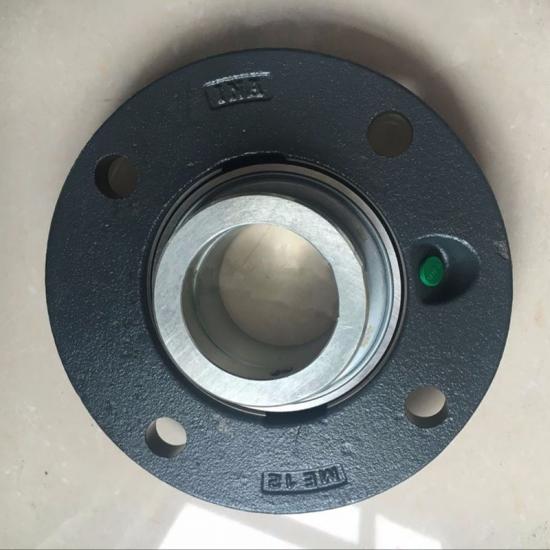

Pillow Block Bearings PME25-XL-N Bearing Block ME05 GRAE25-XL-NPP-B

Housing Units PME25-XL-N with radial insert ball bearing GRAE25-XL-NPP-B with size 25*115*31mm ,the housing material is Cast iron ,and the insert bearing material is Chrome steel

CONTACT NOW down load to pdf

Details

Tags

Housing units are the parts ready-to-fit ,they are consist of cast iron housings and the Chrome steel radial insert ball bearings,this new bearing housing can be work very well in reliability with all different operating environment, the bearings and housings are matched to each other. with the spherical outside surface of the bearing outer ring andthe concave housing bore, bearing housing is for staticangular misalignment of the shaft .The units are used predominantly as locating bearings, and the suitableas non-locating bearings under low loads and speeds.The housings are screw mounted on the adjacent construction.

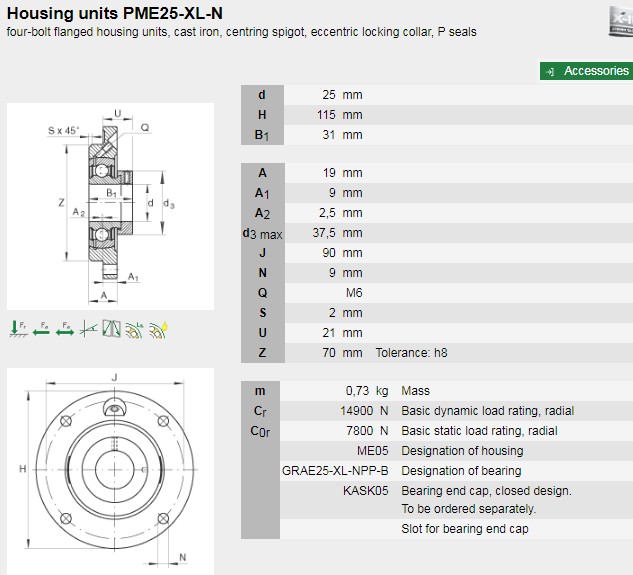

Original INA Bearing Unit PME25-XL-N Introduction :
Bearing number :PME25-XL-N
Type : Four-bolt flanged housing units
Match insert ball bearing : INA GRAE25-XL-NPP-B
Size :25*115*31mm
Material : housing with cast iron ,inset ball bearing with Chrome steel
