Introduction and application of agricultural machinery




Agricultural machinery bearings are important basic components of agricultural machinery and equipment. They are widely used in agricultural vehicles, tractors, diesel engines, electric motors, hay rake, balers, harvesters, threshers and other agricultural machinery. Its accuracy, performance, life and Reliability plays a decisive role in the accuracy, performance, life and reliability of the host.

Agricultural machinery bearings must be able to operate under extremely challenging conditions, adapting to environments ranging from dry and abrasive to humid, corrosive, and highly polluted environments. They must meet the requirements of long life and durability under heavy-load conditions to solve farm problems. They are faced with the tough challenge of reducing downtime and maintenance costs while maximizing output. Let’s learn more about it together with the construction machinery exhibition.

Characteristics of agricultural machinery bearings:

  1. Can continue to withstand continuous vibration and high impact loads;
  2. Careful and high-precision sealing design ensures reliable operation under various weather conditions;
  3. Low maintenance or maintenance-free design;
  4. Easy to install, whole unit available;
  5. The structural design is very simple;
  6. Ensure the efficient utilization of the machine;

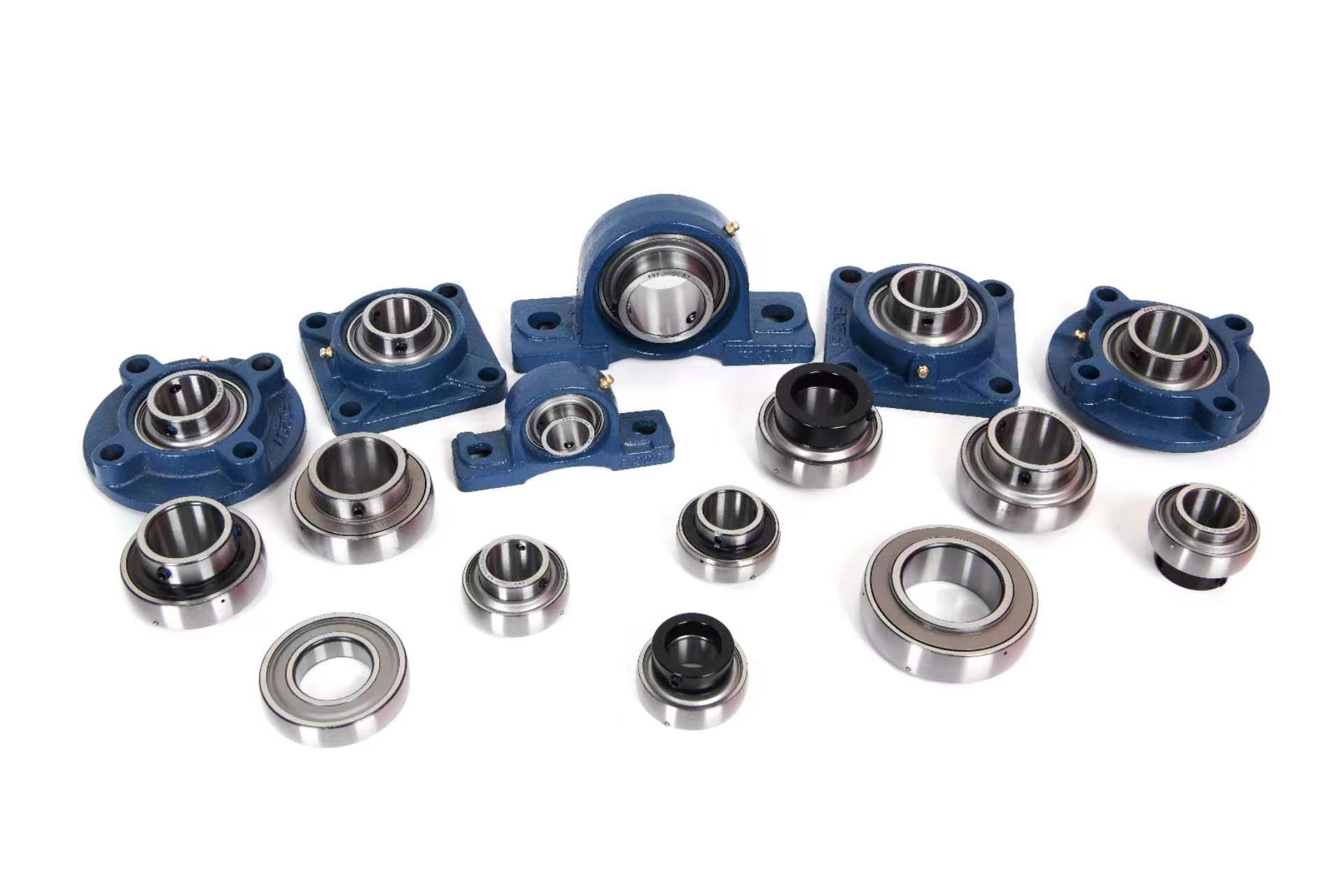

There are many types of equipment in agricultural machinery. They are used in different occasions and purposes, so the bearings used will also be different. Commonly used bearings in agricultural machinery are: agricultural machinery ball bearings (round hole, square hole or hexagonal hole, locking ring, relubricable Oil holes or nozzles), angular contact ball bearings, spherical bearings, needle roller bearings, tapered roller bearings, etc.



What types of bearings are used in the various types of agricultural machinery we commonly use?



List of agricultural machinery bearing models



1.Crusher

6205RS, 6206RS, 6207RS, 6208RS, 6309RS

2.Rice grinder

1206, 1207, 1308, 1310, 1312, 1213, 1217

3.Corn threshing machine

6201RS, 6203RS, 1203, 1204, 1205, 6205RS, 6206RS, 6305RS, 6307RS, 6308RS, UCP205, UCP206, UCP207

4.Wheat seeder

Hexagon socket 6204RS, square eye 6205RS

5.Seeder

6806-2RS, 6807-2RS

6.Corn seeder

6004RS, 6204RS

7.Grain depot conveyor

6203RS, 6204RS, 6205RS, 6207RS, 6208RS, 6307RS, 6308RS

8.Wheel reducer

7207 (30207), 7208 (30208)

9.Well rig gearbox

42211, 42215, 42304, 42306, 42310, 42312
