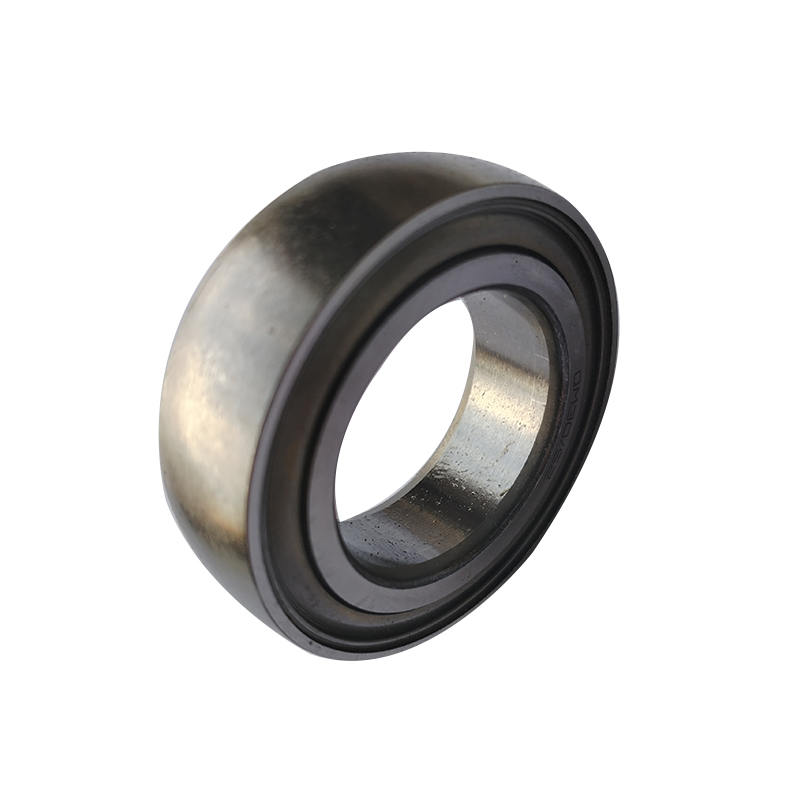

GW210PPB5 DISC HARROW ROUND BORE AGRICULTURE BEARING

niżżel it-tagħbija għal pdf

Dettalji

Tikketti

GW 210PPB5 is Round Bore Series With Spherical Outer Ring – Relubricable Type

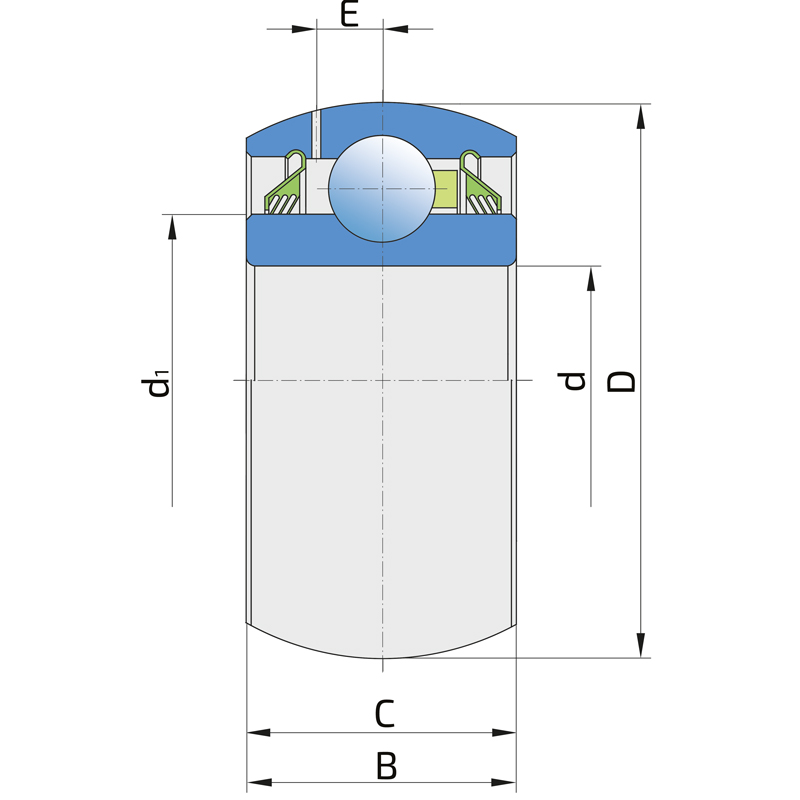

d Bore diameter 45.34 mm
D Outside diameter 90 mm
B Width inner ring 30.18 mm
C Width outer ring 30.18 mm
d1 Outer diameter inner ring 62.5 mm
E Distance from raceway centre to the hole for lubrication 6.6 mm
Cdyn Dynamic load rating 35 kN
Co Static load rating 23.2 kN
kg Mass 0.79 kg
