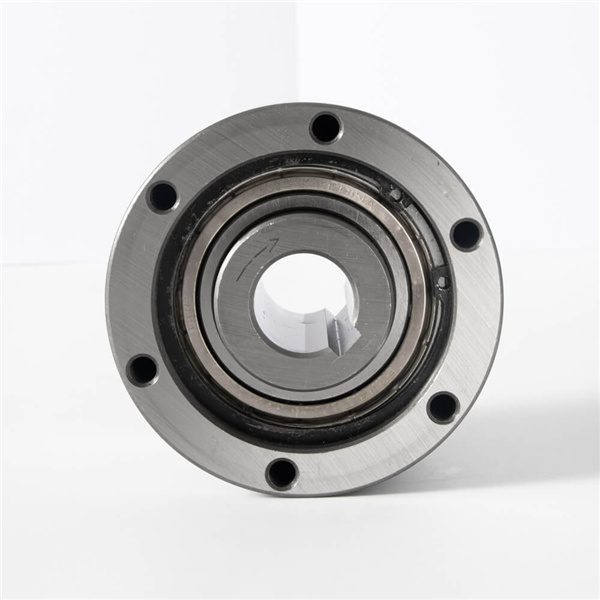

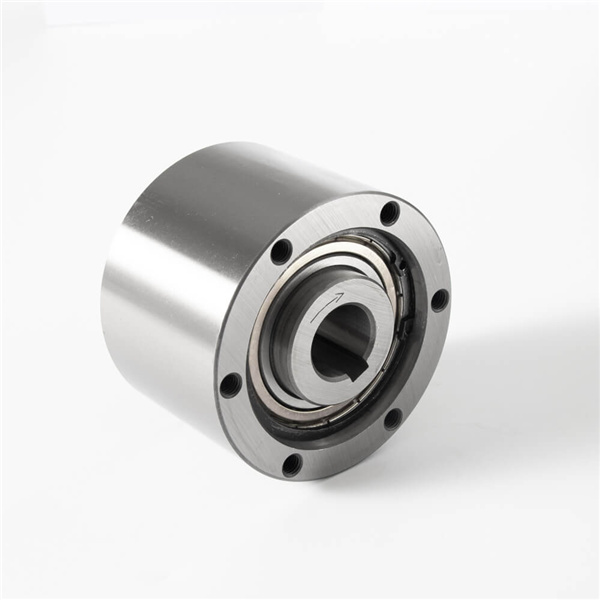

MG MI One Way Cam Clutch Bearing Overrunning Backstop

Primarily Used For General Duty Applications, Overrunning, Back-Stopping And Light Duty Indexing. The MG Model Offers Precise Spring Energizing To Provide Long Overrunning Wear Life.

CONTACT NOW down load to pdf

Details

Tags

Production Introduction
Self Contained Clutch Designed For High Speed Applications.
2. Cam Cage Assembly Engineered For Optimum Performance And Increased Capacity.
3. Two Ball Bearings Included To Support Radial Load And Concentricity Between Races.
4. Positive Contact Lip Or Felt Seals Provided For Grease Or Oil Lubrication.
5. Tapped Holes Are Machined On Ends Of Outer Race For Mounting Auxiliary Components.
6. Metric Bore And Keyway Available.
7. Mounting Accessories Available.

Primarily Used For General Duty Applications, Overrunning, Back-Stopping And Light Duty Indexing. The MG Model Offers Precise Spring Energizing To Provide Long Overrunning Wear Life.

Recommended For High Performance Indexing, Used On Applications Greater Than 150 Strokes Per Minute Or Applications Requiring High Indexing Accuracy. Incorporating A Patented, Low Inertia

Cage And Heavy Duty Energizing Spring For Quick Cam Reaction.

Made With Felt Grease Seals To Minimize Seal Drag For High Speed Inner Race Overrunning Applications. The MO Model Is Delivered With Standard Grease Lubrication.

Intended For High-Speed Outer Race Overrunning, Incorporating A Unique Cam Cage Construction That Uses Centrifugal Force To Minimize Cam Drag .The Driving Speed Of The Clutch Cannot Exceed The Rpm Shown In The Table For The Inner Race.

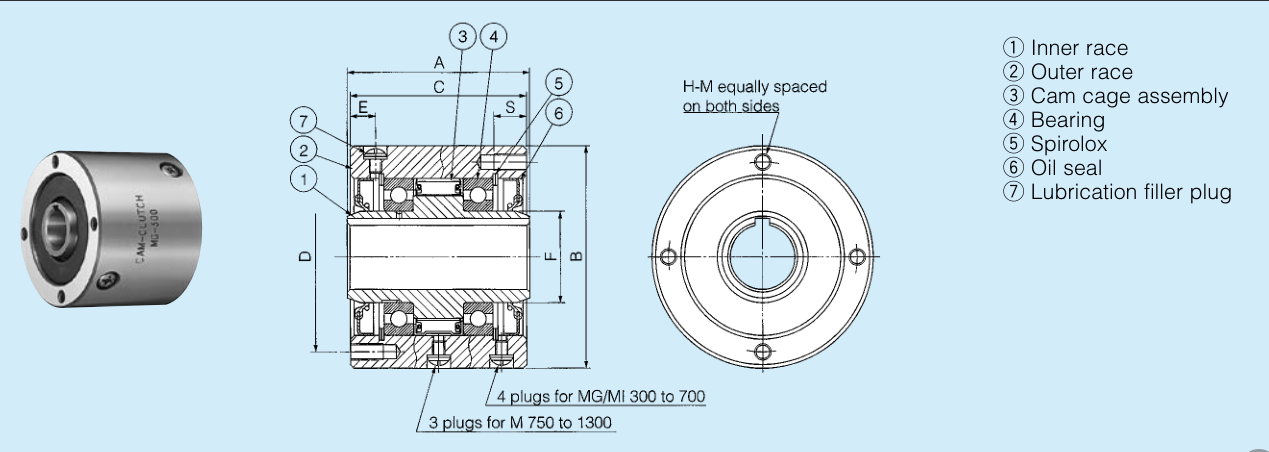

Dimensions and Capacities

Model	Torque Capacity (Nm)	Drag Torque (Nm)	Max. Overrunning (r/min)		Max. Indexing (cycle/min)	Bore Size		A	B	C	PCD	E	F	S	H-M No.of Tapped Holes ×Size×Pitch	Lubrication Filler Plug Size×Pitch	Oil (me)	Weight (kg)
Model	Torque Capacity (Nm)	Drag Torque (Nm)	Inner Race	Outer Race	Max. Indexing (cycle/min)	Dia. (H7)	Keyway	A	(h7)	C	D	E	F	S	H-M No.of Tapped Holes ×Size×Pitch	Lubrication Filler Plug Size×Pitch	Oil (me)	Weight (kg)
MG 300 MI 300	314	0.23 0.31	2800 50	900 _	_ 300	19	5x2	63	77	60	66	10.4	28.5	13	4xM6xP1.0	M6xP1.0	25 50	1.8
MG 400 MI 400	539	0.29 0.38	2600 50	800 _	_ 300	22	5x2	70	88	67	73	10.7	31.7	16	4XM8xP1.25	M6xP1.0	30 60	2.7
MG 500 MI 500	1620	0.51 0.68	2400 50	800 _	_ 300	31.5	7x3	89	108	86	92	12.3	44.4	16	4XM8xP1.25	M6xP1.0	50 100	5.0
MG 600 MI 600	3140	0.85 1.54	2100 30	700 _	_ 300	50	12x3.5	95	136	92	120	12.8	69.8	16	6xM8xP1.25	M6xP1.0	80 160	8.6
MG 700 MI 700	5880	1.70 2.63	1500 30	500 _	_ 300	70	18x6	127	180	124	160	19.8	101.5	20	6xM10xP1.5	M6xP1.0	135 260	19.5
MG 750 MI 750	9500	3.43 4.12	1800 30	600 _	_ 300	85	24x6	153	200	150	175	75	110	25	8xM14xP2.0	M8xP1.25	400 800	37.0
MG 800 MI 800	17600	5.39 8.33	1300 20	475 _	_ 300	110	28x7	158	250	155	220	77.5	140	25	8xM16xP2.0	M8xP1.25	500 1000	46.5
MG 900 MI 900	24500	6.77 9.41	1200 20	400 _	_ 300	135	35x9	165	300	160	265	80	170	32	10xM16xP2.0	M8xP1.25	620 1240	70.5
MG 1000 MI 1000	33800	8.14 12.74	1200 20	325 _	_ 300	160	38x10	188	370	180	325	90	200	32	12xM16xP2.0	M8xP1.25	850 1700	108.5
MG 1100 MI 1100	78400	15.00 22.15	350 20	_ _	_ 150	185	45x14	260	470	250	415	125	260	40	12xM20xP2.5	M12xP1.75	2900 5800	250
MG 1200 MI 1200	95100	17.64 27.54	300 20	_ _	_ 150	200	45x14	260	500	250	440	125	280	45	12xM24xP3.0	M12xP1.75	3000 6000	280
MG 1300 MI 1300	176000	18.72 28.13	250 20	_ _	_ 150	250	56x17.5	280	600	260	530	130	340	50	12xM30xP3.5	M12xP1.75	3800 7600	410
