GW211PPB3 Disc HarrowBearing
  • GW211PPB3 Disc HarrowBearing
  • GW211PPB3 Square Bore Disc Harrow Bearing
  • GW211PPB3 DS211TTR3 Square Bore Disc Harrow Agriculture Bearing
  • GW211PPB3 Square Bore Disc Harrow Agriculture Bearing

GW211PPB3 DS211TTR3 3AS11-1-1/2D1 Square Bore Disc Harrow Agriculture Bearing

Details

Tags

Our heavy duty disc harrow bearings are made with tripple lip seals to protect from corrosive environments. This seal is a one piece shroud cover with three molded contact seals. Standard relubrication feature is drilled hole in groove.



Disc Harrow Bearings are specially designed for disc harrow applications, in agricultural farm machinery, where a robust assembly is necessary to cope with the arduous conditions. Disc Harrow Bearings are available with a square, round or hexagonal bore.

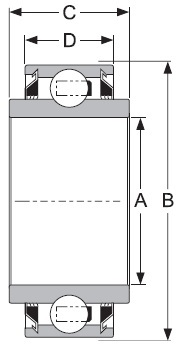

Dimensions:

A:

1-1/2" Suare

B:

100mm Curved Re-Lube

C:

1.312"

D:

1.312"

THIS BEARING UNIT IS ALSO KNOW AS:
BCA/FEDERAL MOGUL: DS211TTR3
FAFNIR/TORRINGTON: GW211PPB3
LINK BELT: 24SG3-211E3
NTN: 3AS11-1-1/2D1
