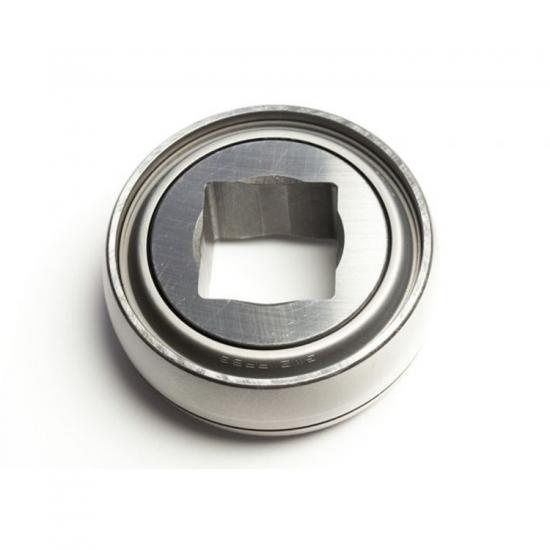

Square Bore Bearing GW208PP17 Specification:
Bearing Number:GW208PP17
OEM No.:DC208TT R17
Brand:Neutral or OEM
Size (mm):29.972 x 85.738 x 36.525 / 30.175
Material GCr15 Chrome steel
Cage:Steel cage
Weight (Kg):0.925
Country of Origin:CHINA
Square Bore Bearing GW208PP17 Features And Benefits:
1.With high quality Chrome steel GCR15, bearing can bear high capacity..
2. High quality Chrome steel GCR15 balls ,th balls have better roundness and long bearing working life.
3. Raceway design,the AG bearing have long life and load carrying capacity.
4. Seal designs ,the bearings can work at different operating conditions, loads and speeds.
Here are some our ag bearing number for your reference:
Bearing NO. | Dimensions(mm) | ||||
H | D | S | B | C | |
W208PP5 | 29.97 | 80 | 36.53 | 18 | |
W208PP6 | 26.13 | 80 | 36.53 | 18 | |
W208PP8 | 29.97 | 80 | 36.53 | 30.18 | |
W208PP9 | 26.13 | 80 | 36.53 | 30.18 | |
W208PP20 | 29.97 | 80 | 36.53 | 18 | |
W211PP5 | 38.89 | 101.6 | 44.45 | 36.53 | |
W208PPB12 | 29.97 | 85.738 | 87.3 | 36.53 | 30.18 |
W208PPB11 | 22.97 | 85.738 | 87.3 | 36.53 | 30.18 |
GW208PP17 | 29.97 | 85.738 | 36.53 | 30.18 | |
GW210PP4 | 29.97 | 90 | 30.18 | 30.18 | |
W210PP4 | 29.97 | 90 | 30.18 | 30.18 | |
GW211PP17 | 38.89 | 100 | 44.45 | 33.34 | |
GW211PP3 | 38.89 | 100 | 33.34 | 33.34 | |
W211PP3 | 38.89 | 100 | 33.34 | 33.34 | |
W216PP2 | 58.57 | 140 | 63.5 | 30 |
