GRAE45-NPP-B
  • GRAE45-NPP-B

GRAE45-NPP-B Radial insert ball bearing

down load to pdf

Details

Tags

Main Dimensions & Performance Data

d
45 mm
 Bore diameter
DSP
85 mm
 Outside diameter
B
30.2 mm
 Width
B1
43.8 mm
 Locking collar total width
Cr
32,500 N
 Basic dynamic load rating, radial
C0r
20,400 N
 Basic static load rating, radial
Cur
970 N
 Fatigue load limit, radial
≈m
0.69 kg
 Weight

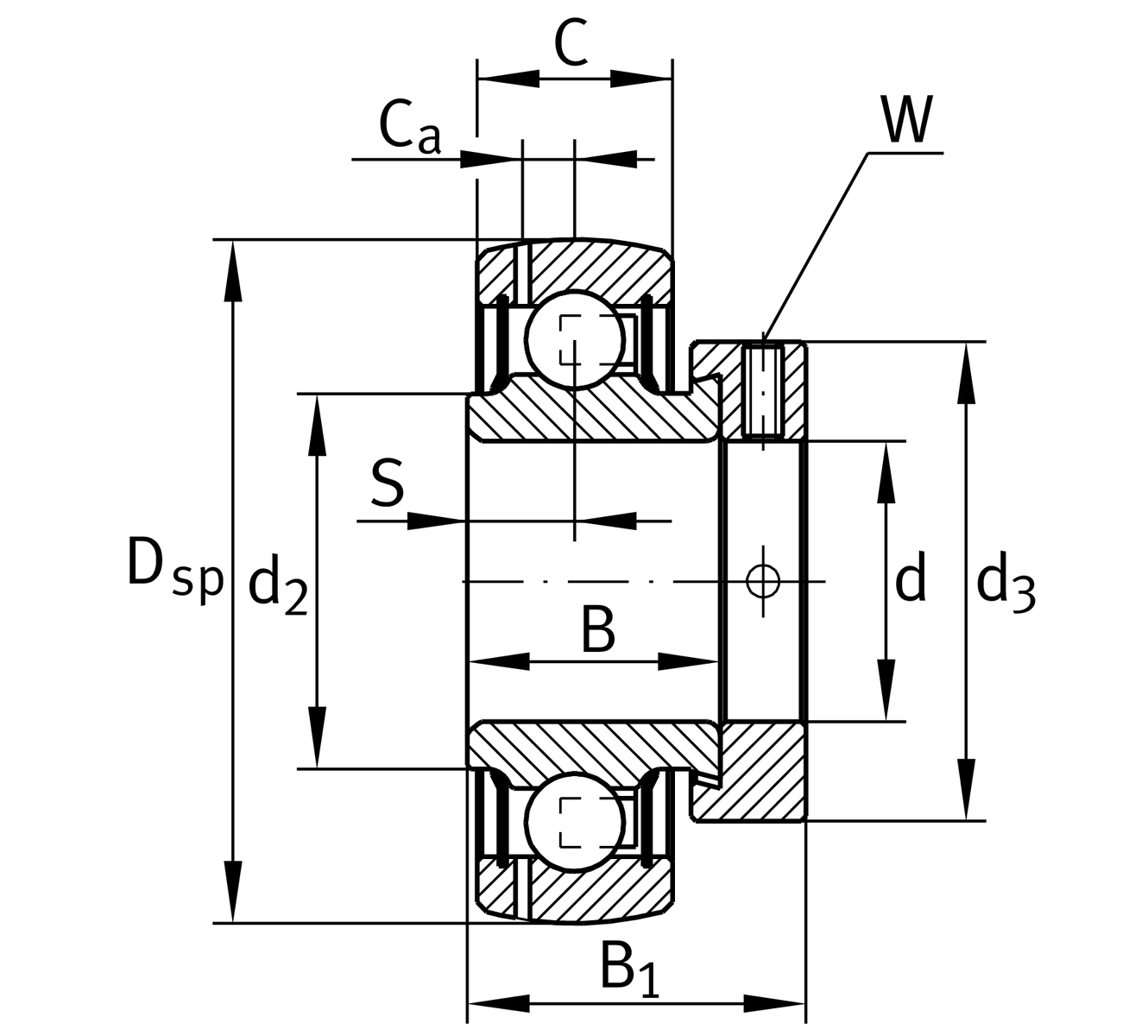

Dimensions
C
22 mm
 Width, outer ring
S
11 mm
 Distance raceway
d2
54.3 mm
 Rib diameter sealing inner ring
Ca
6.4 mm
 Distance to lubrication hole
d3
63 mm
 Outside diameter locking collar/locknut
W
5 mm
 Width of flats
f0
14.1
 Calculation factor
